Mitsubishi Electric CITY MULTI PAC-AH001-1 User Manual

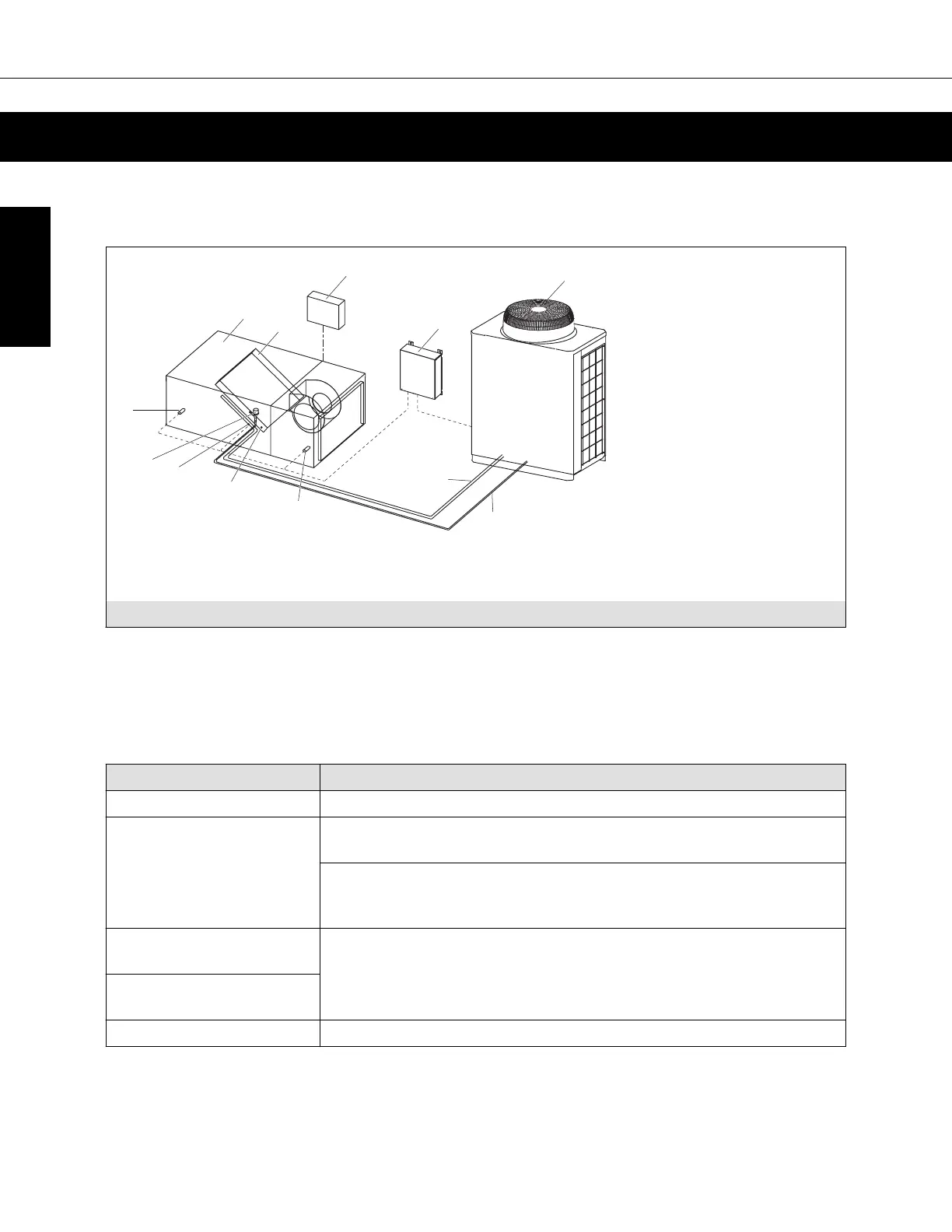

3. System Configuration
3.1 System components
Contro
B
L
H
I
J
K
G
F
A
C
D
E
Ⓐ Air handling unit
controller PAC-AH001-1
Ⓑ Air handling unit (field
supply)
Ⓒ Controller (field supply)
Ⓓ Outdoor unit
Ⓔ Heat exchanger (field
supply)
Ⓕ Gas Pipe (field supply)
Ⓖ Liquid Pipe (field
supply)
Ⓗ LEV Assembly
Ⓘ Thermistor (gas pipe)
Ⓙ Thermistor (liquid pipe)
Ⓚ Thermistor (suction air)
Ⓛ Thermistor (discharge
air)
Fig 3-1
3.2 Selection of the heat exchanger (air handling unit)
3.2.1 Contamination control
Control the contamination to keep proper quality of the models using HFC refrigerant.
Contamination Content
Residual water content The content shall be less than 1.3E-3 oz/gal [10 mg/lit.].
Residual oil content
The low residual oil pipe 5.4E-6 oz/ft [0.5 mg/m] or less shall be used
for heat exchangers.
For long piping connected or piping tended to be stagnated with oil, the
content shall be less than 3.2E-5 oz/ft [3 mg/m]. For other piping,
9.7E-5 oz/ft [9 mg/m] or less shall be applied.
Residual foreign
substance
The content shall be less than 8.2E-5 oz/ft
2
[25 mg/m
2
].
(including residual
machining oil content)
Others No chlorine content shall be found inside the refrigerant circuit.
3.2.2 Specifications of the heat exchanger
Refer to the LEV Kit applications guide for information on heat exchanger selection.
PAC-AH001-1
Specifications are subject to change without notice. 16
