Transmission cables ME Remote controller
cables
MA Remote
controller cables
Remarks
Max length: 656 ft [200 m]
When 33 ft [10 m] is
exceeded, use cables with
the same specification as
transmission cables.
Max length: 656 ft
[200 m]
Maximum length of
transmission lines for
centralized control and indoor/
outdoor transmission lines
(Maximum length via indoor
units): 1640 ft [500 m] MAX
The maximum length of the
wiring between power supply
unit for transmission lines (on
the transmission lines for
centralized control) and each
outdoor unit and system
controller is 656 ft [200 m].
a
Connected with simple remote controller.CVVS, MVVS : PVC insulated PVC jacketed shielded control cable; CPEVS : PE insulated
PVC jacketed shielded communication cable; CVV : PVC insulated PVC sheathed control cable

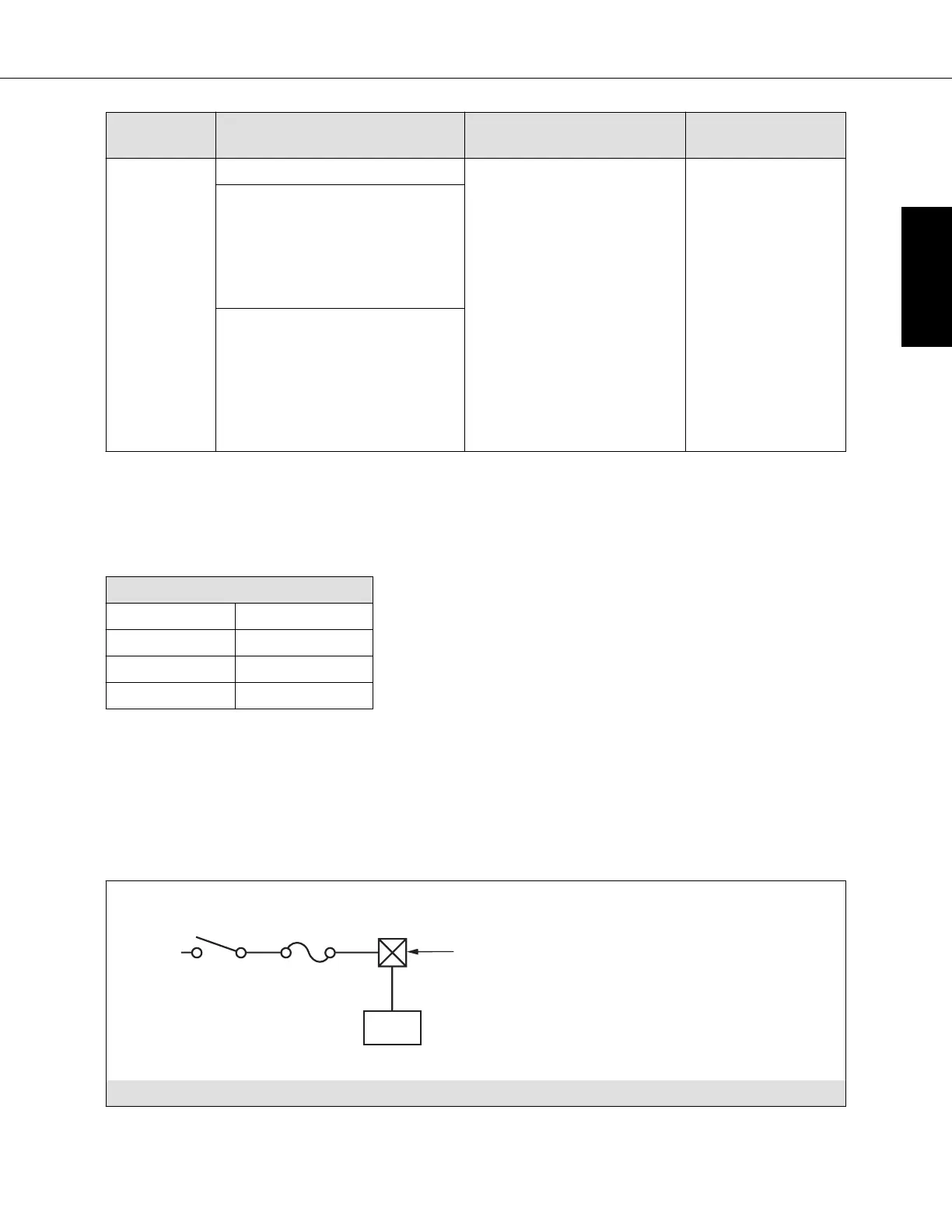

7.1 Power supply wiring
Input Power Specifications
Rated Voltage AC 208 / 230 V
Hz 60 Hz
Phase 1
Rated Current 0.055 A
• Power supply cords of appliances shall not be lighter than design 227 IEC 53
• Power cable size: AWG 16 - 14 [1.5 - 2.5 mm2]
• Be sure to ground the control box to the power supply ground at the control box power supply terminal
block
• A switch with at least 1/8 in [3mm] contact separation in each pole shall be provided by the Air
conditioner installation
① Switch 16 A
② Overcurrent protection 16 A
③ Indoor unit
④ Pull box
Fig 7.1
PAC-AH001-1
31 © 2017 Mitsubishi Electric US, Inc.
ENGLISH
