Check code
1501
(U2)
Refrigerant shortage trouble
●Diagnosisofdefectives
MakesuretoturnthepowerOFFbeforeconnecting/disconnectinganyconnectors,orreplacingboards.
Diagnosis Remedy
Chart 2 of 2
*Forthevoltage,referto"8-6.HOW
TO CHECK THE COMPONENTS".
No
No
No
Yes
Yes
Yes
Yes
Yes
No
Continuedfromthepreviouspage

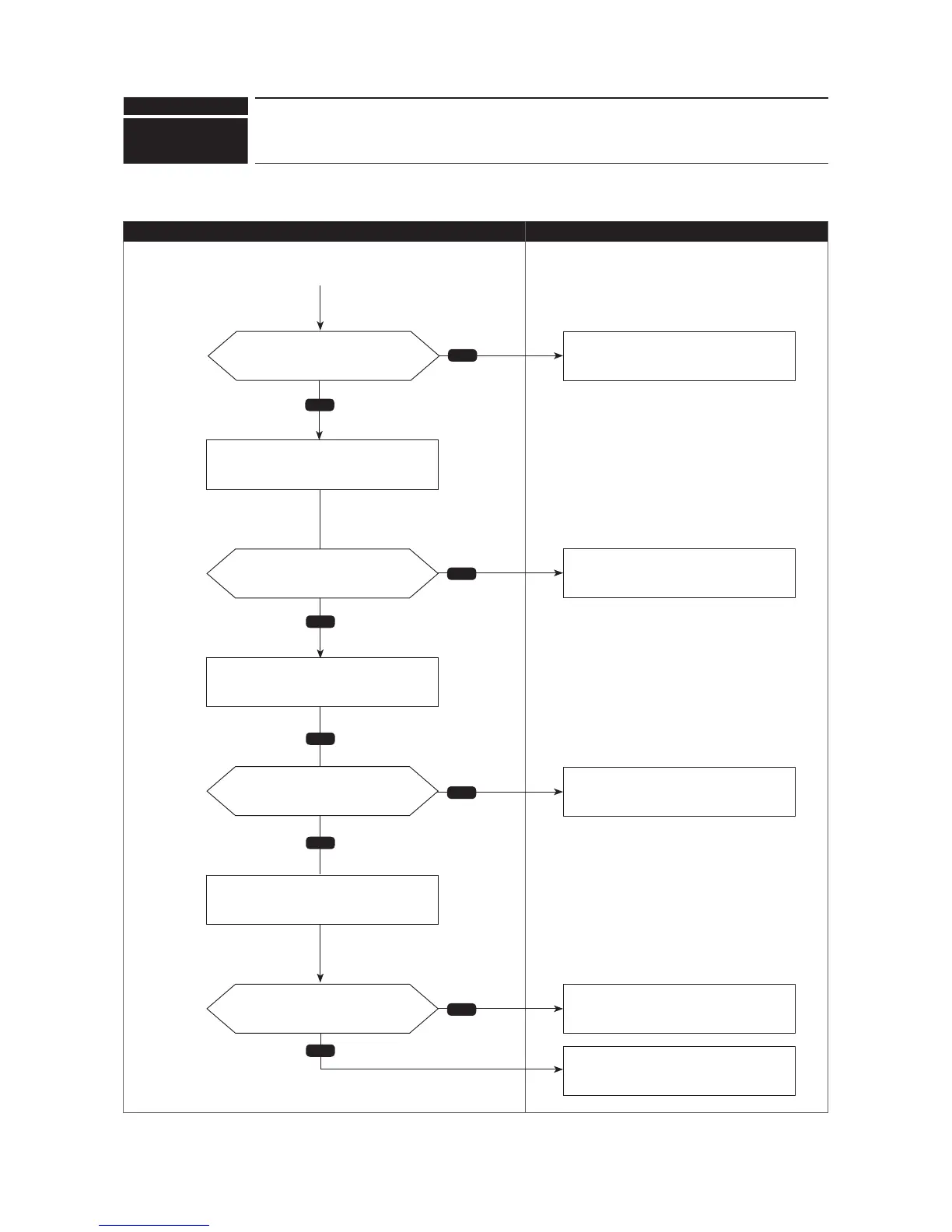

Is there a voltage(*) detected?
Is the voltage normal value?
Is it free from any trace of over-
heating or burning?
Is there a resistance detected?
Replacetheoutdoormulticontrollercircuit
board.
Replacethe63HS.
ReplacetheindoorLEV.
Replacetheindoorcontrollerboard.
Check the 63HS voltage.
Checkthevoltageandappearanceofthe
outdoor multi controller circuit board.
DisconnecttheindoorLEVwiringand
check the resistance.
Is there a resistance detected? Replacethethermistor.
60
61
OCH668B
