7 Inspection

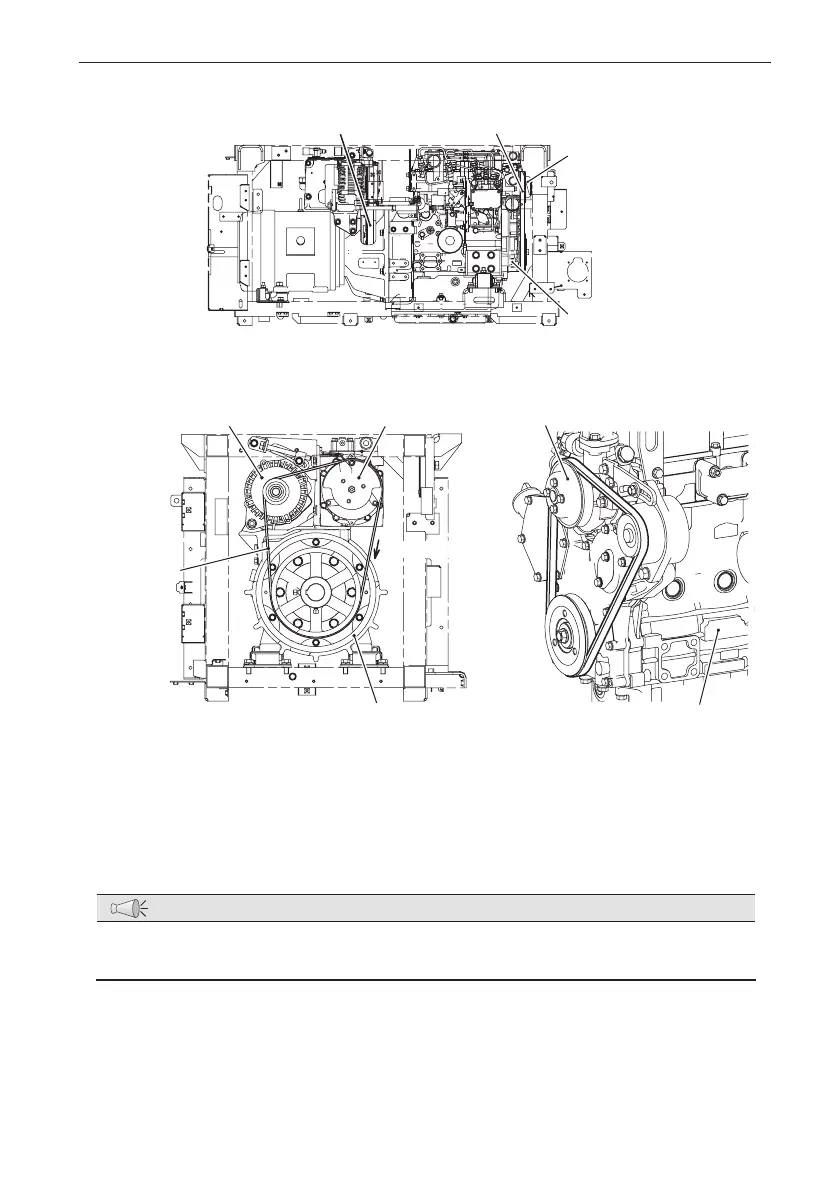

Inspection of moving sections

Motor Engine

Alternator

Compressor Water pump

Belt running direction

Compressor

belt

● Detail of compressor belt ● Detail of water pump belt

Compressor belt

Water pump belt

Water pump

Engine



Visually inspect the compressor belt and the water pump belt for defects

such as scratch, crack or one-sided wear, etc.



Check the moving sections for interference with other parts.

NOTE

●

When there is any abnormal condition or any slack of the belts, surely

contact your nearest dealer.
