7 Inspection
1
5
2
6
3
7
9
4
8
10
Inspection of condenser coil
1

Check the coil for fouling with dust.
2

When the coil is fouled, wash it with a soft brush and water.
NOTE
●
Dirty coil could deteriorate the refrigeration capacity or cause malfunction
of protective devices, which may disable the operation of refrigeration unit.
Clean the coil at regular intervals.

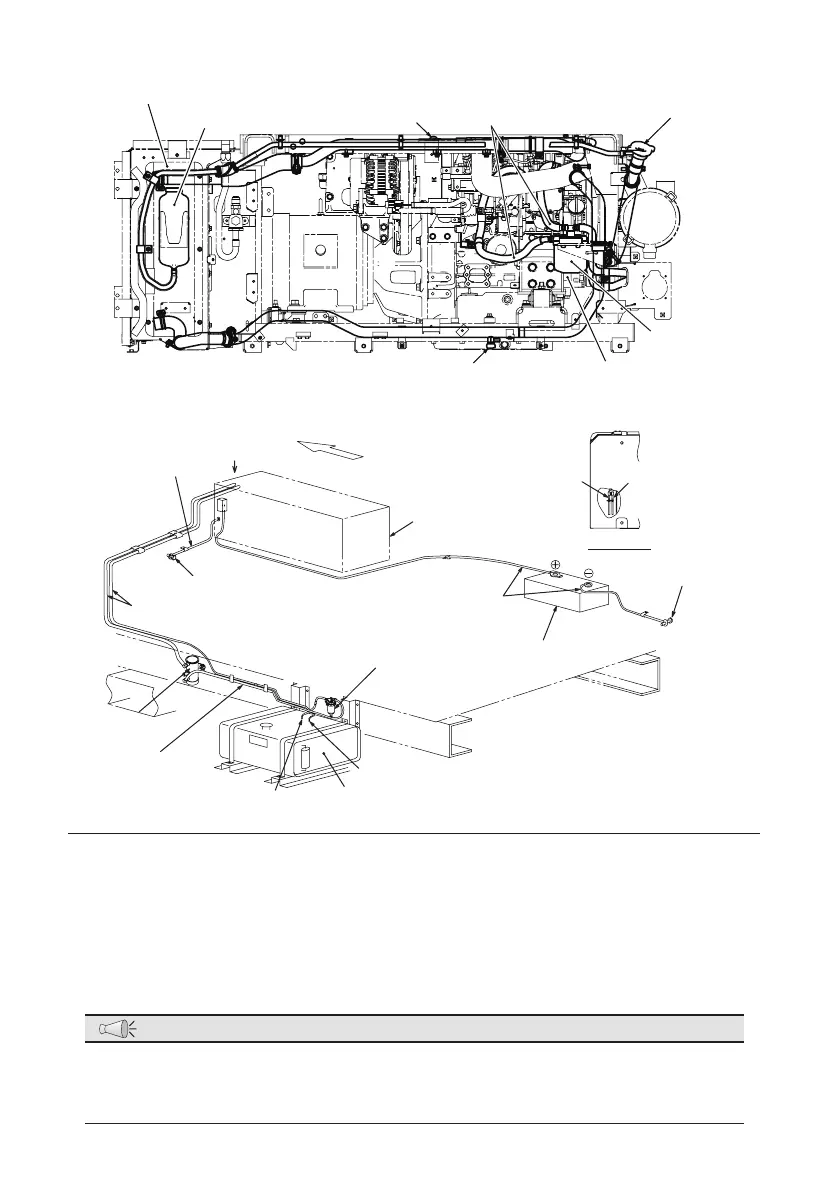

■Cooling water piping and engine fuel piping in the condensing unit
■Engine fuel piping and battery wiring
Cooling
water inlet
Radiator & condenser
Reservoir tank
Air vent valve
Fuel hose
Fuel lter
Engine
Water drain cock
Cable
(Battery)
(Driving direction)
Chassis earth bolt
Fuel hose
Fuel pump
Fuel hose
Fuel outlet pipe joint
Fuel tank
Fuel tank return-oil pipe joint
Cable (Battery)
Water separator
Battery
Chassis earth bolt
View "A"
Condensing unit
Fuel lter joint
Return-oil pipe joint
A
