5 - 175
MELSEC-A

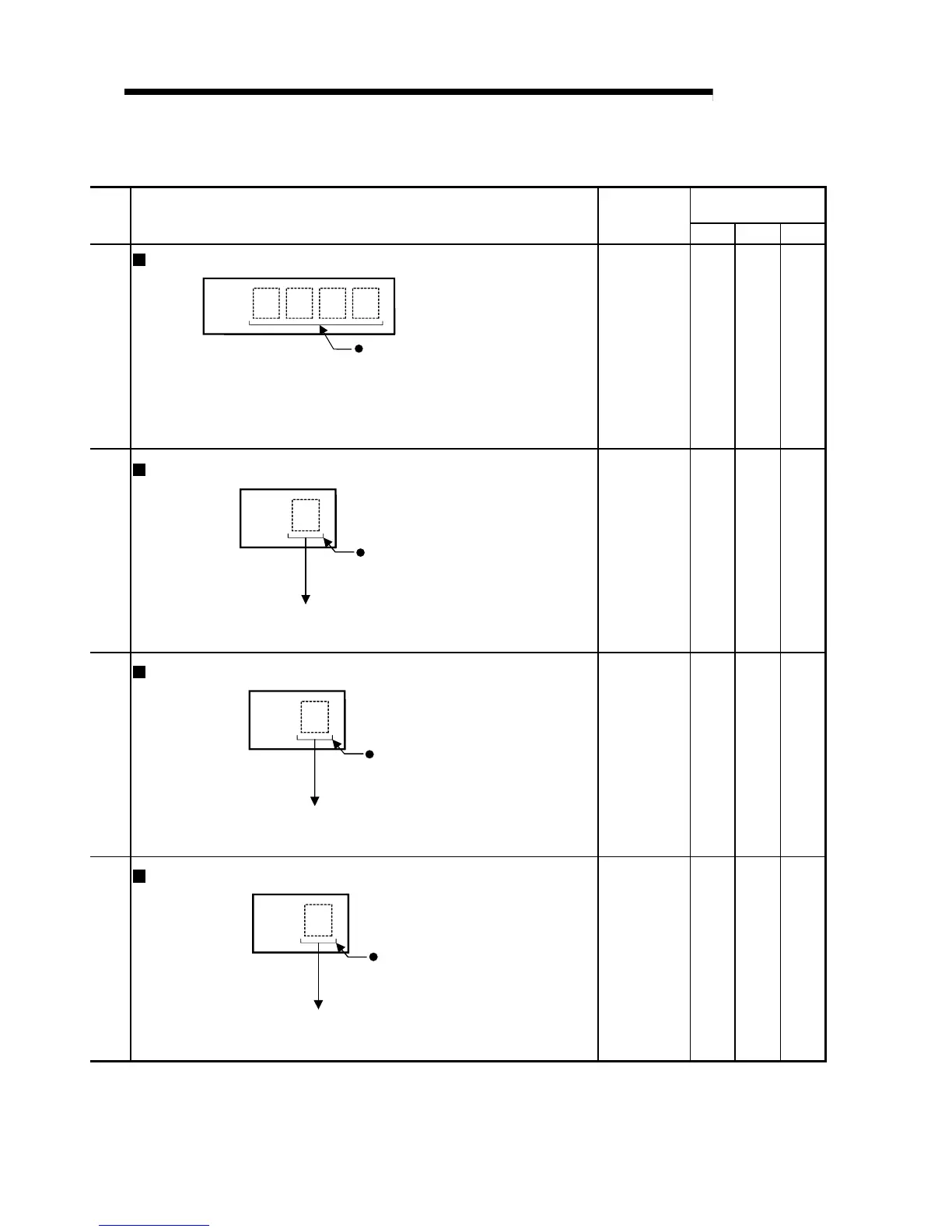

5 DATA USED FOR POSITIONING CONTROL
Storage buffer
memory address
Setting value Default value
Axis 1 Axis 2 Axis 3
Set with a decimal.
K
Positioning data No.
Setting value
: Positioning data No.
: Block start designation
: Indirectly specification
: Machine zero point return
: High-speed zero point return
: Current value change
· 1 to 600
· 7000 to 7010
· 8001 to 8050
· 9001
· 9002
· 9003
0 1150 1200 1250
Set with a decimal.
K
1
Error reset request
Setting value
After the axis error reset is completed, "0" is stored by the OS.
(Indicates that the axis error reset is completed.)
Axis 1: Axis error is reset.
(Set by sequence program)
0 1151 1201 1251
Set with a decimal.
K
1
Restart command
Setting value
After restart acceptance is completed, "0" is stored by the OS.
(Indicates that the restart acceptance is completed.)
1: Restarts
(Set by sequence program)
0 1152 1202 1252
Set with a decimal.
K
1
M code OFF request
Setting value
After the M code ON signal turns OFF, "0" is stored by the OS.
(Indicates that the OFF request is completed.)
1: M code ON signal turns OFF
(Set by sequence program)
0 1153 1203 1253
