Mitsubishi A1SD75M3

11 - 21
MELSEC-A
11 MANUAL CONTROL
11.3.2 Manual pulse generator operation execution procedure

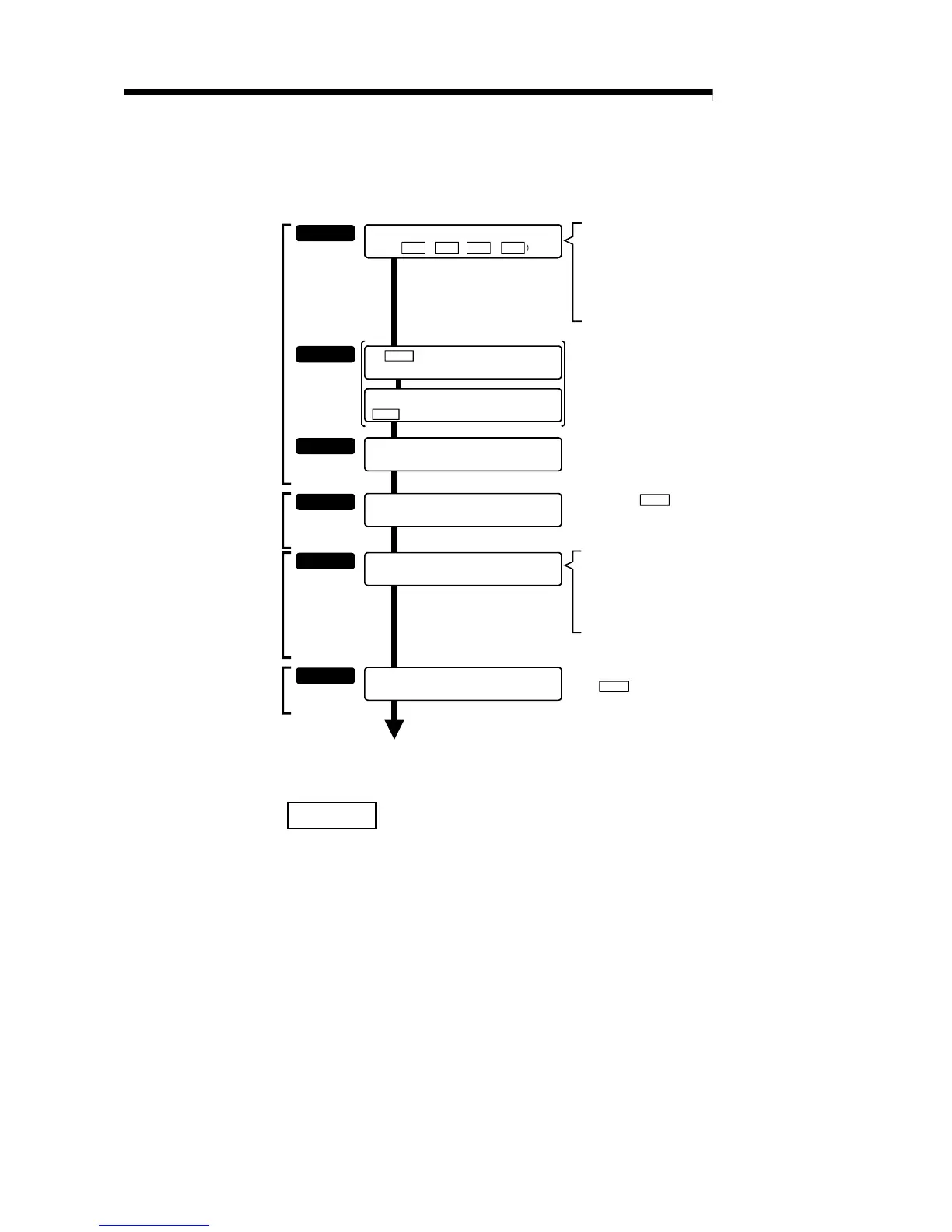

The manual pulse generator operation is carried out by the following procedure.
* Write the sequence program created in STEP 1 and
STEP 2 to the PLC CPU using the GPP function
software package.
* Using the GPP function software package, set the control
data and create a sequence program to enable/disable
the manual pulse generator operation. (Set the control data
in the AD75 buffer memory using the TO command.)
* One of the following two methods can be used.
<Method 1>
Directly set (write) the parameters in the AD75 using the
AD75 software package.
<Method 2>
Set (write) the parameters from the PLC CPU to the AD75
using the sequence program (TO command).
STEP 1
Manual pulse
generator operation
start
End of control
STEP 2
STEP 3
STEP 4
STEP 5
Issue a command to enable the manual pulse generator
operation, and input the signals from the manual pulse
generator.
End the input from the manual pulse generator,
and issue a command to disable the manual pulse
Manual pulse
generator operation
stop
STEP 6
Monitor the manual pulse generator operation.
Preparation
Refer to Chapter 5
and section 11.3.3.
Refer to section
11.3.4.
Write the sequence program to the PLC CPU.
* One of the following two methods can be used.
<Method 1>
Monitor using the AD75 software package.
<Method 2>
Monitor using the GPP function software package.
Monitoring of the
manual pulse
generator operation
Set " Cd. 23 Manual pulse generator 1 pulse input
magnification". (control data setting)
Create a sequence program in which the enable/disable is
(" Cd. 22 Manual pulse generator enable flag" setting.)
set for the manual pulse generator operation.
* Stop operating the manual pulse generator, and write "0"
in " Cd. 22 Manual pulse generator enable flag".
* Write "1" in " Cd.22 Manual pulse generator enable
flag", and operate the manual pulse generator.
Set the parameters
to
)
Pr.1 Pr.23 Pr.100 Pr.109
,to
REMARK
•
Mechanical elements such as limit switches are considered as already installed.
•
Parameter settings work in common for all control using the AD75.
