4 - 12
MELSEC-A
4 INSTALLATION, WIRING AND MAINTENANCE OF THE PRODUCT
4.3.2 Wiring the external device connection connector pins
The pins for the external device connection connector are wired in the following
manner.
(1)
(2)
(3)
Disassembling the connector section
Connecting the connector and wire
Assembling the connector section
..... Disassemble the connector section,
and remove the connector.
.....
Assemble the connector section.
.....
Solder the wire onto the connector pin.

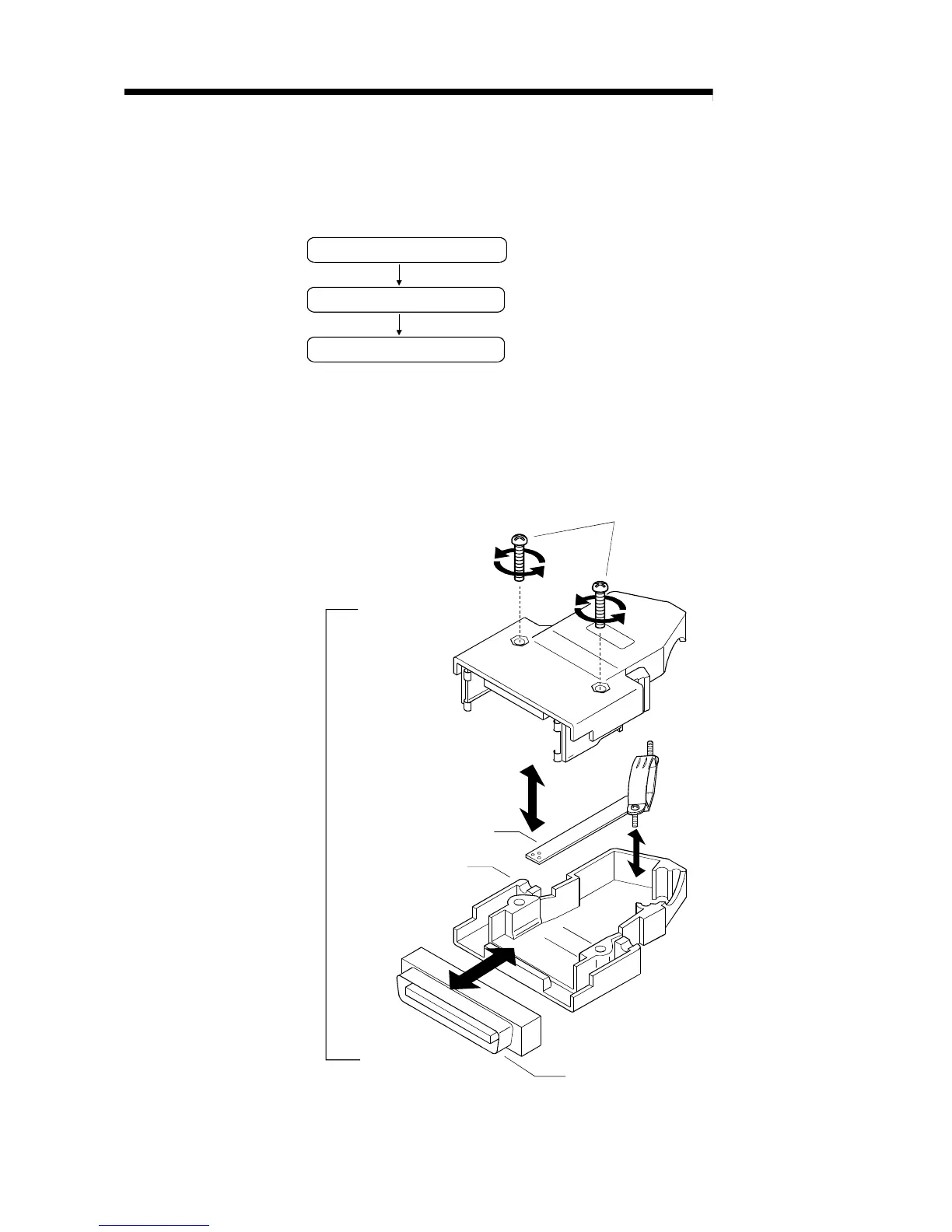

(1) Disassembling the connector section
(a) Loosen and remove screw A.
(Take care not to lose the screw and nut.)
(b) Open the connector cover from the connector side.
(c) Remove the connector and cable fixture.
A
Connector
section
Cable fixture
Connector cover
Connector
To Next Page
