EMC AND LOW VOLTAGE DIRECTIVES9.

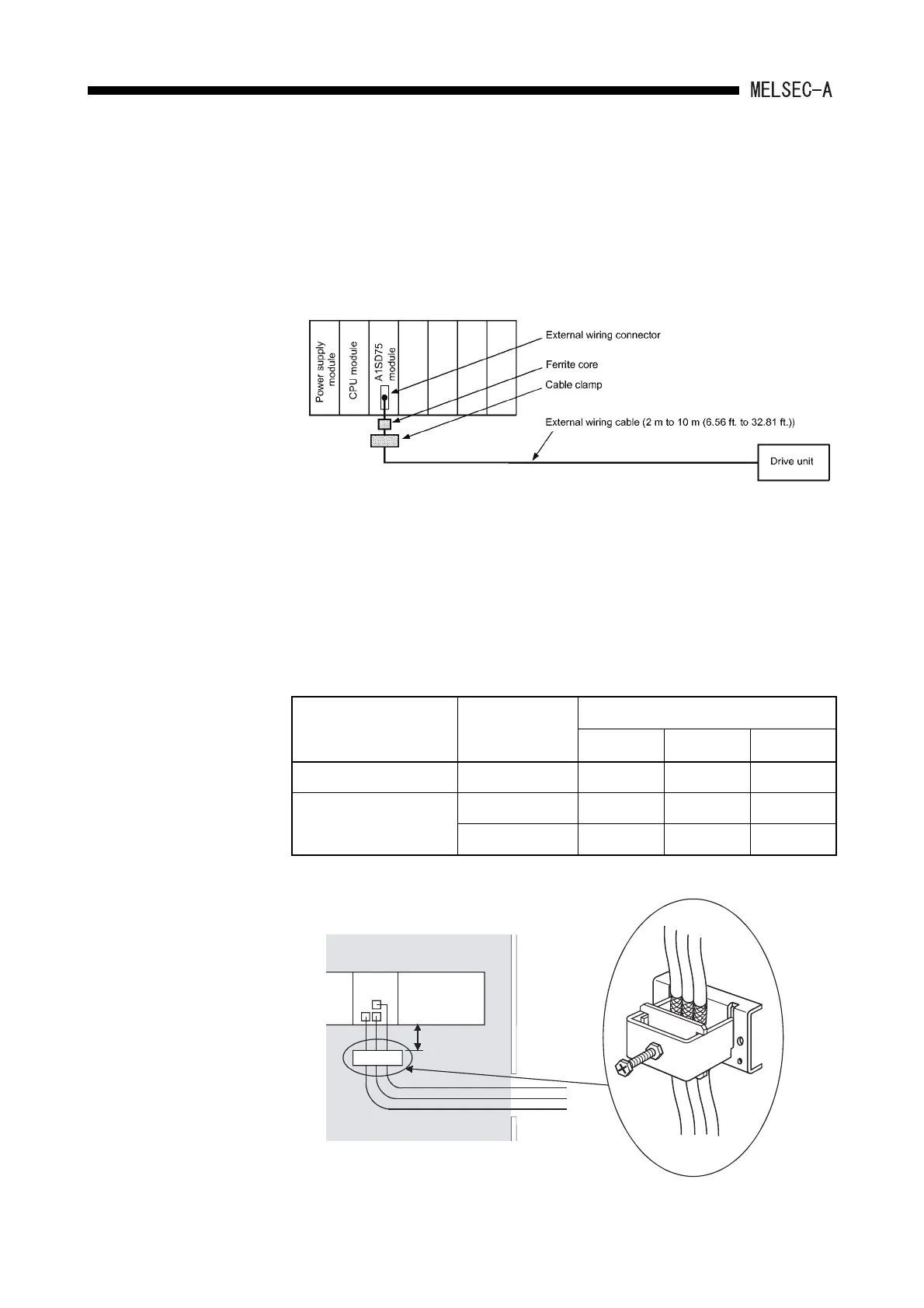

(b) When wiring with cable that exceeds 2m (6.56ft.), but is 10m (32.81ft.) or less
• Ground the shield section of the external wiring cable with the cable clamp.
(Ground the shield at the closest location to the A1SD75 external wiring
connector.)
• Install a ferrite core.
• Wire the external wiring cable to the drive unit and external device with the
minimum distance of cable.
(c) Ferrite core and cable clamp types and required quantities
• Cable clamp
• Ferrite core
• Required quantity
(d) Cable clamp mounting position
Type : AD75CK (Manufactured by Mitsubishi Electric)
Type : ZCAT3035-1330 (TDK ferrite core)
Contact: TDK Corporation
Cable length Prepared part
Required Qty
1 axis 2 axes 3 axes
Within 2m (6.56ft.) AD75CK 1 1 1
2m (6.56ft.) to 10m (32.81ft.)
AD75CK 1 1 1
ZCAT3035-1330 1 2 3
Inside control panel
A1SD75
AD75CK
20 to 30cm
(7.87 to 11.81inch)
