Mitsubishi A2SHCPU (S1) User Manual

6 - 9
6. BASE UNIT AND EXTENSION CABLE
6.3 Installation and Removal of DIN Rail
Each of the main and extension base units is supplied with a DIN rail hook as standard.
The following explains how to install the DIN rail.
(1) Applicable DIN rail type (JIS C 2812)
TH35-7.5Fe
TH35-7.5Al
TH35-15Fe

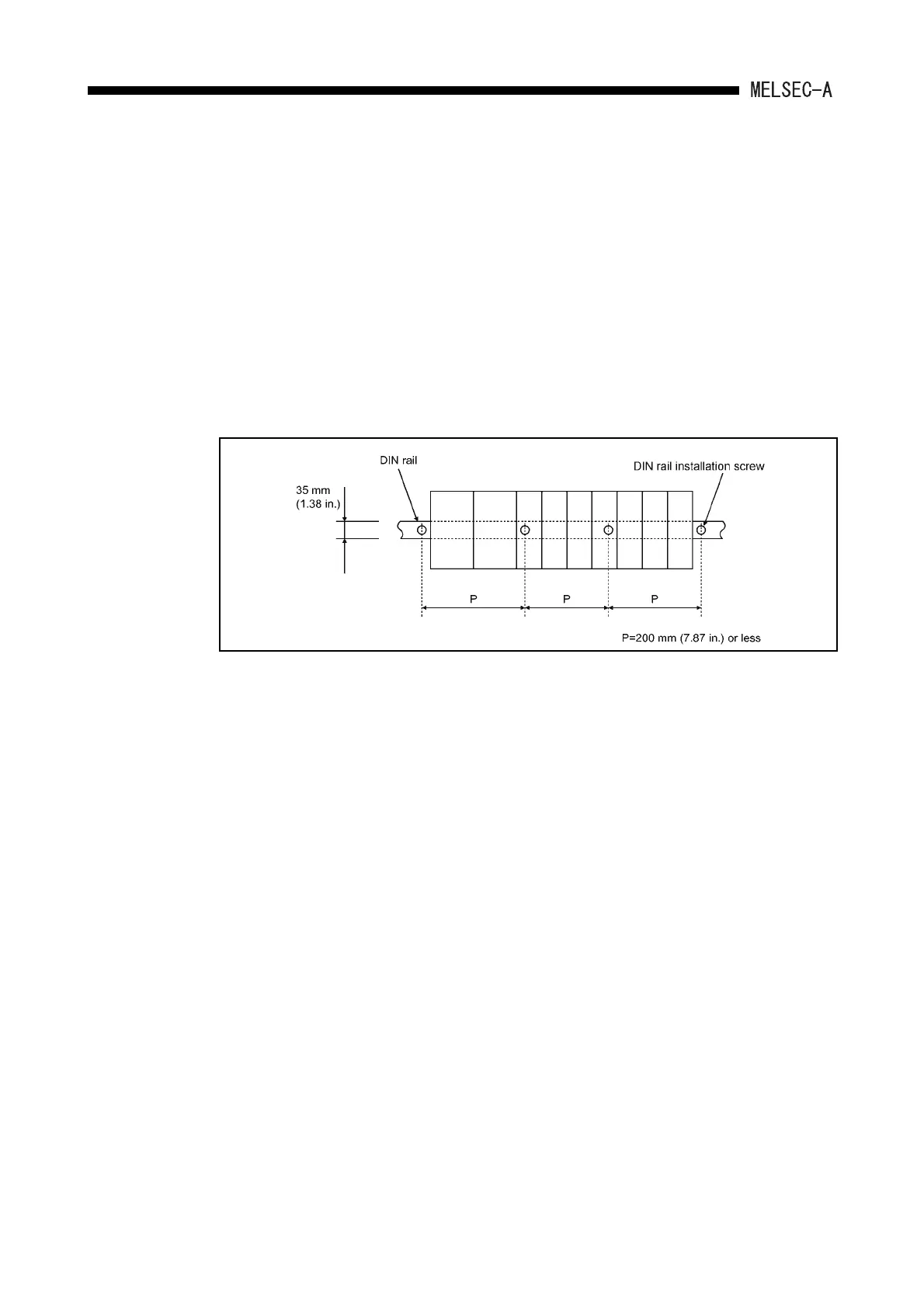

(2) DIN rail installation screw pitch
When using the TH35-7.5Fe or TH35-7.5Al type DIN rail, tighten the rail-installation
screws by a pitch of 200mm or less to ensure the strength.
