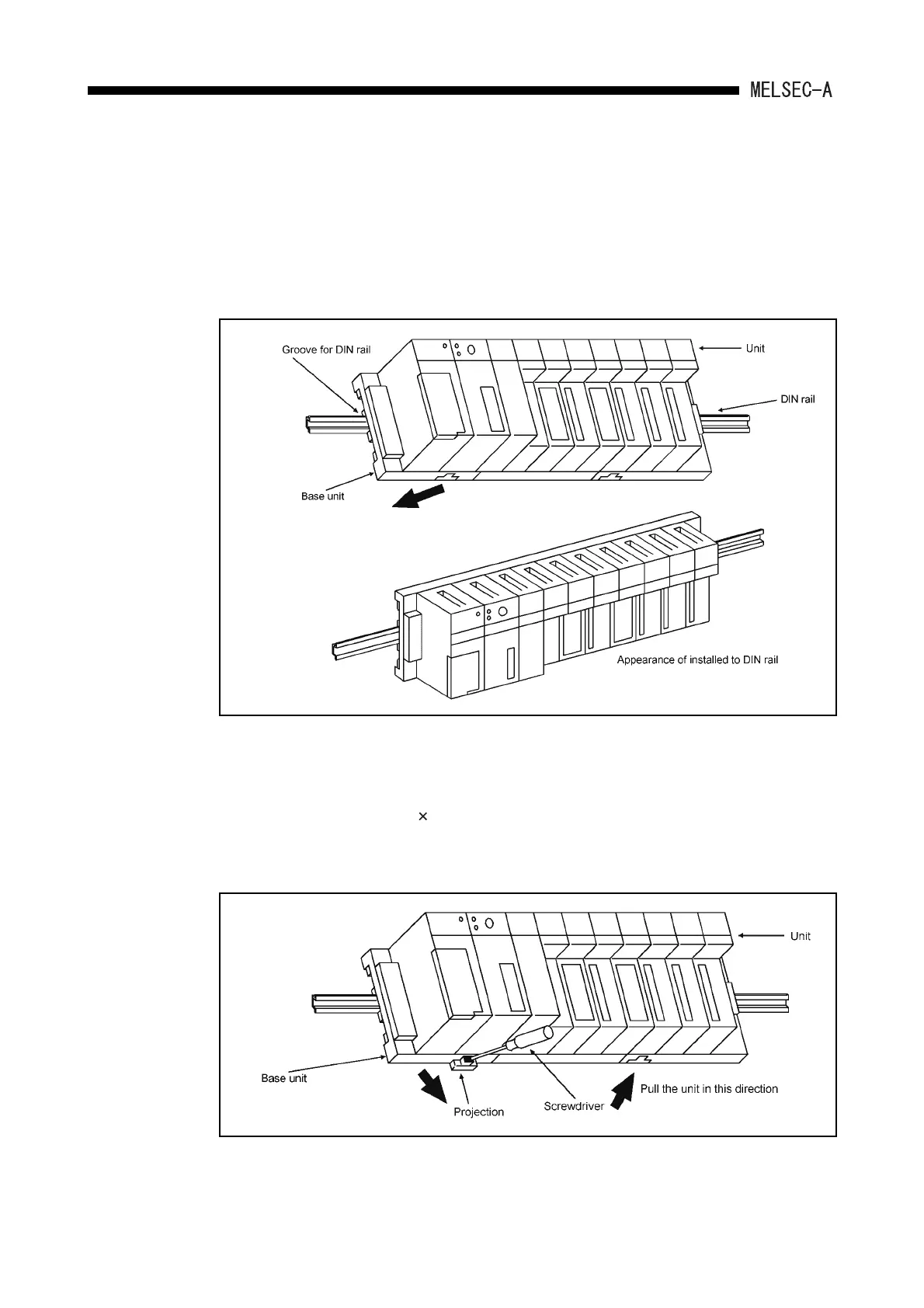

(3) Installing to and removing from the DIN rail
(a) Installing the unit to the DIN rail
The base unit is installed to the DIN rail as follows:
(b) Removing the unit from the DIN rail
The base unit is removed from the DIN rail as follows:
[1] Engage the upper side groove on the base unit with the upper part of the
DIN rail.
[2] Press the base unit to the DIN rail to fix them.
[1] Pull out the projection on the bottom of the base unit with the flat-head
screwdriver (6 100).
[2] With the projection pulled out, pull the base unit to remove it from the DIN
rail.
