Mitsubishi CP710E User Manual

9
4. Connection with external equipment
The functions of this unit can be set with the menu screens displayed on the monitor.
1 1
1 1
1 Connection with Monitors Page 9
Explains how to connect with a monitor.
2 2
2 2
2 Connection with VIDEO/S-VIDEO (Y/C separate VIDEO) signal equipment Page 10
Explains how to connect with a video signal equipment.
Explains how to connect with a S-video signal equipment.
11
11

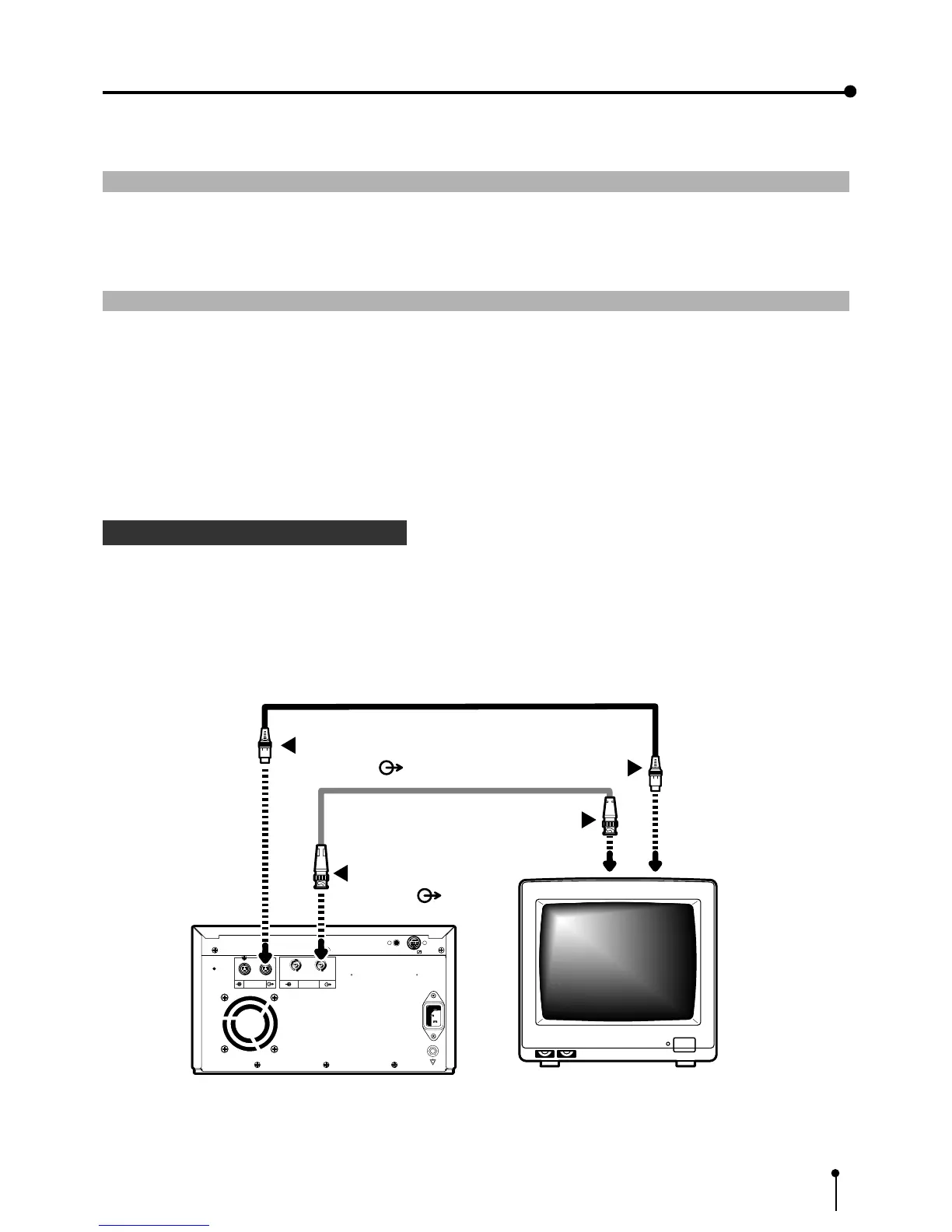

1 Connection with Monitors
Connect this unit with a monitor to check the images to be printed and the images stored in memory.
The following example shows the connection with a video signal and a S-video signal equipment.
Connect with the necessary signal equipment.
When connecting the unit with a monitor, make sure to set the power of each equipment to "OFF".
S-VIDEO
REMOTE
AC LINE
VIDEO
1 2
To S-VIDEO OUT terminal
S-VIDEO ( )
To S-VIDEO IN terminal
To VIDEO OUT terminal
VIDEO ( )
To VIDEO IN terminal
Monitor
VCP
