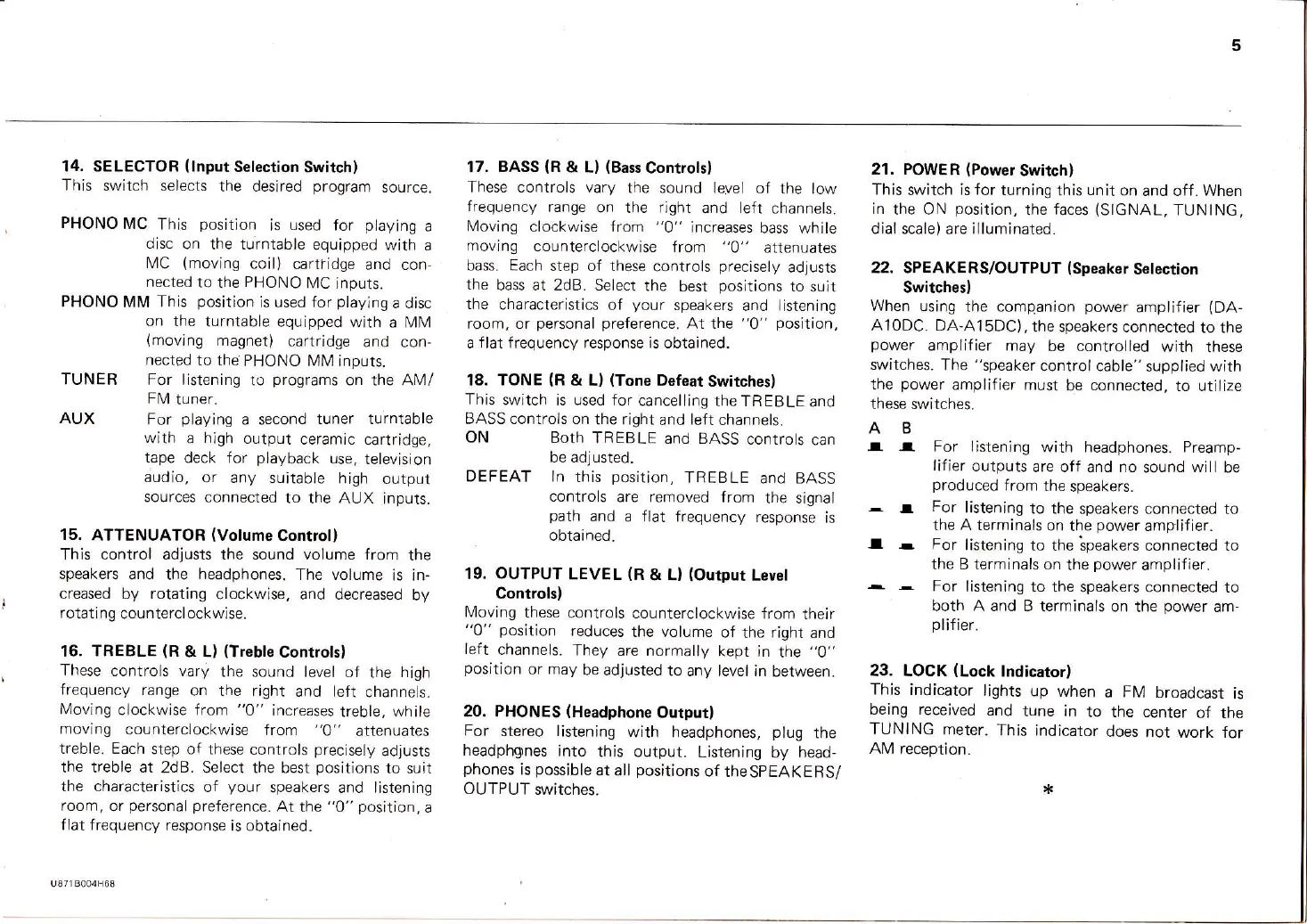

14. SELECTOR
(lnput
Selection
Switch)
This switch selects
the desired
program
source.
PHONO
lVlC
This
position
is
used
for
playing
a
disc
on the
turntable equipped with
a
MC
(moving
coil) cartridge
and con-
nected
to
the
PHONO
MC inputs.
PHONO
MM
This
position
is used for
playing
a disc
on the
turntable equipped
with a l\,4M
(moving
magnet)
cartridge
and con-
nected
to the
PHONO MM inputs.
TUNER For listening
to
programs
on the AN,4/
FN,4
tuner.
AUX
for
playing
a second tuner
tur,lrable
with
a
high
output
ceramic
cartridge,
tape deck for
playback
use,
television
audio,
or any
suitable high
output
sources
connected
to the AUX
inputs.
15.
ATTENUATOR
(Volume
Control)
This control adjusts the sound volume from
the
speakers
and the
headphones.
The volume
is
in-
creased by rotating
clockwise, and decreased
by
rotati ng
countercl
ockwise.
16. TREBLE
(R
& L)
(Treble
Controls)
These
controls vary
the sound
level of
the
high
frequency
range
on
the
right
and left
channels.
lVoving
clockwise from
"0"
increases
treble, while
movinq
counterclockwise
from
"0"
attenuates
treble. Each
step of these
controls
precisely
adjusts
the treble at
2dB. Select the best
positions
to suit
the characteristics
of
your
speakers and listening
room,
or
personal
preference.
At the
"0" position,
a
flat frequency respolse
is
obtained.
17.
BASS
(R
& L)
(Bass
Controls)
These controls vary
the
sound level of
the low
frequency
range
on the right
and
left
channels.
l\loving
clockwise from
"0"
increases
bass while
moving
counterclockwise from
"0"
attenuates
bass. Each
step of these
controls
precisely
adjusts
the
bass at 2dB. Select
the
best
positions
to
suit
the
characteristics
of
your
speakers
and listening
room, or
personal preference.
At the
"0"
position,
a flat frequency response is obtained.
18. TONE
(R
& L)
(Tone
Defeat
Switches)
This
switch is used for
cancelling
the TREBLE
and
BASS controls on
the rioht
and
left
channels.
Both TREBLE
and BASS
controls
can
be adjusted.
ln this
position,
TREBLE
and BASS
controls
are removed from
the siqnal
path
and
a
flat trequency
response
is
obtained.
21. POWER
(Power
Srvitch)
This
switch is
for
turning
this
unit
on and off. When
in
the ON
position,
the
faces
(SlcNAL,
TUNING,
dial scale)
are
iiluminated.
22. SPEAKERS/OUTPUT
(Speaker
Selection
Switches)
When
using
the
companion
power
amplifier
(DA,
A'ioDC. DA'A1sDC),
the speakers connected
to the
power
amplifier may
be controlled
with
these
switches. The
"speaker
control cable"
supplied with
the
power
amplifier must
be
connected,
to utilize
these switches.
AB
t r For
listening
with headphones. Preamp"
lifier
outputs
are off
and
no
sound
will
be
produced
from
the
speakers.
^
I
For
listening
to the
speakers connected to
the A terminals
on the
power
amplifier.
L
r For
listening
to the ipeakers connected to
the B terminals on
the
power
amplifier.
.-
^
For
listening to
the
speakers
connected to
both A and B
terminals on the
power
am-
plifier.
23. LOCK
(Lock
lndicator)
This
indicator
lights
up when
a
FlVl
broadcast
is
being
received
and
tune in
to the center
of the
TUNING
meter.
This indicator
does
not work for
AN4 reception.
ON
D EFEAT
19. OUTPUT
LEVEL
(R
& L)
(Output
Levet
Controls)
Moving
these
controls counterclockwise
from
their
"0" position
reduces
the volume
of
the
right
and
left
channels.
They
are normally
kept in
the
,,0"
position
or
may
be adjusted
to any level in
between.
20.
PHONES
(Headphone
Ourputl
For
stereo listening
with headphones.
plug
the
headphgnes
into
this output.
Listening
by
head-
phones
is
possible
at all
positions
of theSPEAKEBS/
OUTPUT
switches-
