Mitsubishi FUEL User Manual

GDI -
Injector
13I-133

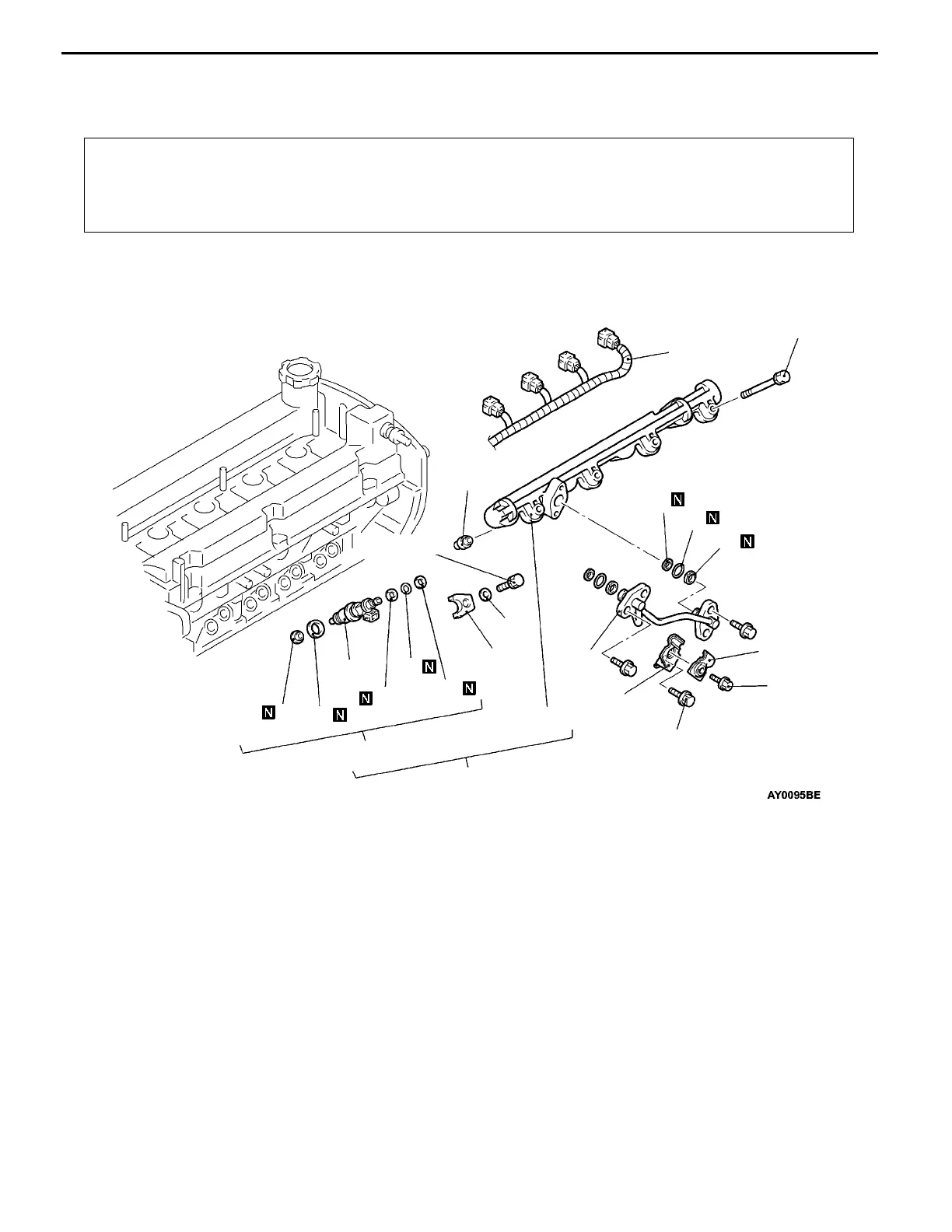

INJECTOR
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
D
Prevention of Fuel Discharge <before removal only>
(Refer to P.13I-121.)
D
Engine Cover Removal and Installation
D
Air Cleaner Assembly Removal and Installation
D
Intake Manifold Removal and Installation
(Refer to GROUP 15.)
D
Fuel Leak Check <after installation only>
(Refer to P.13I-125)
6
7
8
9
10
11
12
13
14
1
2
3
4
5
17
19
18
15
16
20 - 25 Nm
10 - 13 Nm
10 - 13 Nm
9Nm
Removal steps
"
E
AD
Air-bleed the high-pressure fuel line
1. Clamp
"
D
A
2. Fuel pipe
3. Fuel pipe bracket
"
D
A
4. Back-up ring A
"
D
A
5. O-ring
"
D
A
6. Back-up ring B
A
A
"
7. Injector harness connector
"
C
A
8. Injector harness washer
"
C
A
9. Injector holder
A
B
""
C
A
10. Delivery pipe and Fuel injector
assembly
"
C
A
11. Insulator
"
B
A
12. Fuel injector assembly
"
A
A
13. Back-up ring A
"
A
A
14. O-ring
"
A
A
15. Back-up ring B
16. Fuel injector
"
C
A
17. Injector gasket
"
A
A
18. Corrugated washer
19. Delivery pipe
