OPERATION

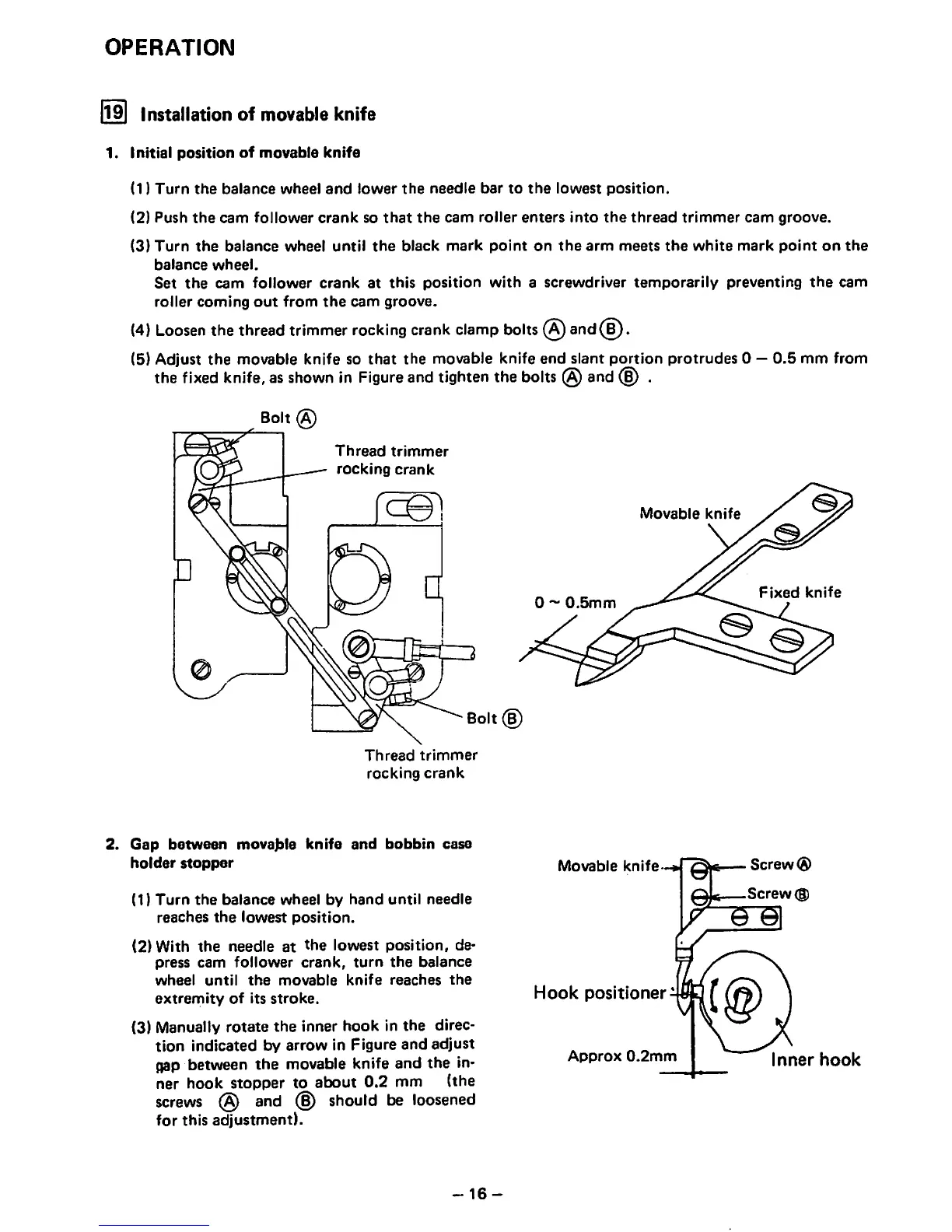

BD Installation of movable knife
1. initial position of movable knife
(1) Turn the balance wheel and lower the needle bar to the lowest position.
(2) Push the cam follower crank so that the cam roller enters into the thread trimmer cam groove.
(3) Turn the balance wheel until the black mark point on the arm meets the white mark point on the
balance wheel.
Set the cam follower crank at this position with a screwdriver temporarily preventing the cam
roller coming out from the cam groove.
(4) Loosen the thread trimmer rocking crank clamp bolts (A) and(^.
(5) Adjust the movable knife so that the movable knife end slant portion protrudes 0 — 0.5 mm from
the fixed knife, as shown in Figure and tighten the bolts @ and (§) .
Bolt(g)
Thread trimmer
rocking crank
Boltd)
Thread trimmer
rocking crank
2. Gap between movable knife and bobbin case
holder stopper
(1) Turn the balance wheel by hand until needle
reaches the lowest position.
(2) With the needle at the lowest position, de
press cam follower crank, turn the balance
wheel until the movable knife reaches the
extrernity of its stroke.
(3) Manually rotate the inner hook in the direc
tion indicated by arrow in Figure and adjust
gap between the movable knife and the in
ner hook stopper to about 0.2 mm (the
screws (§) and (§) should be loosened
for this adjustment).
-16-
Movable knife
0 ~ 0.5mm
Movable knife
Hook positioner
Approx 0.2mm
Fixed knife
Screw®
Screw®
Inner hook
