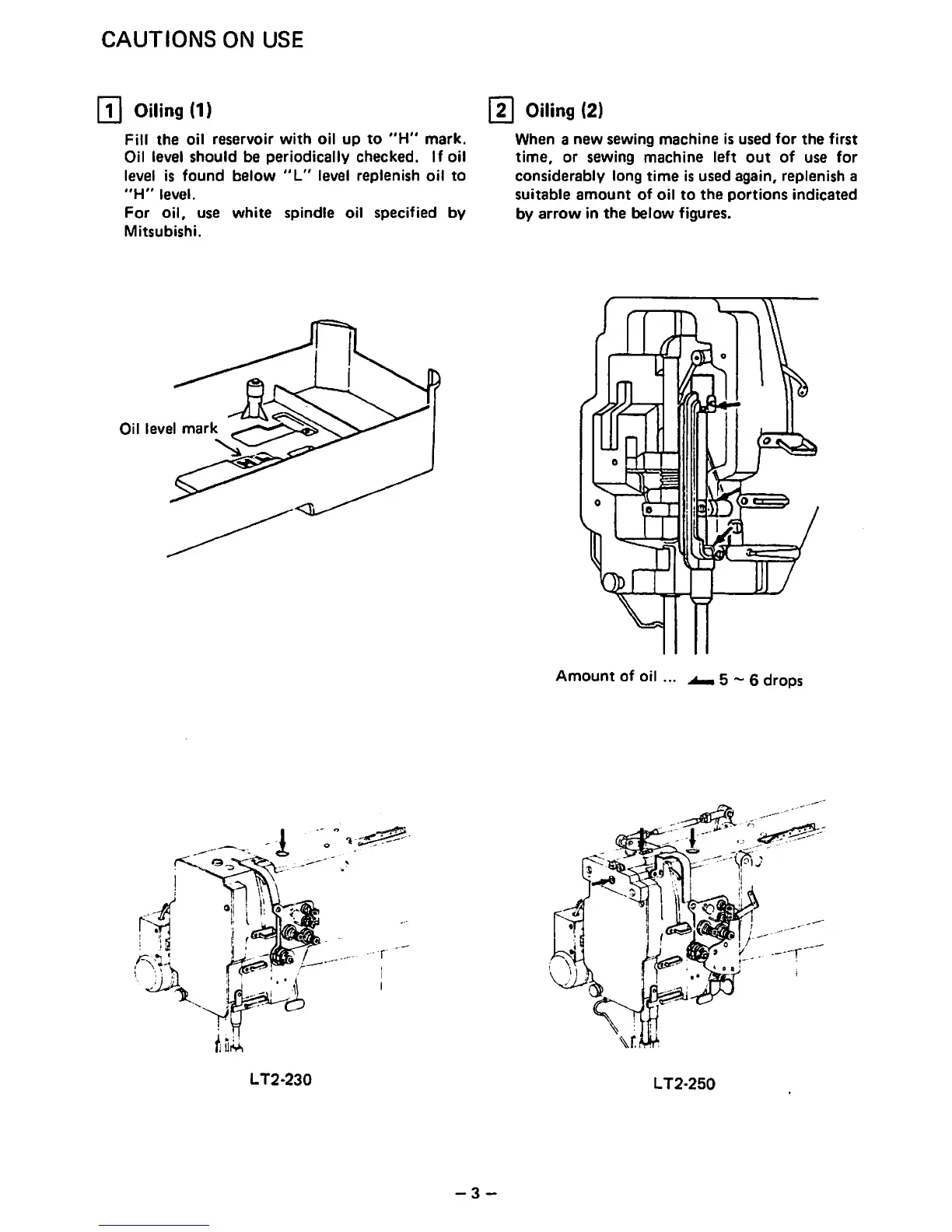

CAUTIONS ON USE
m Oiling (1)
Fill the oil reservoir with oil up to "H" mark.
Oil level should be periodically checked. If oil
level is found below "L" level replenish oil to
"H" level.
For oil, use white spindle oil specified by
Mitsubishi.
Oil level mark
4
jIjL :! j '
LT2-230
[2] Oiling (2)
When a new sewing machine is used for the first
time, or sewing machine left out of use for
considerably long time is used again, replenish a
suitable amount of oil to the portions indicated
by arrow in the below figures.
Amount of oil ..
5 ~ 6 drops
LT2-250
-3 -
