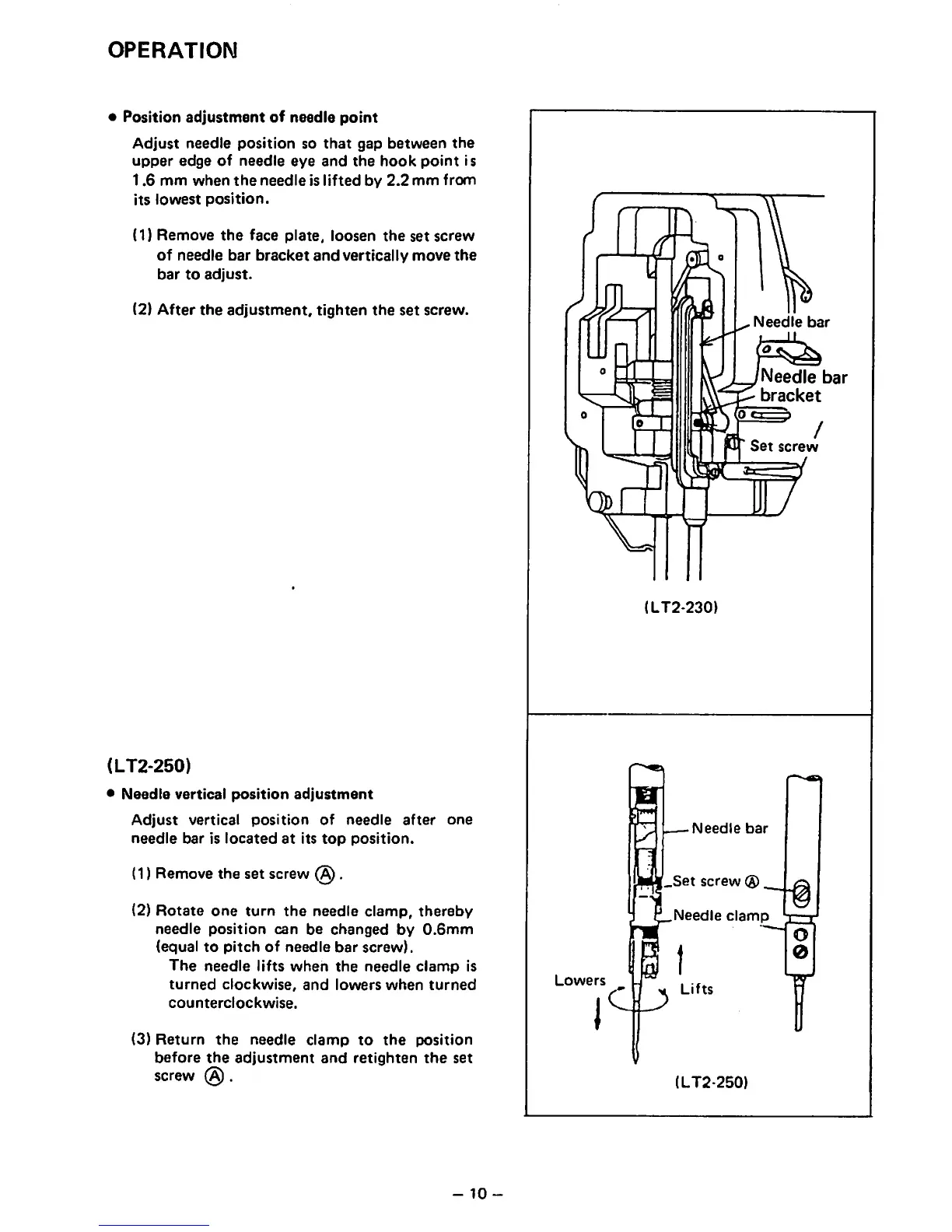

OPERATION
• Position adjustment of needle point
Adjust needle position so that gap between the
upper edge of needle eye and the hook point is
1,6 mm when the needle is lifted by 2.2 mm from
its lowest position.
(1) Remove the face plate, loosen the set screw
of needle bar bracket and vertically move the
bar to adjust.
(2) After the adjustment, tighten the set screw.
(LT2-250)
• Needle vertical position adjustment
Adjust vertical position of needle after one
needle bar is located at its top position.
II) Remove theset screw (§).
(2) Rotate one turn the needle clamp, thereby
needle position can be changed by 0.6mm
lequal to pitch of needle bar screw).
The needle lifts when the needle clamp is
turned clockwise, and lowers when turned
counterclockwise.
(3) Return the needle clamp to the position
before the adjustment and retighten the set
screw @ .
- 10
Lowers
Needle bar
/Needle bar
bracket
Set screw
ILT2-230)
• Needle bar
_Set screw i
Needle clamp
-•§
Lifts
(LT2-250)
o
0
T
