Mitsubishi LT2-250 User Manual

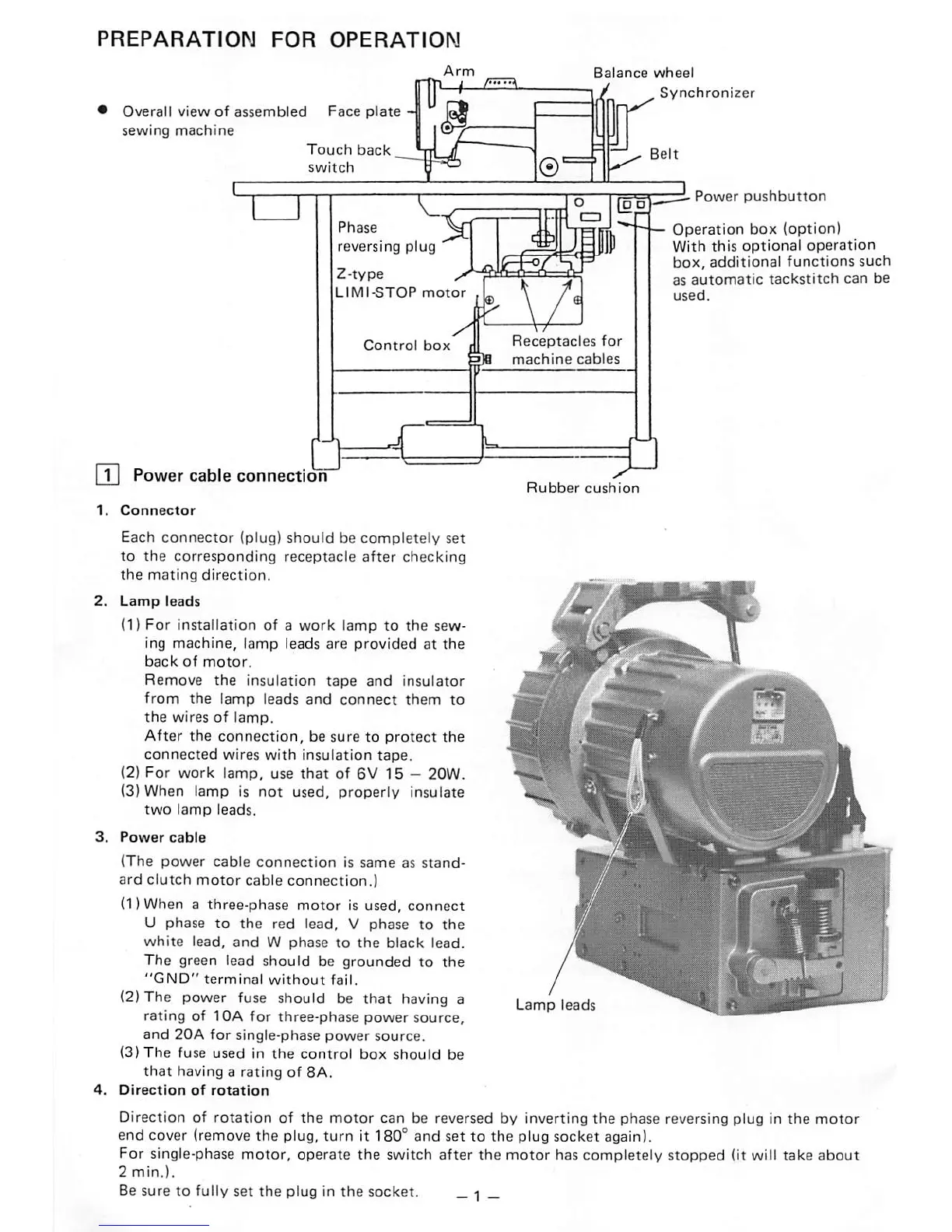

PREPARATION FOR OPERATION
• Overall view of assembled Faceplate
sewing machine
Touch back _
switch
Phase
reversing plug
2-type X
LIMI-STOP motor
Control box
Balance wheel
\/ Synchronizer
Receptacles for
machine cables
Power pushbutton
Operation box (option)
With this optional operation
box, additional functions such
as automatic tackstitch can be
used.
m Power cable connection
Rubber cushion
1. Connector
Each connector (plug) should be completely set
to the corresponding receptacle after checking
the mating direction. „
(DFor installation of a work lamp to the sew-
back of motor.
Remove the insulation tape and insulator
from the lamp leads and connect them to
the wires of lamp.
After the connection, be sure to protect the rMft
connected wires with insulation tape.
(3) When lamp is not used, properly insulate
two lamp leads. <btV'' jCA
3. Power cable
(The power cable connection is same as stand-
(l)When a three-phase motor is used, connect , Sln%f9h «, .•
"GND" terminal without fail. j
rating of lOA for three-phase power source, ^
and 20A for single-phase power source.
(3) The fuse used in the control box should be
that having a rating of 8A.
4. Direction of rotation
Direction of rotation of the motor can be reversed by inverting the phase reversing plug in the motor
end cover (remove the plug, turn it 180° and set to the plug socket again).
For single-phase
motor, operate the switch after the motor has completely stopped (it will take about
2 min.).
Besure to fully set the plug in the socket. _ 1 _
Lamp leads
From the library of: Superior Sewing Machine & Supply LLC
