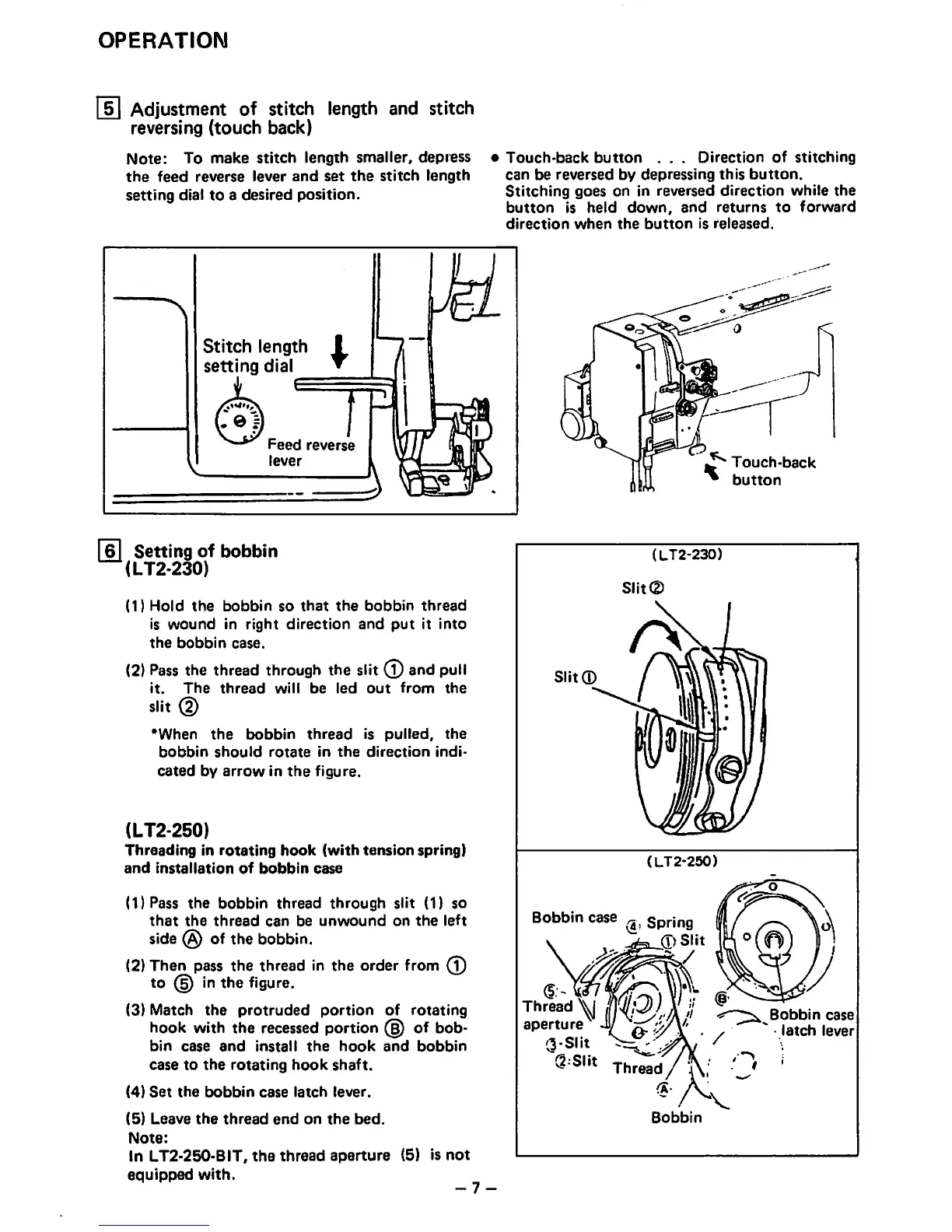

OPERATION
Adjustment of stitch length and stitch
reversing (touch back)
Note: To make stitch length smaller, depress
the feed reverse lever and set the stitch length
setting dial to a desired position.
Stitch length I
setting dial •
Feed reverse
lever
® Setting of bobbin
(LT2-230)
(1) Hold the bobbin so that the bobbin thread
is wound in right direction and put it into
the bobbin case.
(2) Pass the thread through the slit (l) and pull
it. The thread will be led out from the
slit (2)
'When the bobbin thread is pulled, the
bobbin should rotate in the direction indi
cated by arrow in the figure.
(LT2-250)
Threading in rotating hook (with tension spring)
and installation of bobbin case
(1)Pass the bobbin thread through slit (1) so
that the thread can be unwound on the left
side (§) of the bobbin.
(2)Then pass the thread in the order from (T)
to (§) in the figure.
(3) Match the protruded portion of rotating
hook with the recessed portion of bob
bin case and install the hook and bobbin
case to the rotating hook shaft.
(4) Set the bobbin case latch lever.
(5) Leave the thread end on the bed.
Note:
In LT2-250-BIT, the thread aperture (5) is not
equipped with.
• Touch-back button . . . Direction of stitching
can be reversed by depressing this button.
Stitching goes on in reversed direction while the
button is held down, and returns to forward
direction when the button is released.
Bobbin case
V
Thread ^
aperture
3-Slit
SSlit
(LT2-230)
(LT2-250)
Spring
0Slit
Thread
Bobbin
Touch-back
button
Bobbin case
latch lever
