16

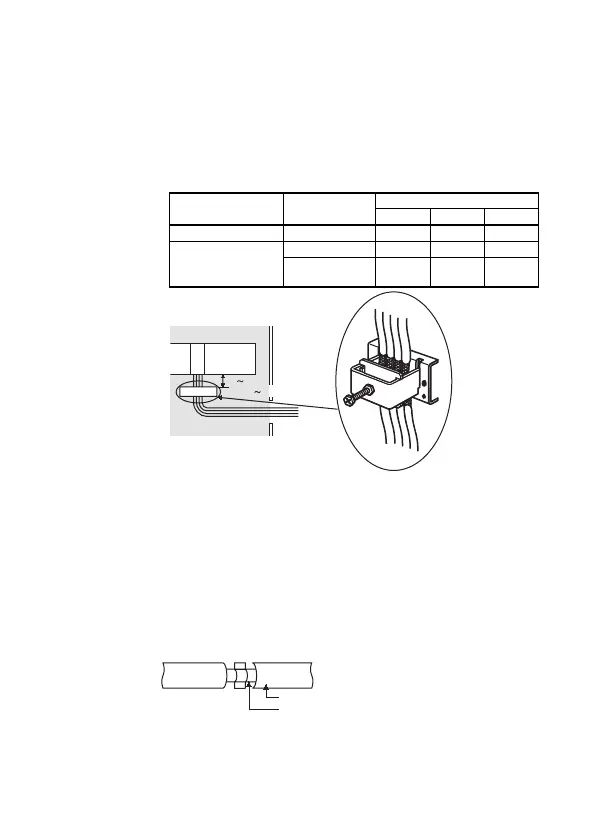

(c) Ferrite core and cable clamp types and required quantities
• Cable clamp
Type: AD75CK (manufactured by Mitsubishi Electric
Corporation)
•Ferrite core
Type: ZCAT3035-1330 (manufactured by TDK Corporation)
Contact: TDK Corporation
• Required quantity
(6) CC-Link Module
(a) Be sure to ground the cable shield that is connected to the CC-
Link module close to the exit of control panel or to any of the
CC-Link stations within 30 cm (11.81 in.) from the module or
stations.
The CC-Link dedicated cable is a shielded cable. As shown in
the illustration below, remove a portion of the outer covering
and ground as large a surface area of the exposed shield part
as possible.
(b) Always use the specified CC-Link dedicated cable.
Cable length Prepared part
Required Qty
1 axis 2 axes 3 axes
Within 2 m (6.56 ft.) AD75CK 1 1 1
2 m (6.56 ft.) to 10m
(32.81 ft.)
AD75CK 111
ZCAT3035-
1330
123
(7.87 11.81inch)
AD75CK
Inside control panel
cm3020
A1SD75
CC-Link dedicated cable
Shield
