Mitsubishi MELSEC-A A2ASCPU-S30 User Manual

5 - 4
5. POWER SUPPLY MODULE
5.2 Part Names

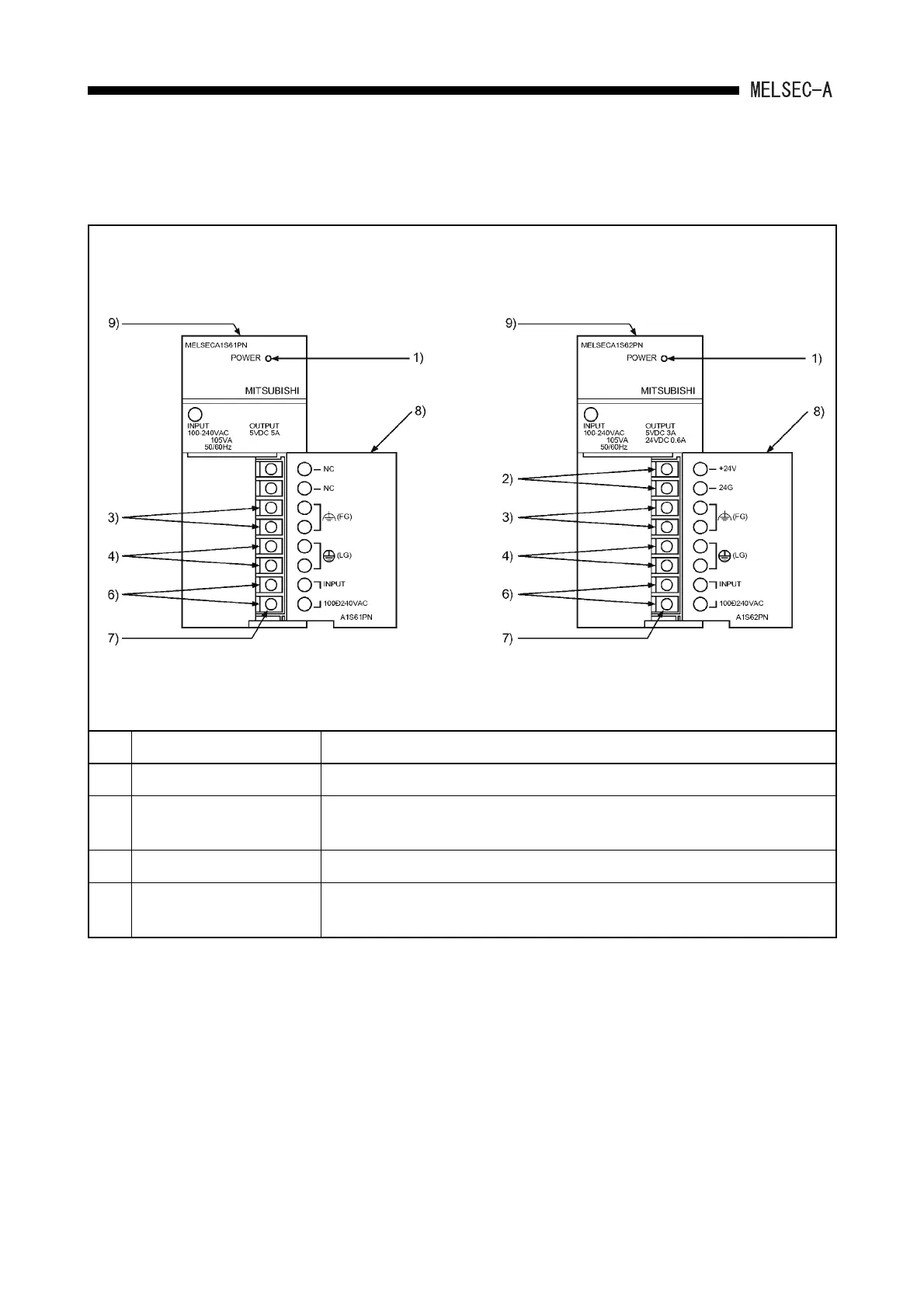

Part names of the power supply modules are shown here.
No. Name Description
1) POWER LED LED for the 5VDC power indicator.
2) 24VDC, 24GDC terminal
Used to supply 24VDC power supply to inside the output module (using external
wiring).
3) FG terminal The ground terminal connected to the shielding pattern of the printed-circuit board.
4) LG terminal
Grounding for the power supply filter. The potential of A1S61PN or A1S62PN
terminal is 1/2 of the input voltage.
(1) A1S61PN (2) A1S62PN
