30
3 Replacement from FX3UC to FX5UC
3.3 Selection of Substitute Models

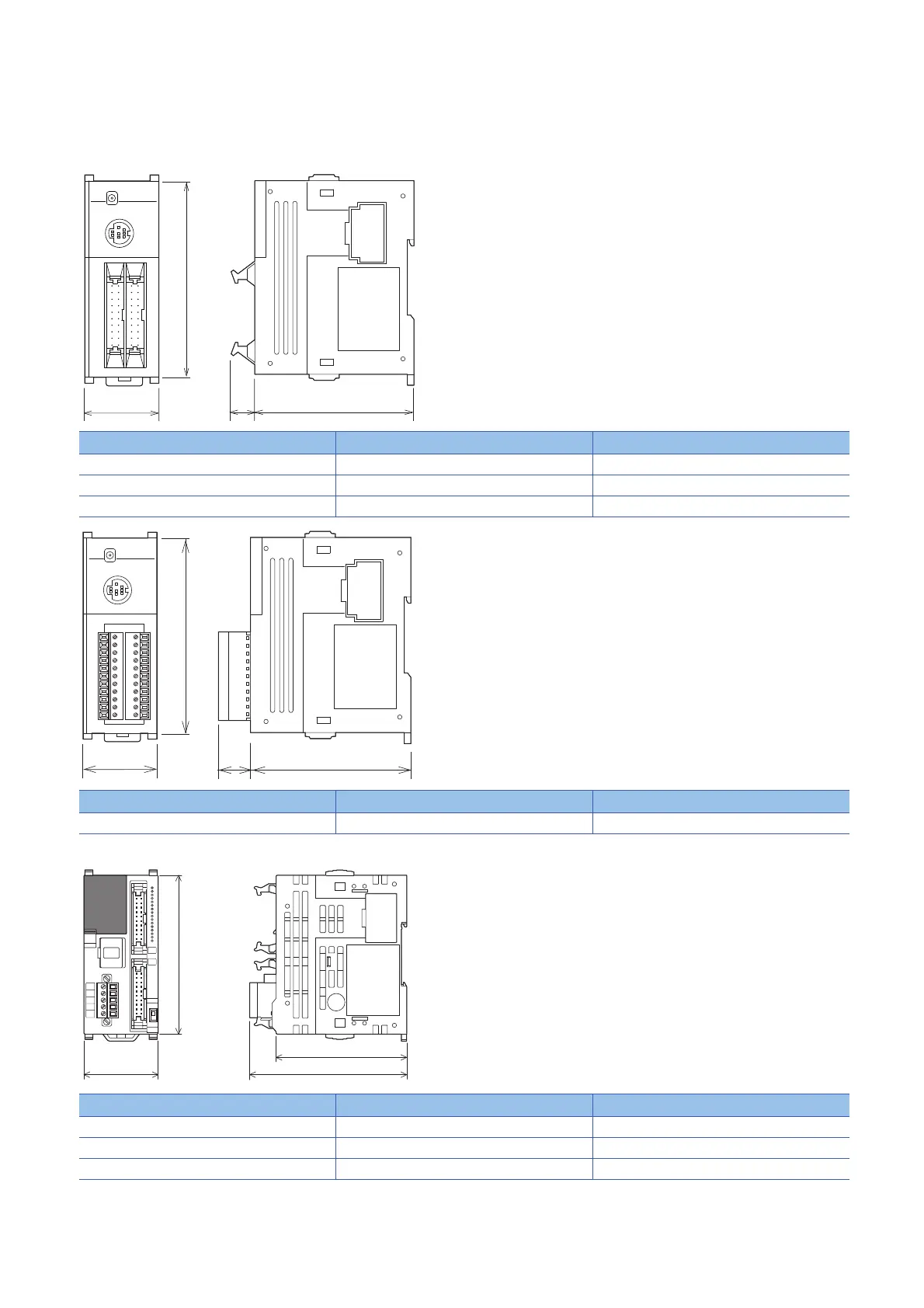

■External dimension drawing
There is some difference in the external dimension of FX3UC and the successor model FX5UC. Be careful when replacing
the modules.
•FX3UC
•FX5UC
External color: Munsell 0.08GY/7.64/0.81
Unit: mm
35 mm width DIN rail can be installed
[Accessories]
FX2NC-100MPCB power cable
FX2NC-100BPCB power cable (only FX3UC-MT/D)
Model name W: mm Weight: kg
FX3UC-16MT/D, DSS, FX3UC-32MT/D, DSS 34.0 0.20
FX3UC-64MT/D, DSS 59.7 0.30
FX3UC-96MT/D, DSS 85.4 0.35
External color: Munsell 0.08GY/7.64/0.81
Unit: mm
35 mm width DIN rail can be installed
[Accessories]
FX2NC-100MPCB power cable
FX2NC-100BPCB power cable (only FX3UC-16MR/D-T)
Model name W: mm Weight: kg
FX3UC-16MR/D-T, FX3UC-16MR/DS-T 34.0 0.25
External color: Munsell 0.6B7.6/0.2
Unit: mm
35 mm width DIN rail can be installed
[Accessories]
FX2NC-100MPCB power cable
FX2NC-100BPCB power cable (only FX5UC-MT/D)
Model name W: mm Weight: kg
FX5UC-32M 42.1 0.20
FX5UC-64M 62.2 0.30
FX5UC-96M 82.3 0.35
13W74
90
90
W1574
90
W
89.1
74
