5.3 Standard Arithmetic Functions
5.3.5 Modulus operation
MOD(_E)
Operation Error
An operation error occurs in the following case.
• The value to be input to is 0. (Division by 0) (Error code: 4100)

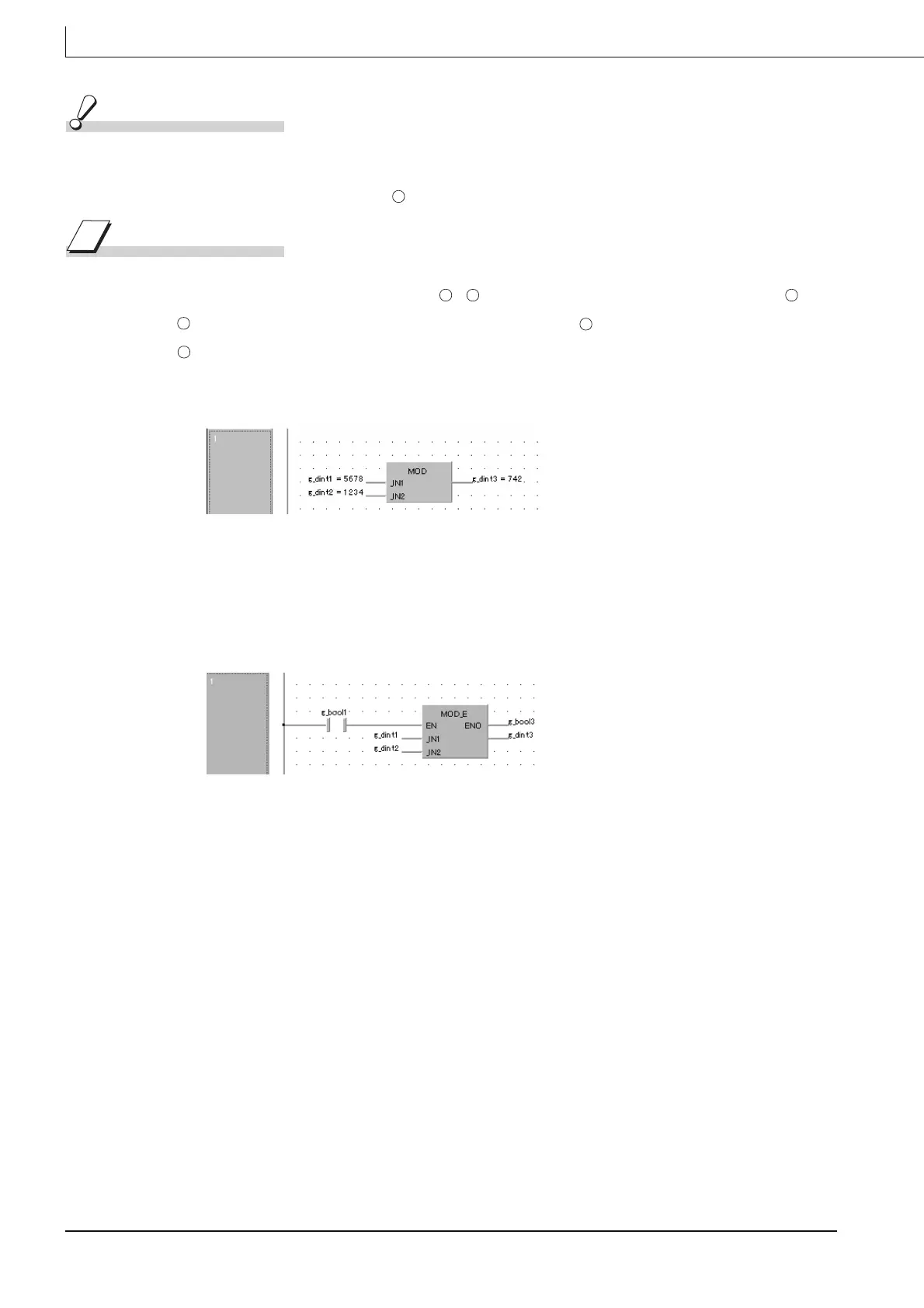

Program Example
The program which performs division ( ÷ ) on double word (signed) type data input to and
, and outputs the remainder of the operation result from in the same data type as that of
.
(a) Function without EN/ENO (MOD)
[Structured ladder]
[ST]
g_dint3:= g_dint1 MOD g_dint2;
(b) Function with EN/ENO (MOD_E)
[Structured ladder]
[ST]
g_bool3 := MOD_E(g_bool1, g_dint1, g_dint2, g_dint3);
s2
s1 s2 s1
s2
d
s
