7. SPECIAL ADJUSTMENT FUNCTIONS
7 - 3
(1) Function

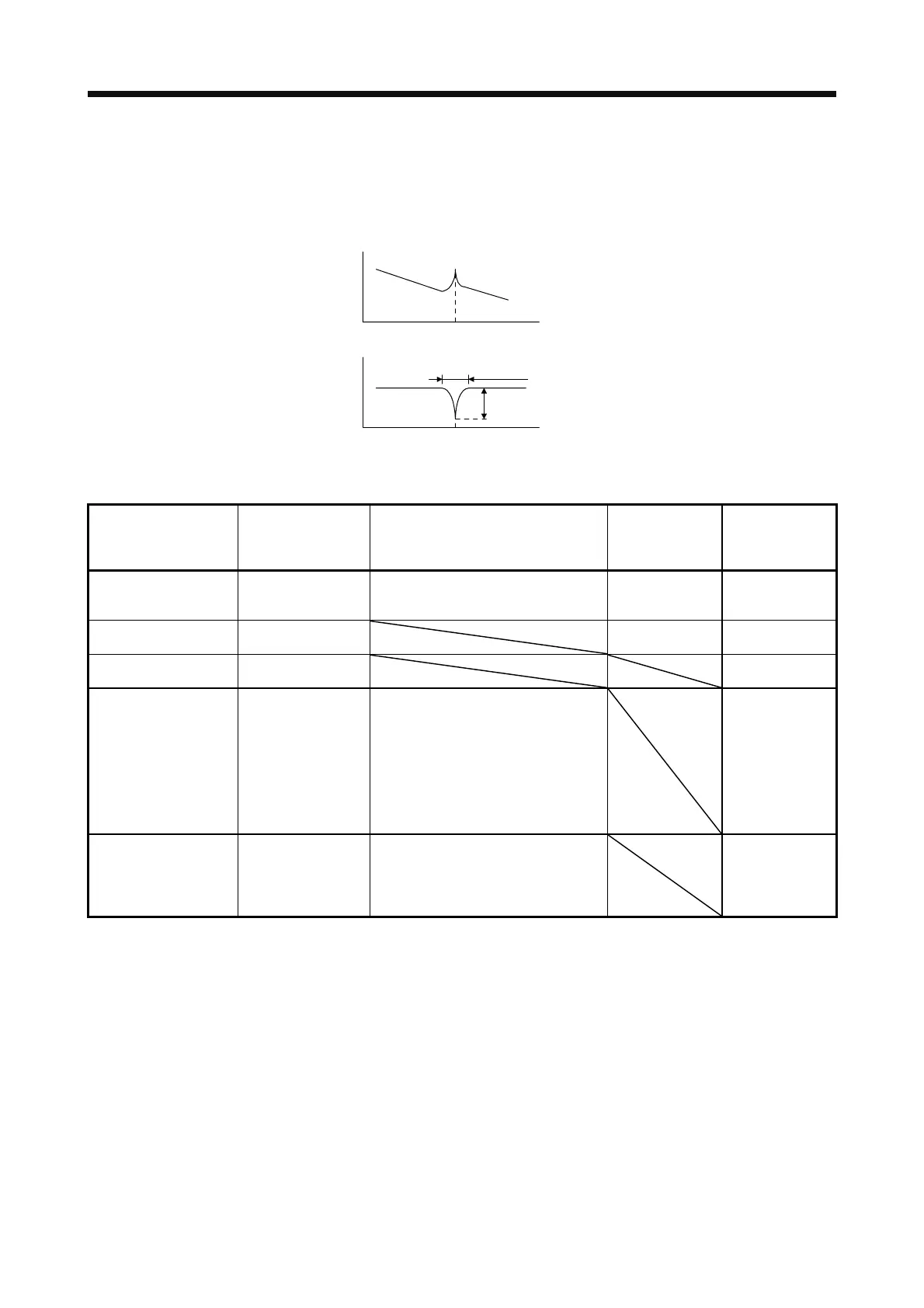

The machine resonance suppression filter is a filter function (notch filter) which decreases the gain of
the specific frequency to suppress the resonance of the mechanical system. You can set the gain
decreasing frequency (notch frequency), gain decreasing depth and width.
Response of
mechanical system
Notch
characteristics
Machine resonance point
Notch frequency
Frequency
Frequency
Notch width
Notch depth
You can set five machine resonance suppression filters at most.
Filter Setting parameter Precaution
Parameter that is
reset with vibration
tough drive
function
Parameter
automatically
adjusted with one-
touch tuning
Machine resonance
suppression filter 1
PB01/PB13/PB14 The filter can be set automatically with
"Filter tuning mode selection" in [Pr.
PB01].
PB13 PB01/PB13/PB14
Machine resonance
suppression filter 2
PB15/PB16 PB15 PB15/PB16
Machine resonance
suppression filter 3
PB46/PB47 PB47
Machine resonance
suppression filter 4
PB48/PB49 Enabling the machine resonance
suppression filter 4 disables the shaft
resonance suppression filter.
Using the shaft resonance suppression
filter is recommended because it is
adjusted properly depending on the
usage situation.
The shaft resonance suppression filter is
enabled for the initial setting.
PB48/PB49
Machine resonance
suppression filter 5
PB50/PB51 When the robust filter is used, machine
resonance suppression filter 5 will be
disabled regardless of the setting.
The robust filter is disabled for the initial
setting.
PB51
To Next Page
