11. OPTIONS AND AUXILIARY EQUIPMENT
11 - 81

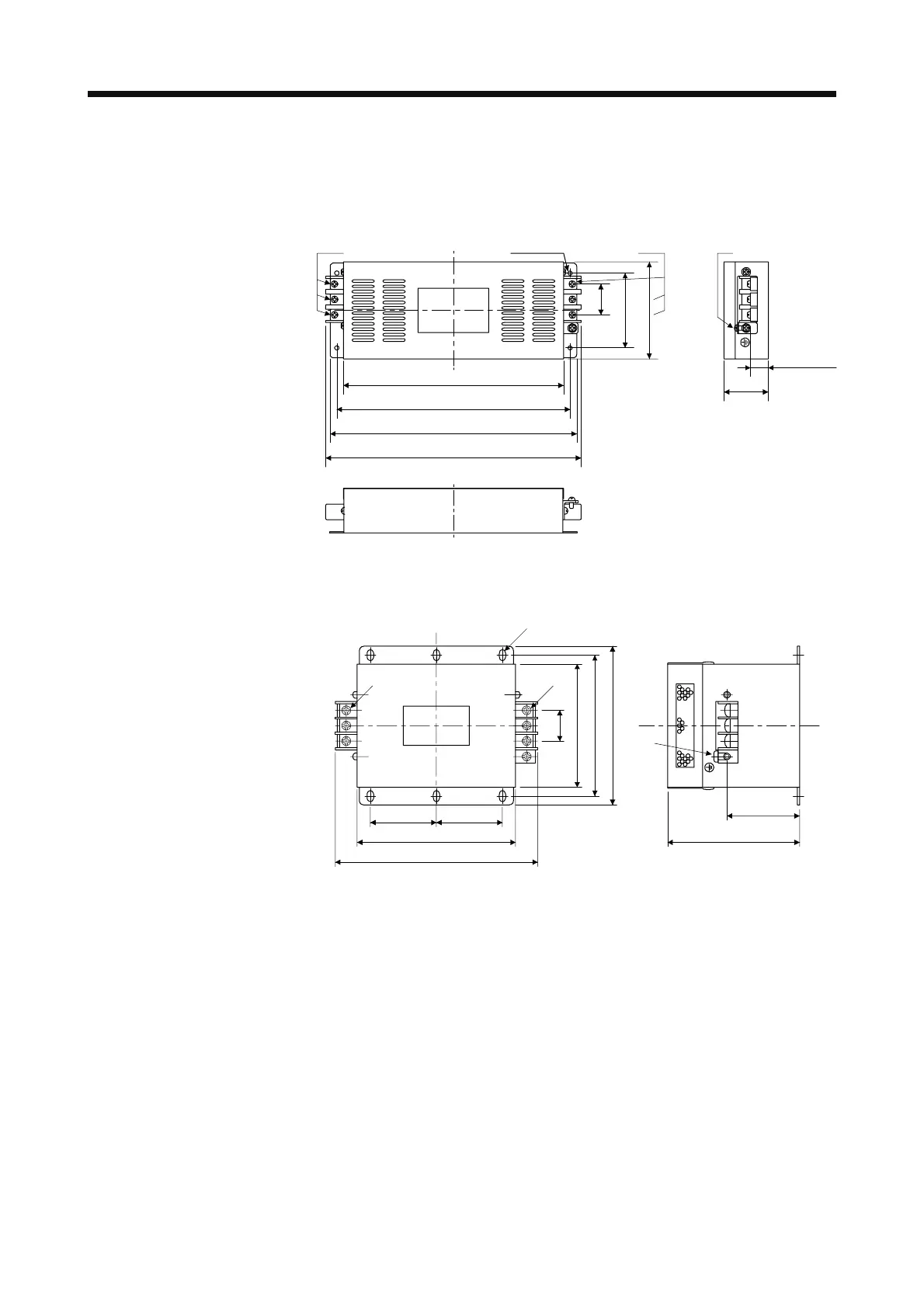

(3) Dimensions
(a) EMC
filter
HF3010A-UN
[Unit: mm]
32 ± 2
85 ± 2
110 ± 4
258 ± 4
273 ± 2
288 ± 4
300 ± 5
M4
IN
3-M4
65 ± 4
Approx. 41
4-5.5 × 7
3-M4
HF3030A-UN/HF-3040A-UN
[Unit: mm]
125 ± 2
44 ± 1
260 ± 5
140 ± 2
70 ± 2
140 ± 1
155 ± 2
3-M5
6-R3.25 length: 8
3-M5
M4
85 ± 1
210 ± 2
85 ± 1
411
413
