11. OPTIONS AND AUXILIARY EQUIPMENT
11 - 88

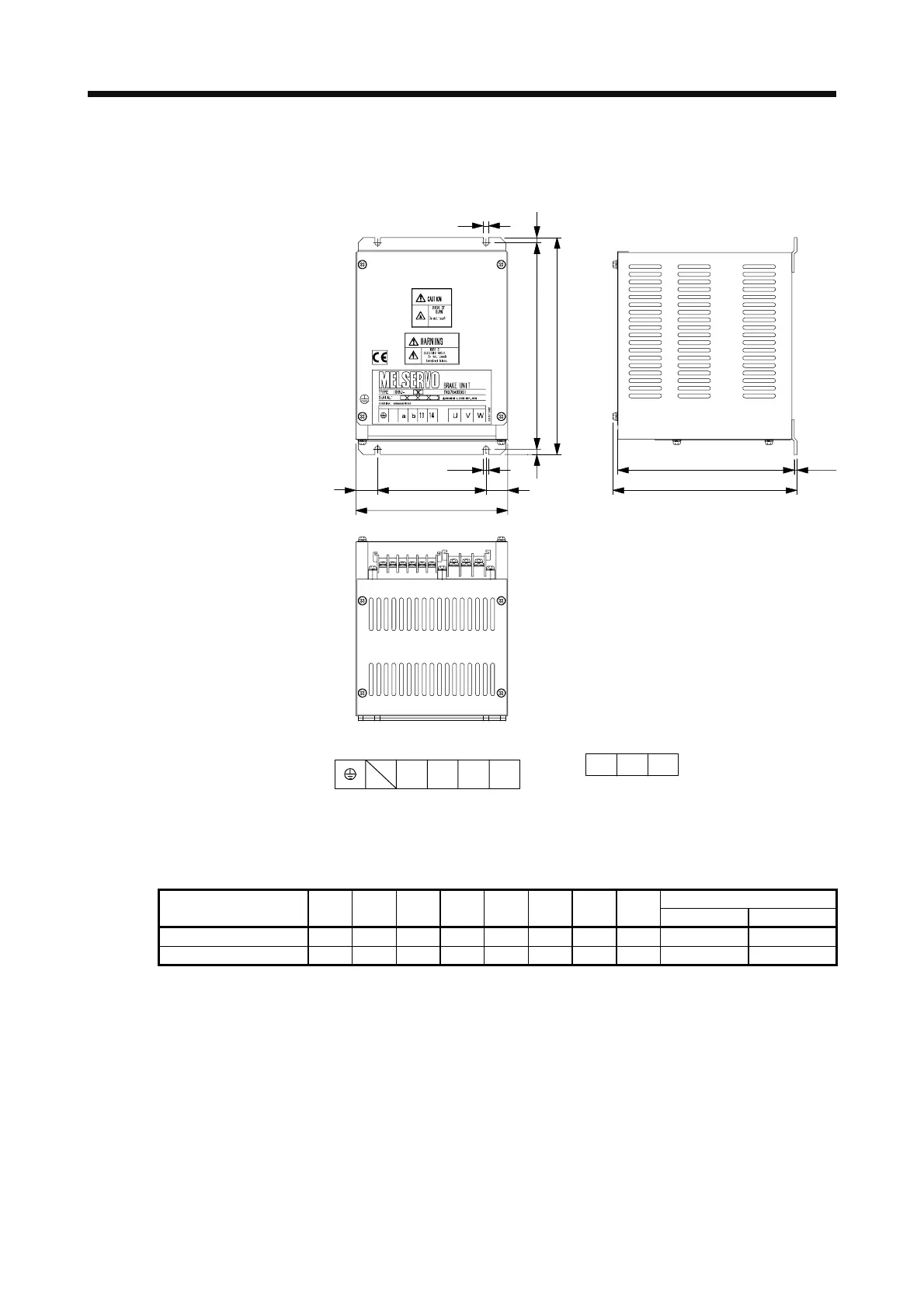

(4) Dimensions
(a) DBU-11K/DBU-15K/DBU-22K-R1
[Unit: mm]
C
D 100 D
5
E EB
A
5
F
2.3G
ab13
Terminal block
14
Screw: M3.5
Tightening torque: 0.8 [N•m]
UVW
Screw: M4
Tightening torque: 1.2 [N•m]
(Note) Connection wire [mm
2
]
External dynamic brake A B C D E F G
Mass
[kg]
U/V/W Except U/V/W
DBU-11K 200 190 140 20 5 170 163.5 2 5.5 (AWG 10) 2 (AWG 14)
DBU-15K/DBU-22K-R1 250 238 150 25 6 235 228 6 5.5 (AWG 10) 2 (AWG 14)
Note. Selection conditions of wire size is as follows.
Wire type: 600 V grade heat-resistant polyvinyl chloride insulated wire (HIV wire)
Construction condition: Single wire set in midair
