12. ABSOLUTE POSITION DETECTION SYSTEM
12 - 8
(b)

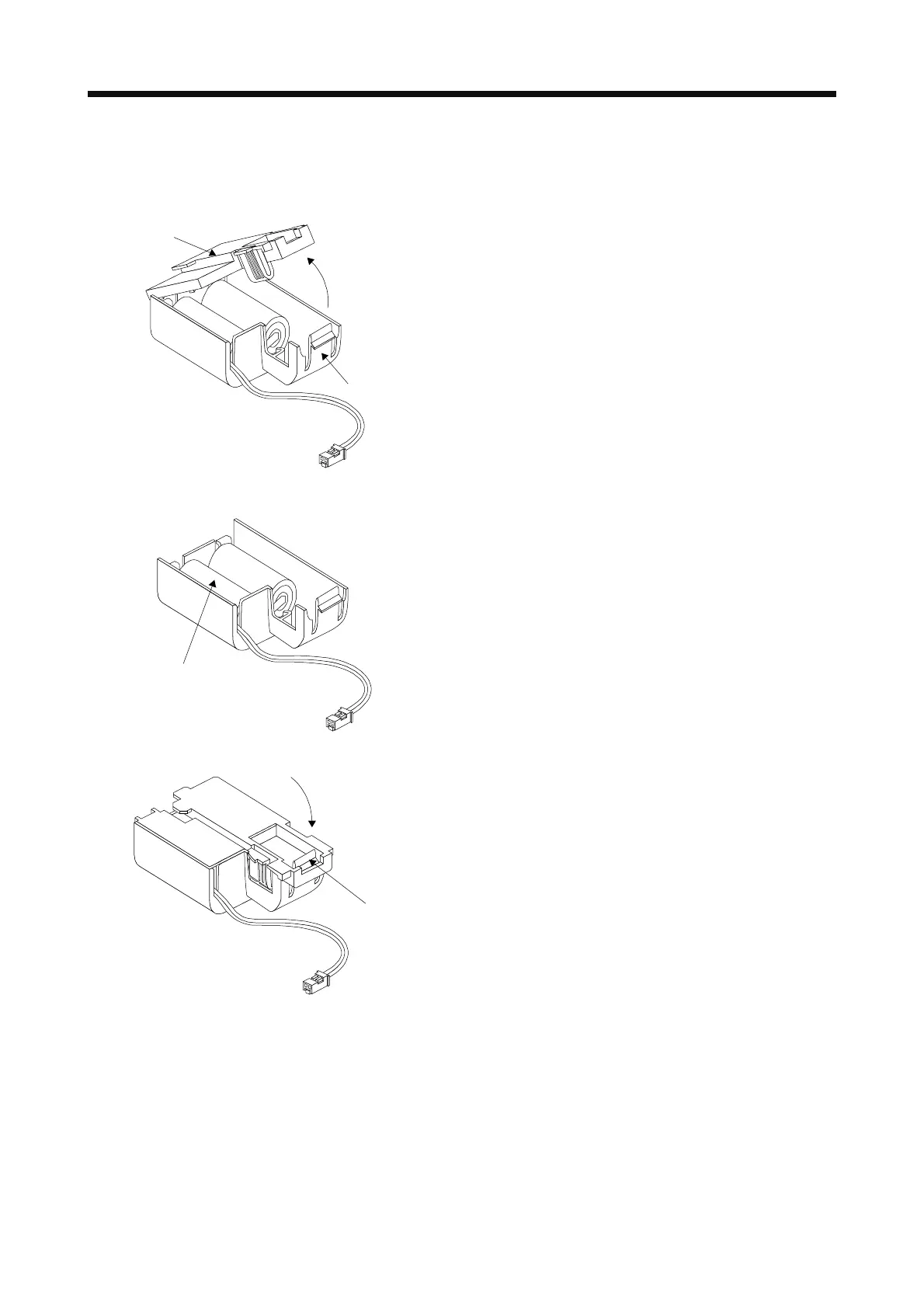

Replacement procedure of the battery in the MR-BAT6V1SET
When the MR-BAT6V1SET battery reaches the end of its life, replace the MR-BAT6V1 battery in the
MR-BAT6V1SET.
Cover
Locking par
t
While pressing the locking part, open the cover.
MR-BAT6V1
Replace the battery with a new MR-BAT6V1 battery.
Projection
Press the cover until it is fixed with the projection of the
locking part to close the cover.
