12. ABSOLUTE POSITION DETECTION SYSTEM
12 - 18
1) After the absolute position data is transmitted, RD turns on by ABSM-off. When RD is on, ABSM-
on is not received.
2) Even if SON is turned on before ABSM is turned on, the base circuit is not turned on until ABSM
is turned on.
If a servo alarm has occurred, ABSM is not received. ABSM allows data transmission even while
a servo warning is occurring.
3) If ABSM is turned off during the ABS transfer mode, the ABS transfer mode is interrupted and
[AL. E5 ABS time-out warning] occurs.
If SON is turned off, RES is turned on, and EM2 is turned off during the ABS transfer mode, [AL.
E5 ABS time-out warning] occurs.
4) Note that if ABSM is turned on for a purpose other than absolute position data transmission, the
output signals will be assigned the functions of absolute position data transmission.
Output signal
CN1 Pin No.
ABSM (ABS transfer mode): off ABSM (ABS transfer mode): on
22 Positioning completion transmission data bit 03
23 Zero speed detection transmission data bit 1
25 During torque limit control transmission data ready
5) ABSM is not accepted while the base circuit is on. For re-transferring, turn off SON signal and
keep the base circuit in the off state for 20 ms or longer.

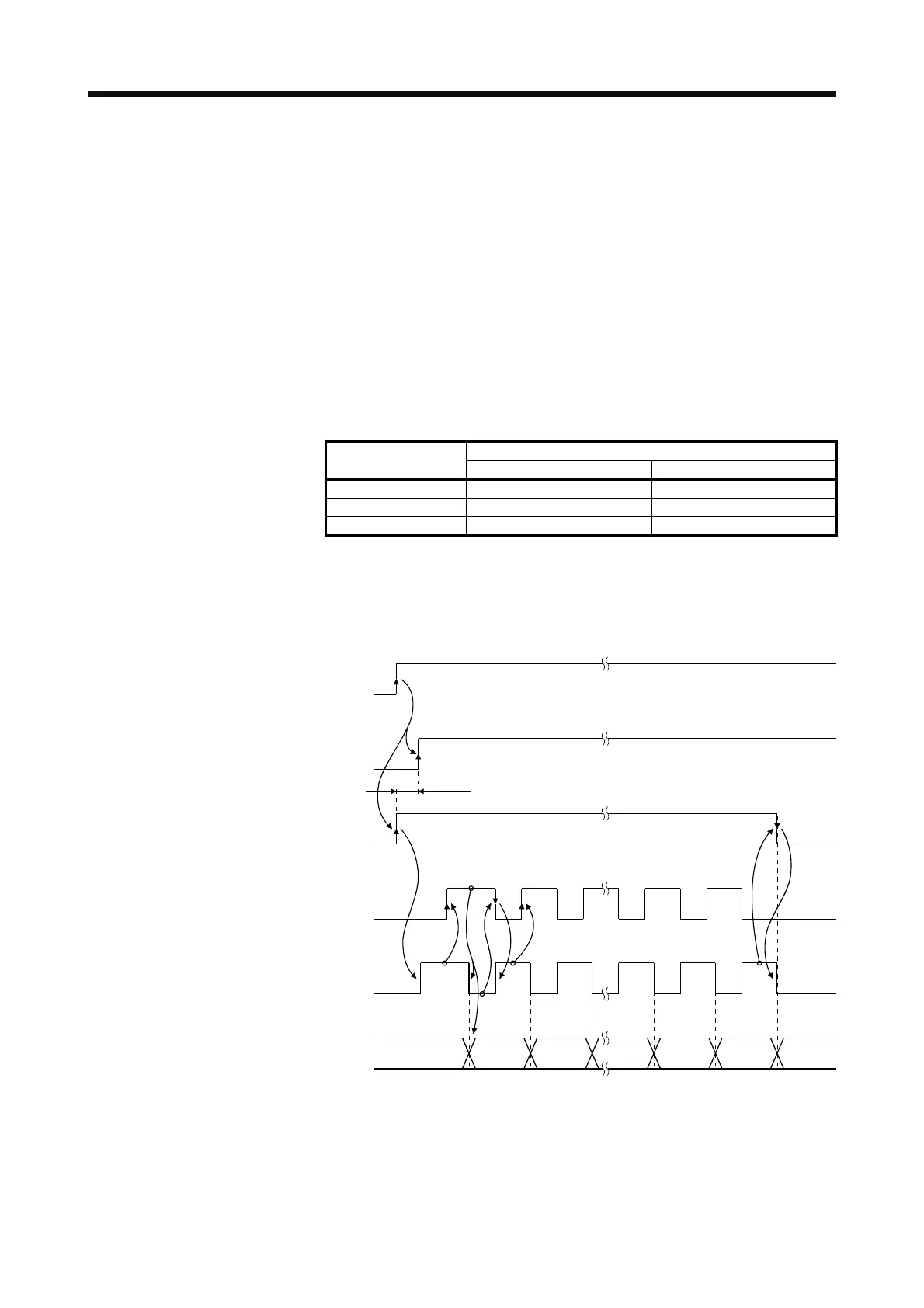

(b) Detailed description of absolute position data transfer
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
3)
4)
5)
7)
(Note)
1)
2) 6)
Servo-on in
programmable
controlle
r
SON
A
BSM
A
BSR
A
BST
A
BSB0
A
BSB1
During transfer of ABS
Lower
2 bits
Checksum
Upper 2 bits
Note. If SON does not turn on within 1 s after ABSM off, [AL. EA ABS servo-on warning] will occur. But it will not
influence the transfer. SON on will cancel [AL. EA] automatically.
