APPENDIX
App. - 35

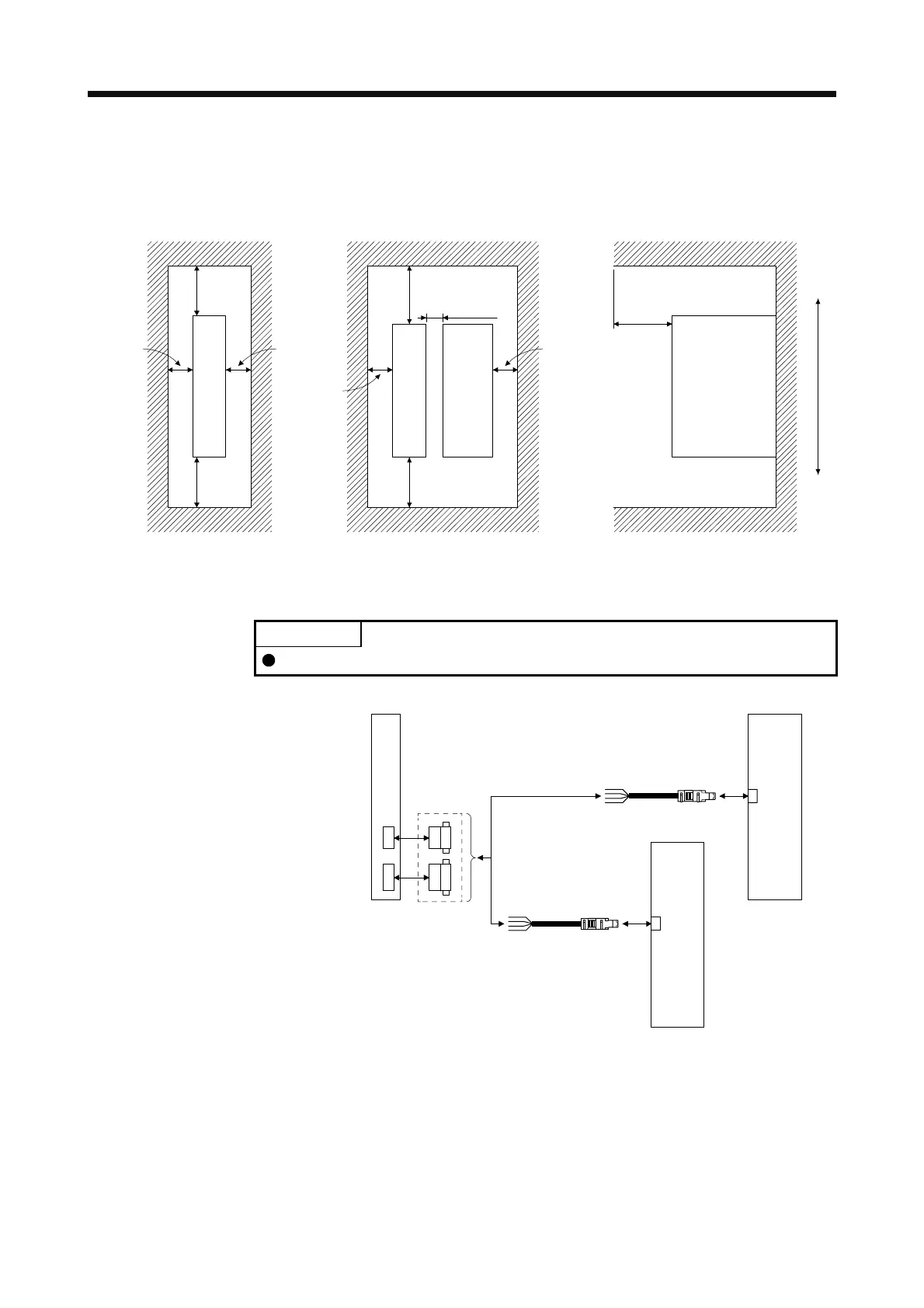

App. 5.13 Installation
Follow the instructions in this section and install MR
-J3-D05 in the specified
direction. Leave clearances
between MR-J3-D05 and other equipment including the cabinet.
Cabine
t
10 mm or
longer
80 mm or longer
for wiring
30 mm or
longer
10 mm or
longer
Top
Bottom
40 mm or
longer
40 mm or
longer
40 mm or
longer
30 mm or
longer
100 mm or longer
10 mm or
longer
Cabine
t
Cabine
t
MR-J3-D05
MR-J3-D05
MR-J3-D05
Other device
App. 5.14 Combinations of cable/connector
POINT
MR-D05UDL_M (STO cable) for MR-J3 series cannot be used.
MR-J3-D05
attachment
connector
CN9
CN10
MR-J3-D05
2)
2)
CN8
MR-J4_A_(-RJ)
MR-J4_A_(-RJ)
1)
CN8
617
619
