3. SIGNALS AND WIRING
3 - 23

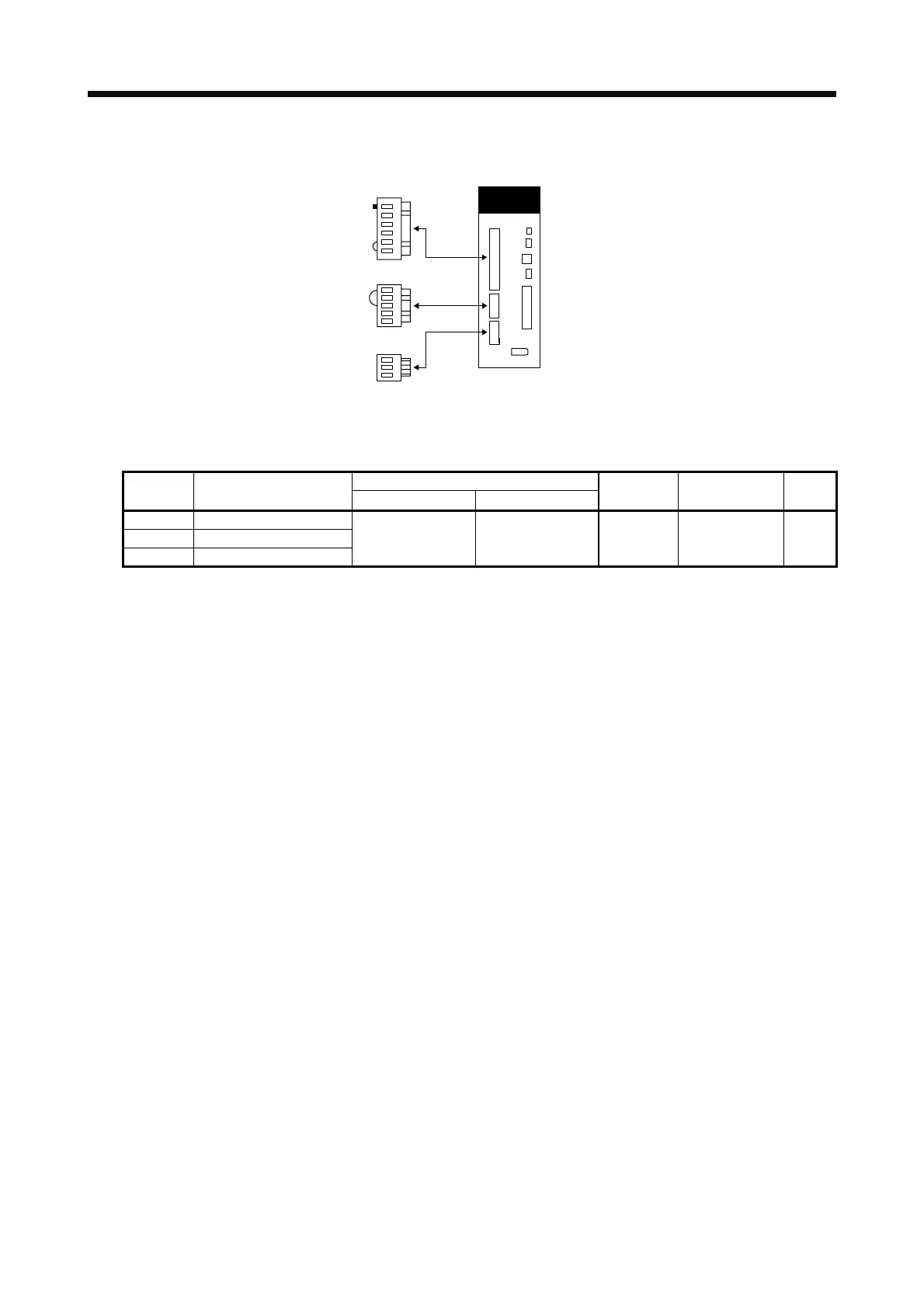

(c) MR-J4-60A4(-RJ) to MR-J4-350A4(-RJ)
CNP2
CNP1
(Note)
CNP3
Servo amplifier
Note. A pin for preventing improper connection is inserted to N- of CNP1 connector.
Table 3.3 Connector and applicable wire
Applicable wire
Connector Receptacle assembly
Size Insulator OD
Stripped
length [mm]
Open tool
Manufa
cturer
CNP1 06JFAT-SAXGDK-HT10.5
CNP2 05JFAT-SAXGDK-HT7.5
CNP3 03JFAT-SAXGDK-HT10.5
AWG 16 to 14 3.9 mm or shorter 10 J-FAT-OT-XL JST
