Mitsubishi MSH-GA60VB User Manual

20
MSH-GA50VB MSH-GA60VB MSH-GA80VB

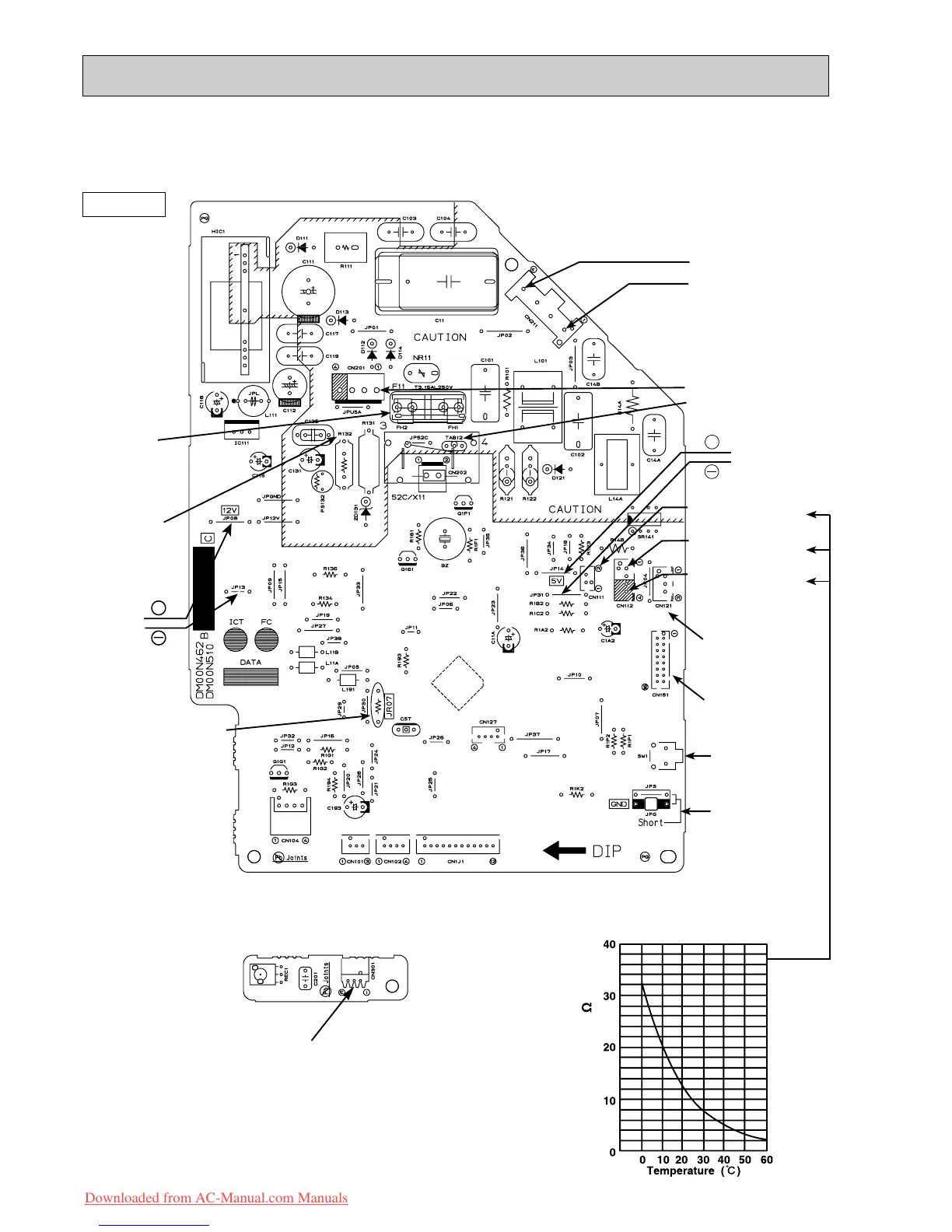

Indoor electronic control P.C. board
+
}
}
Resistance(k
)
+
{
Fuse (F11)
12 VDC
Fan motor power supply
(CN211)
5 VDC
Vane motor
power supply
(CN151)
CN121
Emergency
operation
switch
Power supply input
230 VAC
Indoor coil thermistor
(RT12
(main))
MSH-GA80VB
Indoor coil
thermistor (RT13
(sub))
Timer short mode
point (JPS, JPG)
(Refer to 8-1.)
Room temperature
thermistor (RT11)
R132
To disable “Auto restart
function”, solder the
jumper wire to JR07.
(Refer to 8-3.)
Indoor coil thermistor
(RT12 (main), RT13 (sub))
Room temperature thermistor (RT11)
Receiver P.C. board
CN301
TYPE 2
OB367D-1.qxp 12.1.13 7:49 AM Page 20
OB367D
