Mitsubishi MSH-GA60VB User Manual

9

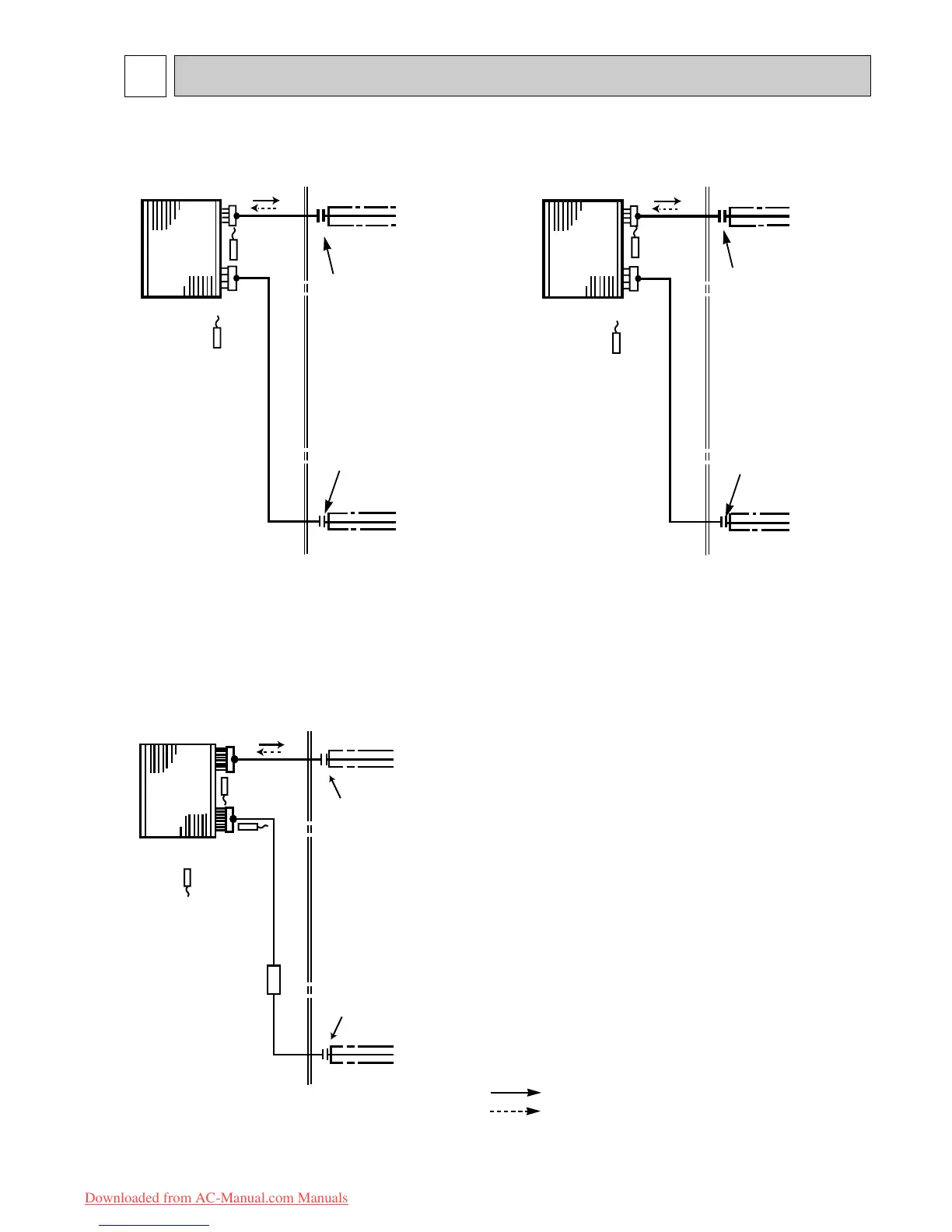

REFRIGERANT SYSTEM DIAGRAM
7
MSH-GA80VB
Indoor
heat
exchanger
Flared connection
Room temperature
thermistor
RT11
Indoor coil
thermistor
RT13(sub)
Flared connection
Refrigerant pipe [15.88
(with heat insulator)
Refrigerant pipe [9.52
(with heat insulator)
Indoor coil
thermistor
RT12(main)
Strainer
#50
Refrigerant flow in cooling
Refrigerant flow in heating
MSH-GA50VB
Indoor
heat
exchanger
Room temperature
thermistor
RT11
Refrigerant pipe [12.7
(with heat insulator)
Flared connection
Flared connection
Indoor coil
thermistor
RT12
Refrigerant pipe [6.35
(with heat insulator)
Distributor
MSH-GA60VB
Indoor
heat
exchanger
Room temperature
thermistor
RT11
Refrigerant pipe [15.88
(with heat insulator)
Flared connection
Flared connection
Indoor coil
thermistor
RT12
Refrigerant pipe [6.35
(with heat insulator)
Distributor
Unit:mm
OB367D-1.qxp 12.1.13 7:49 AM Page 9
OB367D
Downloaded from AC-Manual.com Manuals
