Mitsubishi MU09NW - TECHNICAL CHANGES; MS09 EW MS09 NW; MS12 EN, MS15 EN MS12 NN, MS15 NN; MS17 NN

4
2
PART NAMES AND FUNCTIONS
3
MS09NW, MS12NN, MS15NN, MS17NN

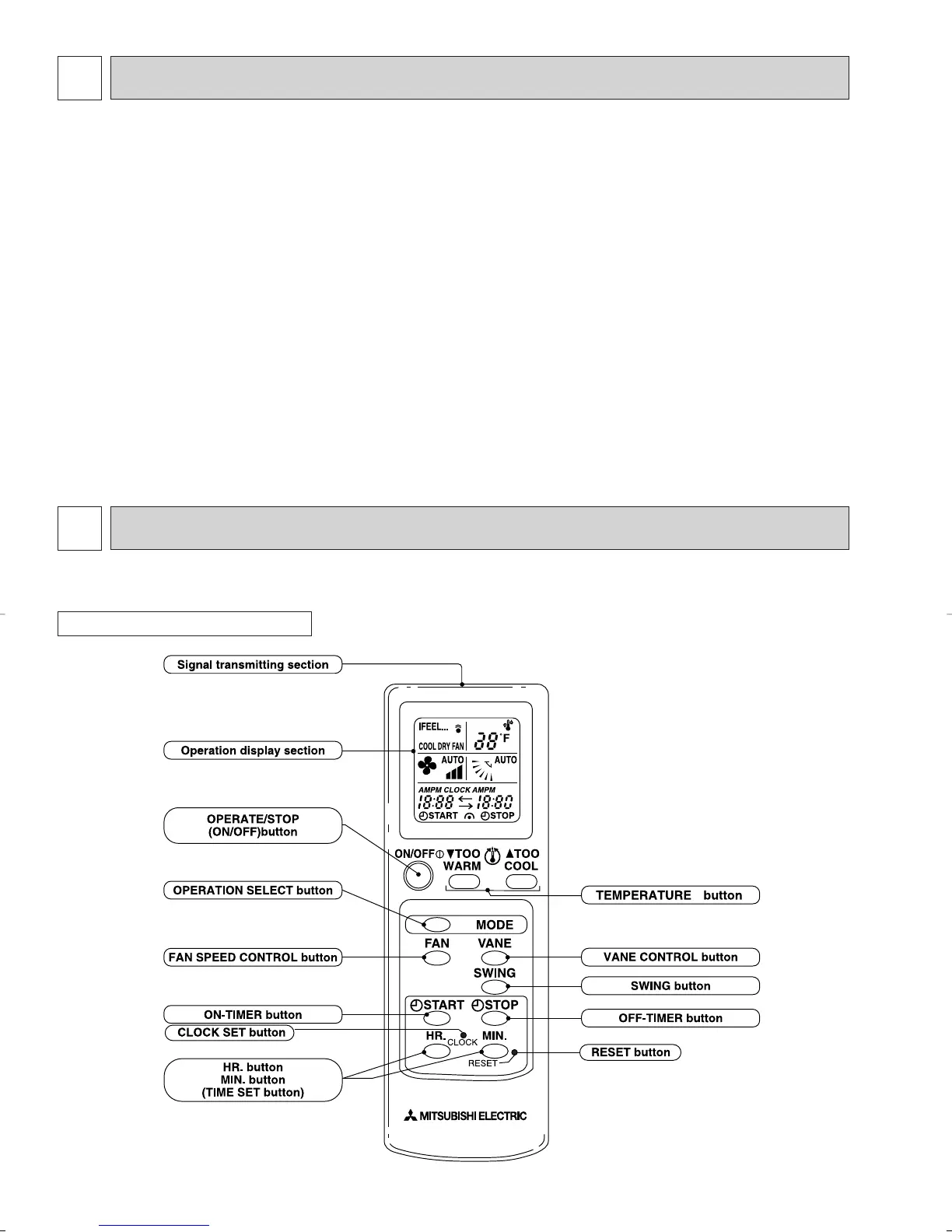

REMOTE CONTROLLER
MS09EW ➔ MS09NW
1. Indoor unit has changed.
(Outline dimension changes. 31-1/8”o5-3/8”o14-3/16”(WoDoH)
➔32-1/16”o7-3/16”o10-13/16(WoDoH)
2. Outdoor unit has changed.
(Outline dimension changes. 29-15/16”o9-1/16”o21-1/4”(WoDoH)➔30-11/16”o10-1/16”o21-1/4”(WoDoH))
(Capillary tube, refrigerant and pipe had changed.)
3. Remote controller has changed. (The timer function was changed to the clock timer function.)
4. Indoor auto vane has been adopted.
MS12EN, MS15EN ➔ MS12NN, MS15NN
1. Indoor unit has changed.
(Outline dimension changes. 39-3/8”o7”o14-3/16”(WoDoH)➔39-15/16”o7-1/2”o12-5/8”(WoDoH))
2. Outdoor unit has changed.
(Outline dimension changes. 33-1/2”o11-7/16”o23-7/8”(WoDoH)➔33-7/16”o11-7/16”o23-13/16”(WoDoH))
(Capillary tube, refrigerant and pipe had changed.)
3. Remote controller has changed. (The timer function was changed to the clock timer function.)
4. The swing mode was addedd to indoor auto vane.
MS17NN
1. New Model
TECHNICAL CHANGES
