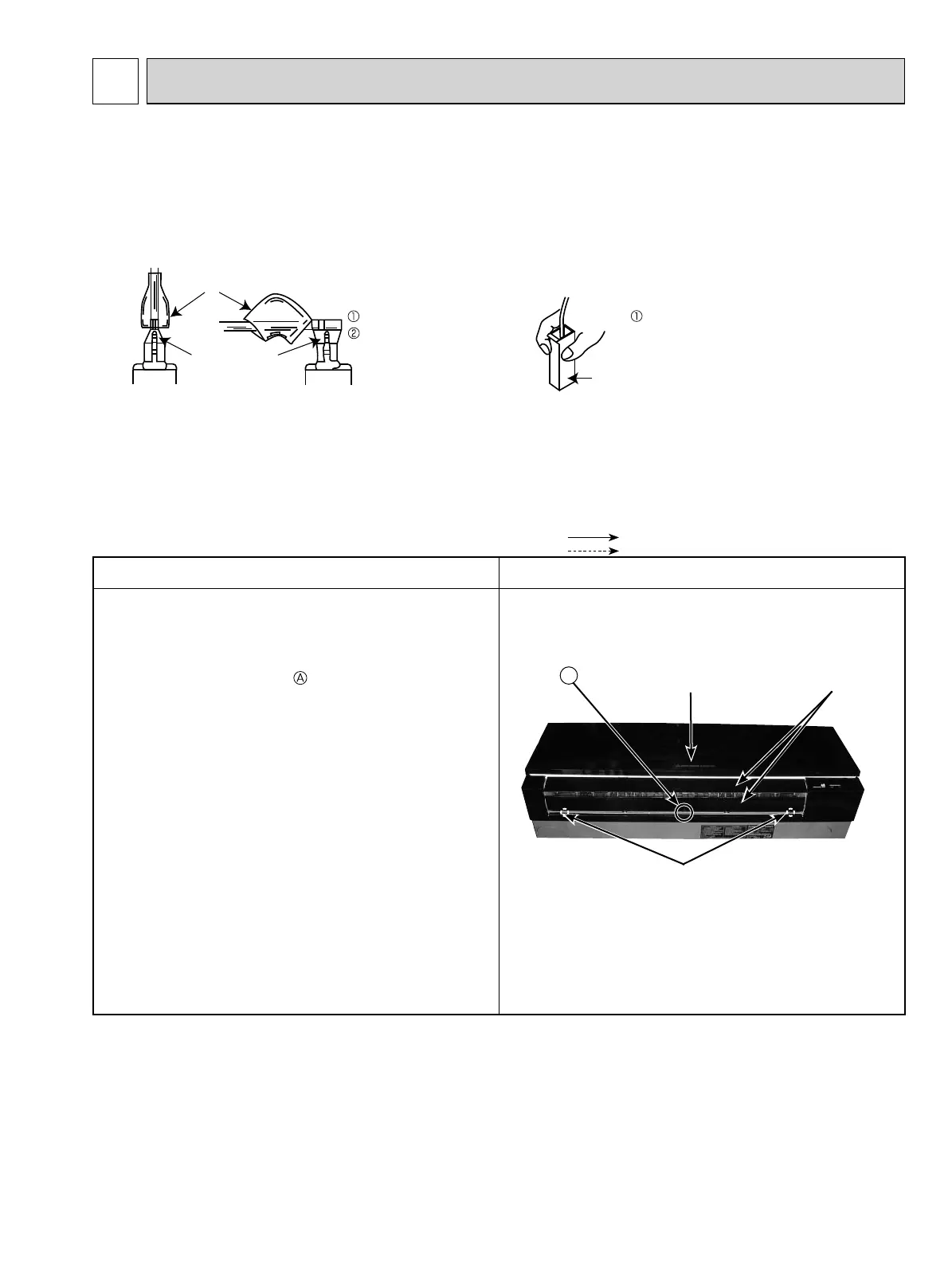

31
(1) Slide the sleeve and check if there is a locking lever or not. (2) The terminal with this connector shown below
has the locking mechanism.
Slide the sleeve.
Pull the terminal while
pushing the locking
lever.
Hold the sleeve, and
pull out the terminal
slowly.
Connector
Sleeve
Locking lever
<Dataching method of the terminal with locking mechanism>
The terminal which has the locking mechanism can be detached as shown below.
There are 2 types of terminals with locking mechanisms.
The terminal without locking mechanism can be detached by pulling it out.
Check the shape of the terminal before detaching.
DISASSEMBLY INSTRUCTIONS
10
10-1.
MSZ-EF09NAW MSZ-EF12NAW MSZ-EF15NAW MSZ-EF18NAW
MSZ-EF09NAB MSZ-EF12NAB MSZ-EF15NAB MSZ-EF18NAB
MSZ-EF09NAS MSZ-EF12NAS MSZ-EF15NAS MSZ-EF18NAS
NOTE: Turn OFF power supply before disassembly.
OPERATING PROCEDURE PHOTOS/FIGURES
1. Removing the panel
(1) Remove the horizontal vanes.
(2) Remove the screw caps of the panel. Remove the
screws of the panel.
(3) Unhook the lower part (
) of the panel.
(4) First, hold the lower part of the right end of the panel,
and hold the lower part of the left end of the panel.
(5) Pull the panel slightly toward you, and then remove
the panel by pushing it upward.
Photo 1
Photo: MSZ-EF•NAB
Screws of
the panel
Front panel Horizontal vanes
A
: Indicates the visible parts in the photos/fi gures.
: Indicates the invisible parts in the photos/fi gures.
To Next Page
