Fixing the indoor coil thermistor
There are 2 forms of parts for fixing the indoor coil thermistor.
NOTE:
Take care to avoid loss and accidental falling of the clip-shape part inside the unit.
Mount the clip-shape part on the marked position.
Do not pull the lead wire when removing the indoor coil thermistor.
Holder shapeClip shape
When fixing the indoor coil thermistor
to the clip-shape/holder-shape part, the
lead wire should point down.

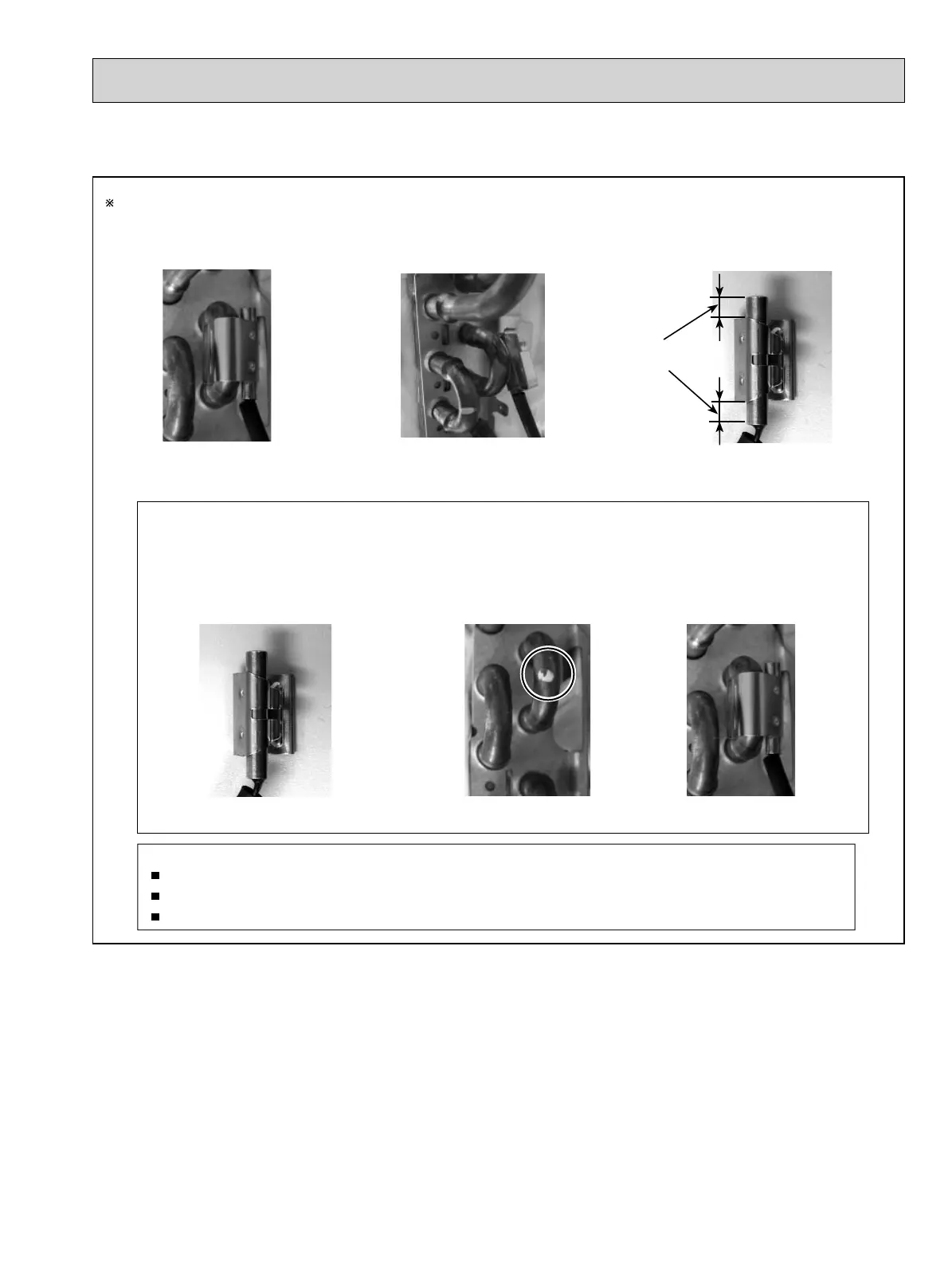

1. Set the indoor coil
thermistor in the center
of the clip-shape part.
2. Check the (marked)
mounting position.
3. Mount the clip-
shape part.
Position and procedure for mounting the clip-shape part
About the
same length
OBH736A
