Main fuse block

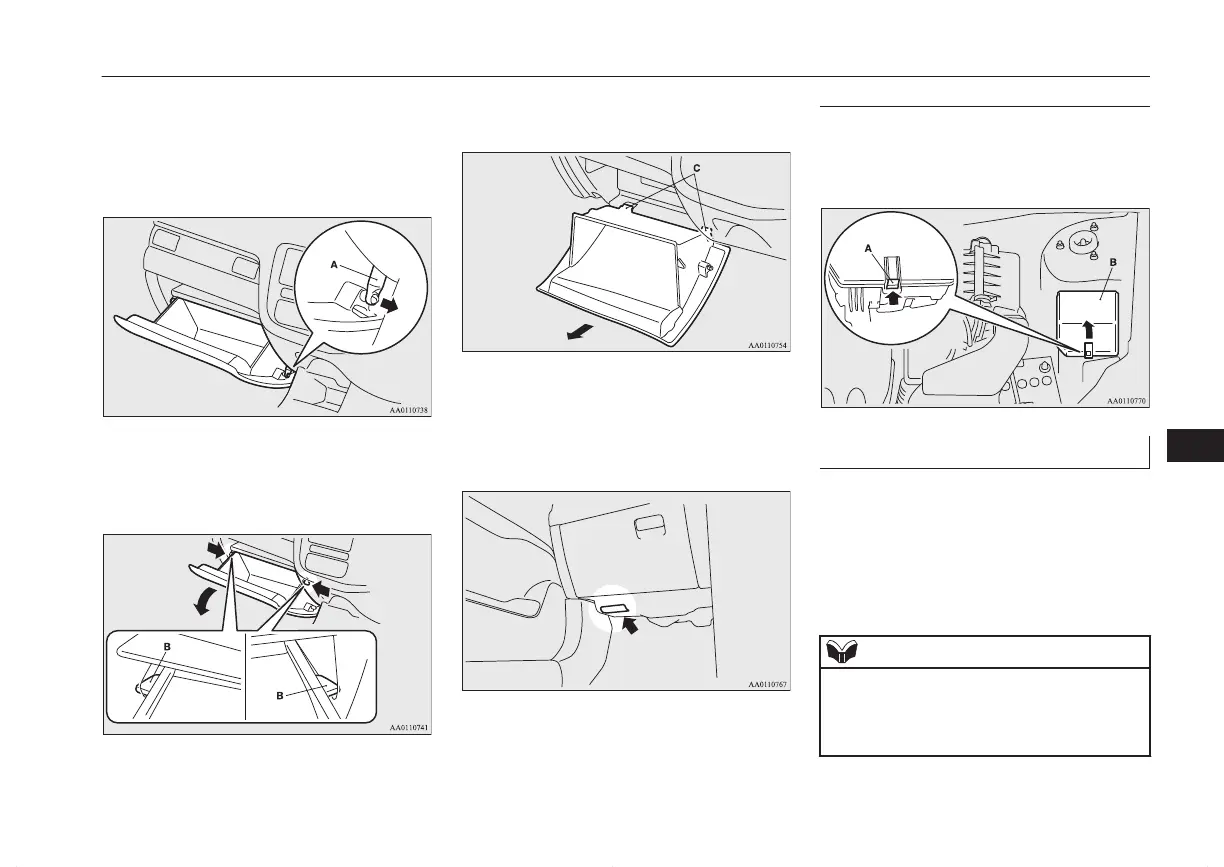

1. Open the glove box.
2. Uncouple the rod (A) on the right side of
the glove box.
3. While pressing the side of the glove box,
unhook the left and right hooks (B) and
lower the glove box.
4. Remove the glove box fastener (C), and
then remove the glove box.
Sub fuse block
When changing the fuse of the sub fuse
block, perform it with the hole of the bottom
cover.
Engine compartment
In the engine compartment, the fuse block is
located as shown in the illustration. While
pressing the tab (A), pull up the cover (B).
Fuse load capacity
E01007700684
The fuse capacity and the names of electrical
systems protected by the fuses are indicated
on the inside of the fuse lid (LHD vehicles),
the back side of the glove box (RHD vehi-
cles) and inside of the fuse block cover (in-
side of the engine compartment).
NOTE
l
Spare fuses are provided on the cover of fuse
block in the engine compartment. Always
use a fuse of the same capacity for replace-
ment.
Fuses
10-19
OGFE16E1
