Mitsubishi Outlander 2015 - Page 426

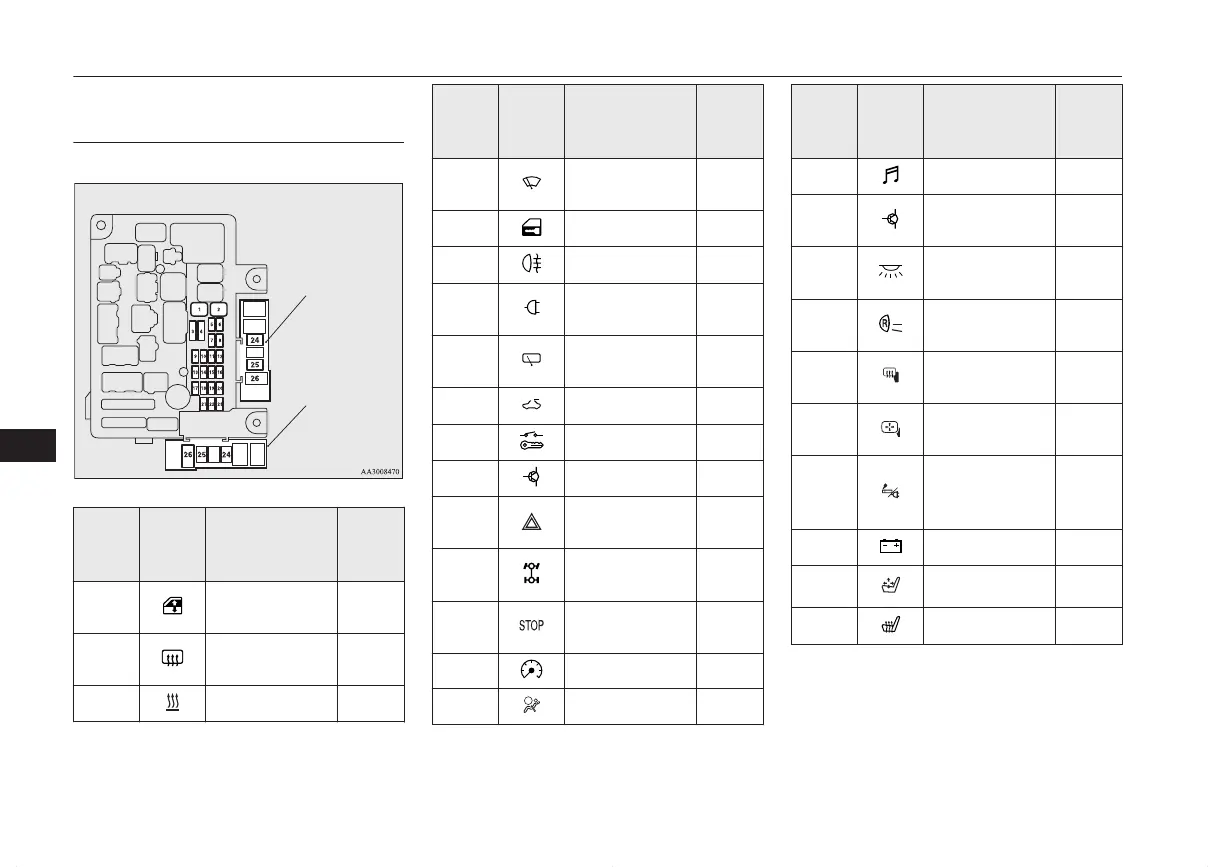

Passenger compartment fuse lo-
cation table
E01007901902
Main fuse block
Sub fuse block
(LHD)
Sub fuse block
(RHD)
No.
Sym-
bol
Electrical sys-
tem
Ca-
paci-
ties
1
Electric window
control
30 A
*
2
Rear window
demister
30 A
*
3 Heater 30 A
*
: Fusible link
No.
Sym-
bol
Electrical sys-
tem
Ca-
paci-
ties
4
Windscreen
wipers
30 A
5 Door locks 20 A
6 Rear fog lamp 10 A
7
Accessory sock-
et
15 A
8
Rear window
wiper
15 A
9 Sunroof 20 A
10 Ignition switch 10 A
11 Option 10 A
12
Hazard warning
flasher
15 A
13
4-wheel drive
system
10 A
14
Stop lamps
(Brake lamps)
15 A
15 Instruments 10 A
16 SRS airbag 7.5 A
*
: Fusible link
No.
Sym-
bol
Electrical sys-
tem
Ca-
paci-
ties
17 Radio 15 A
18
Control unit re-
lay
7.5 A
19
Interior lamps
(Room lamps)
15 A
20
Reversing lamps
(Backup lamps)
7.5 A
21
Heated door
mirror
7.5 A
22
Outside rear-
view mirrors
10 A
23
Cigarette lighter/
Accessory sock-
et
15 A
24 Charge 7.5 A
25 Power seat
30 A
*
26 Heated seat 30 A
*
: Fusible link
l
Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l
The table above shows the main equip-
ment corresponding to each fuse.
Fuses
10-20
OGFE16E1
Maintenance
10
