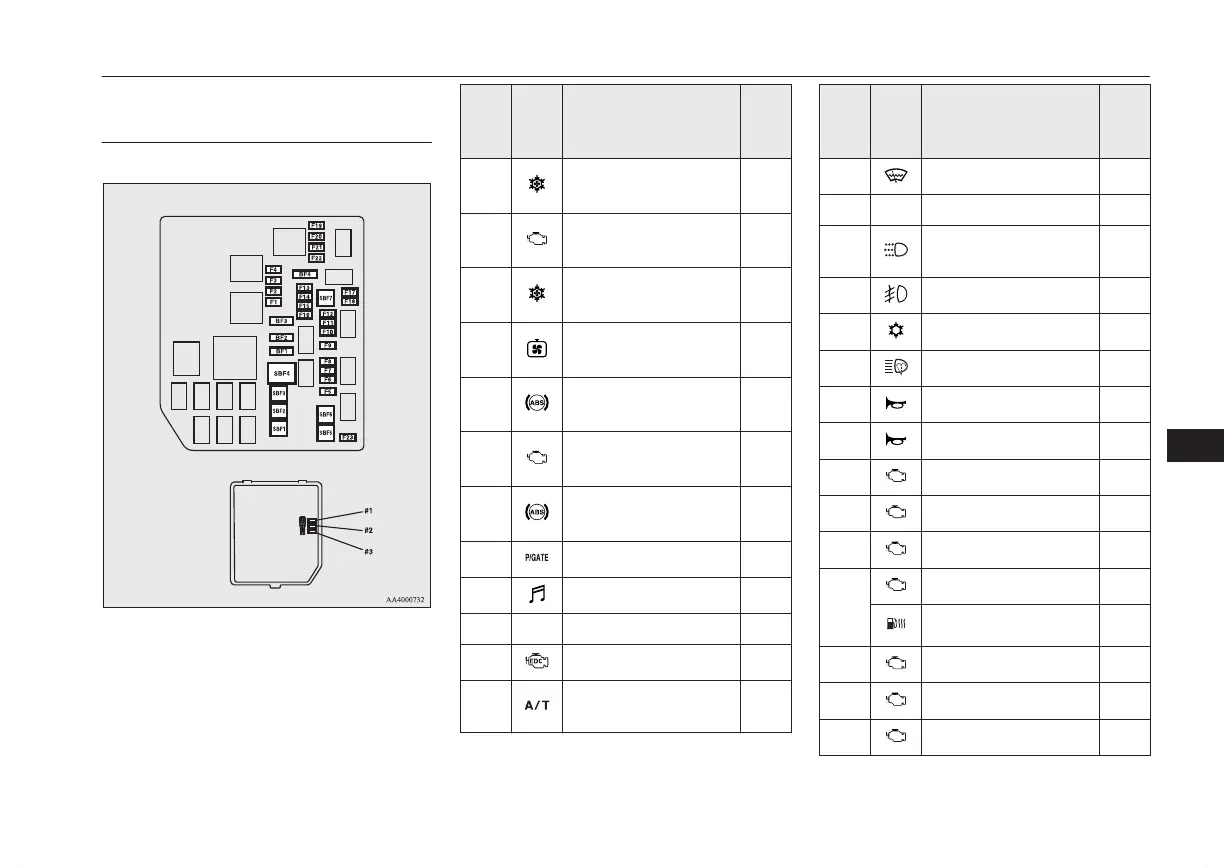

Engine compartment fuse loca-
tion table
E01008002011
Behind of the fuse block cover
No.
Sym-
bol
Electrical system
Ca-
paci-
ties
SBF1
Air conditioning con-
denser fan motor
30
A
*
SBF2 Starter
30
A
*
SBF3
Air conditioning con-
denser fan motor
30
A
*
SBF4 Radiator fan motor
40
A
*
SBF5 Anti-lock brake system
40
A
*
SBF6 VLC
40
A
*
SBF7 Anti-lock brake system
30
A
*
BF1 Electric tailgate 30 A
BF2 Audio system amp 30 A
BF3 IOD IOD 30 A
BF4 Diesel 30 A
F1
Automatic transmis-
sion
20 A
*
: Fusible link
No.
Sym-
bol
Electrical system
Ca-
paci-
ties
F2 Wiper de-icer 15 A
F3 — — —
F4
Daytime running
lamps
10 A
F5 Front fog lamps 15 A
F6 Air conditioner 10 A
F7 Headlamp washer 20 A
F8 Security horn 20 A
F9 Horn 10 A
F10 ETV 15 A
F11 Alternator 7.5 A
F12 Engine 7.5 A
F13
ENG/POWER 20 A
Fuel line heater 25 A
F14 Fuel pump 15 A
F15 Ignition coil 10 A
F16 ENG/POWER 10 A
*
: Fusible link
Fuses
10-21
OGFE16E1
Maintenance
10
