Passenger compartment (RHD vehicles)

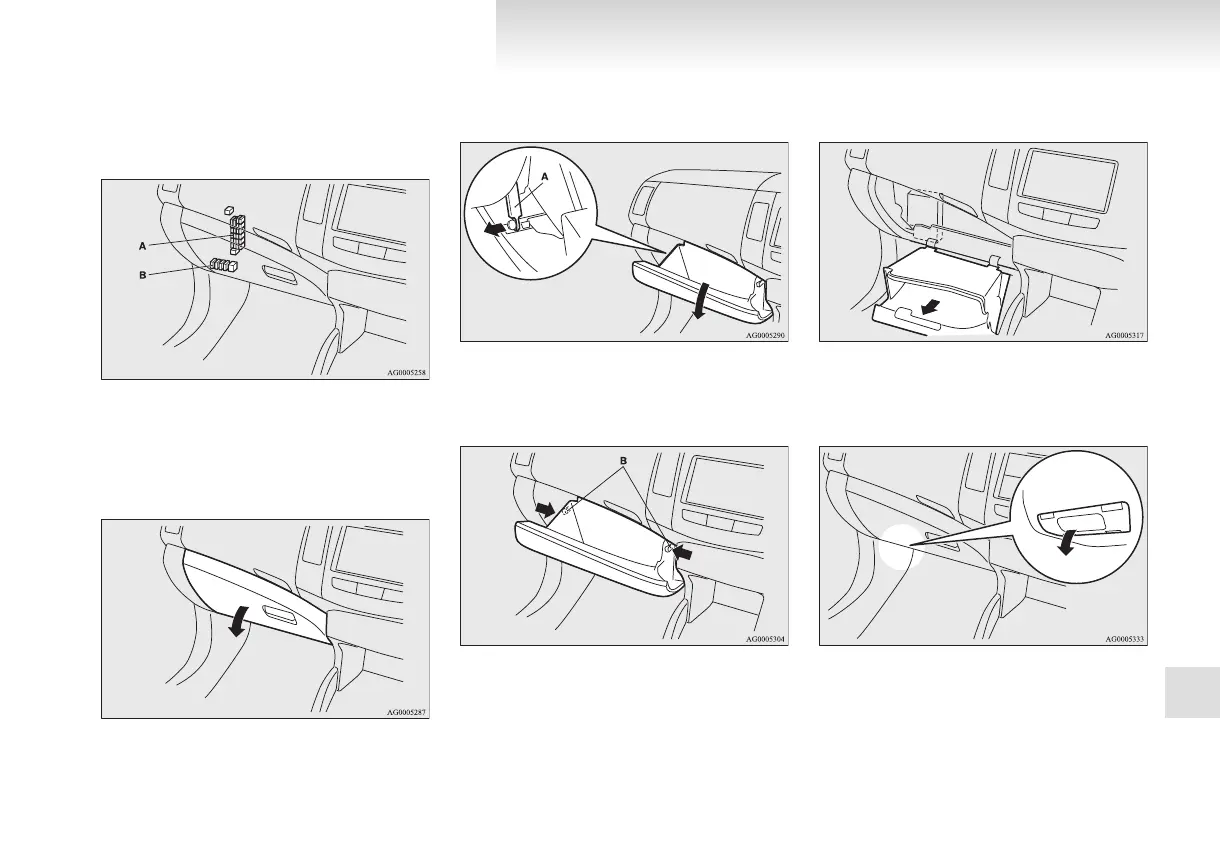

The fuse blocks in the passenger compartment are
located behind the lower glove box at the position
shown in the illustration.
A- Main fuse block
B- Sub fuse block
Main fuse block
1. Open the lower glove box.
2. Move the rod (A) on the left side of the low-
er glove box to the left side of the box.
3. While pressing the side of the lower glove
box, unhook the left and right hooks (B) and
lower the lower glove box.
4. Remove the lower glove box fastener, and
then remove the lower glove box.
Sub fuse block
1. Remove the cover from the bottom of the
glove box.
