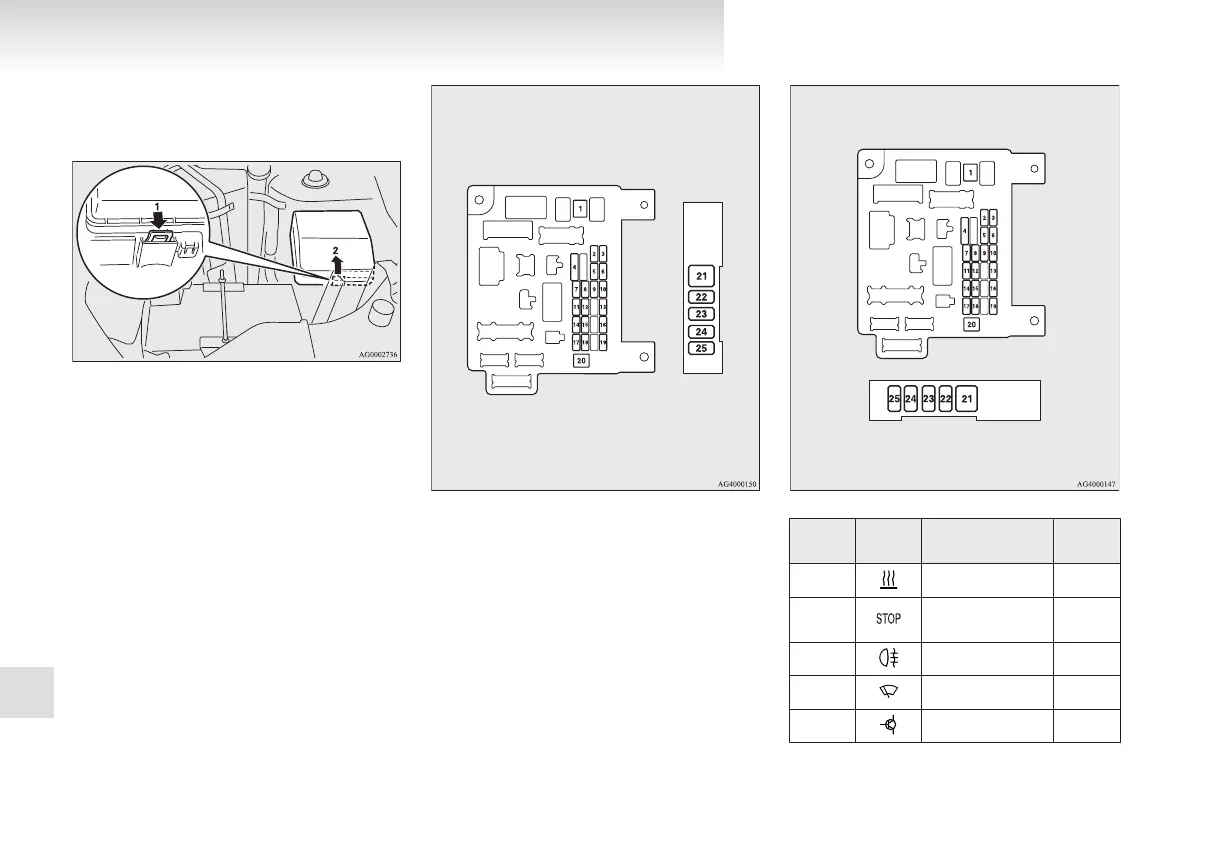

Engine compartment
In the engine compartment, the fuse block is loca-
ted as shown in the illustration.
1- Push the knob.
2- Remove the cover.
Fuse load capacity
E01007700596
The fuse capacity and the names of electrical sys-
tems protected by the fuses are indicated on the in-
side of the personal box (LHD vehicles), the inside
of the lower glove box (RHD vehicles) and inside
of the fuse block cover (inside of the engine com-
partment).
Passenger compartment fuse location table
NOTE
l
Spare fuses are provided on the lid of the
fuse block in the engine compartment. Al-
ways use a fuse of the same capacity for re-
placement.
Passenger compartment fuse location (LHD)
Main fuse block Sub fuse block
Passenger compartment fuse location (RHD)
Sub fuse block
Main fuse block
No. Symbol Electrical system
Capaci-
ties
1 Heater
30 A
*
2
Stop lamps
(Brake lamps)
15 A
3 Rear fog lamp 10 A
4 Windscreen wipers 30 A
5 Option 10 A
*
: Fusible link
Maintenance
8-20
8
