No. Symbol Electrical system
Capaci-
ties
6 Door locks 20 A
7 Radio 15 A
8 Control unit relay 7.5 A
9
Interior lamps
(Room lamps)
15 A
10
Hazard warning
flasher
15 A
11 Rear window wiper 15 A
12 Instruments 7.5 A
13
Cigarette lighter/
Accessory socket
15 A
14 Ignition switch 10 A
15 Sunroof 20 A
16
Outside rear-view
mirrors
10 A
17
4-wheel drive sys-
tem
10 A
18
Reversing lamps
(Backup lamps)
7.5 A
19 Accessory socket 15 A
20
Electric window
control
30 A
*
21
Rear window de-
mister
30 A
*
*
: Fusible link
No. Symbol Electrical system
Capaci-
ties
22 Heated door mirror 7.5 A
23 AC power supply 15 A
24 Power seats
25 (20)
A
25 Heated seat 30 A
*
: Fusible link
l
Some fuses may not be installed on your ve-
hicle, depending on the vehicle model or spec-
ifications.
l
The table above shows the main equipment
corresponding to each fuse.

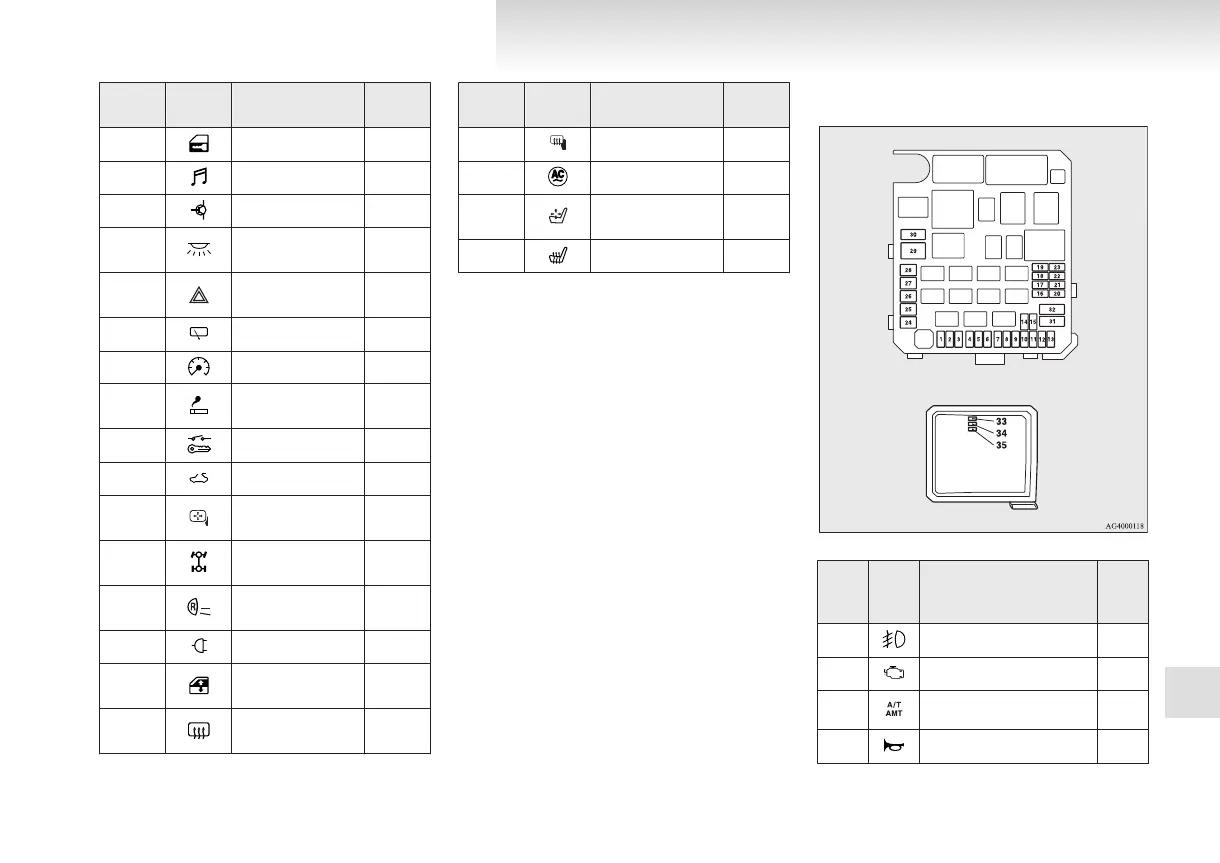

Engine compartment fuse location table
Engine compartment fuse location
Behind of the fuse block cover
No.
Sym-
bol
Electrical system
Ca-
paci-
ties
1 Front fog lamps 15 A
2 Engine 7.5 A
3 Automatic transmission 20 A
4 Horn 10 A
*
: Fusible link
Maintenance
8-21
8
