Chapter 11 Body
Vehicles
equipped
with power window

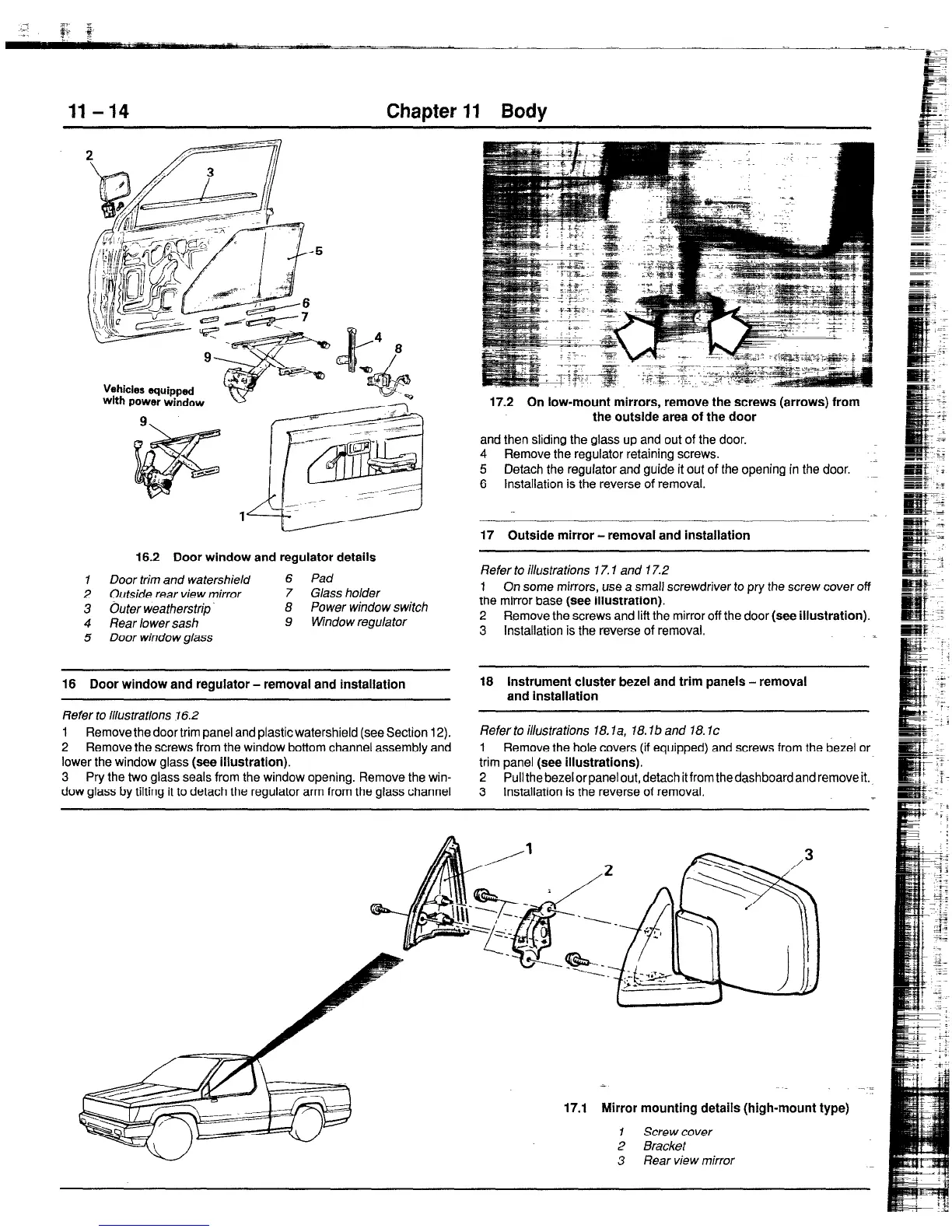

16.2 Door window and regulator details
I Door trim and watershield
6 Pad
2 Outside rear view mirror
7 Glass holder
3 Outer weatherstrip
8 Power window switch
4 Rear lower sash
9 Window regulator
5 Door window glass
16 Door window and regulator - removal and installation
Refer to illustrations 16.2
I Remove the door trim panel and plastic watershield (see Section 12).
2 Remove the screws from the window bottom channel assembly and
lower the window glass (see illustration).
3 Pry the two glass seals from the window opening. Remove the win-
dow glass by tilting it to detach the regulator arm from the glass channel
17.2 On low-mount mirrors, remove the screws (arrows) from
the outside area of the door
and then sliding the glass up and out of the door.
4 Remove the regulator retaining screws.
; 5 Detach the regulator and guide it out of the opening in the door.
6 Installation is the reverse of removal.
17 Outside mirror - removal and installation
Refer to illustrations 17.1 and 17.2
1 On some mirrors, use a small screwdriver to pry the screw cover off
the mirror base (see illustration).
2 Remove the screws and lift the mirror off the door (see illustration).
3 Installation is the reverse of removal.
=
18 Instrument cluster bezel and trim panels - removal
and installation
Refer to illustrations 18. la, 18. lb and 18. lc
1 Remove the hole covers (if equipped) and screws from the bezel or
trim panel (see illustrations).
2 Pullthebezelorpanelout,detachitfromthedashboardandremoveit.
3 Installation is the reverse of removal.
17.1 Mirror mounting details (high-mount type)
1 Screw cover
2 Bracket
3 Rear view mirror
