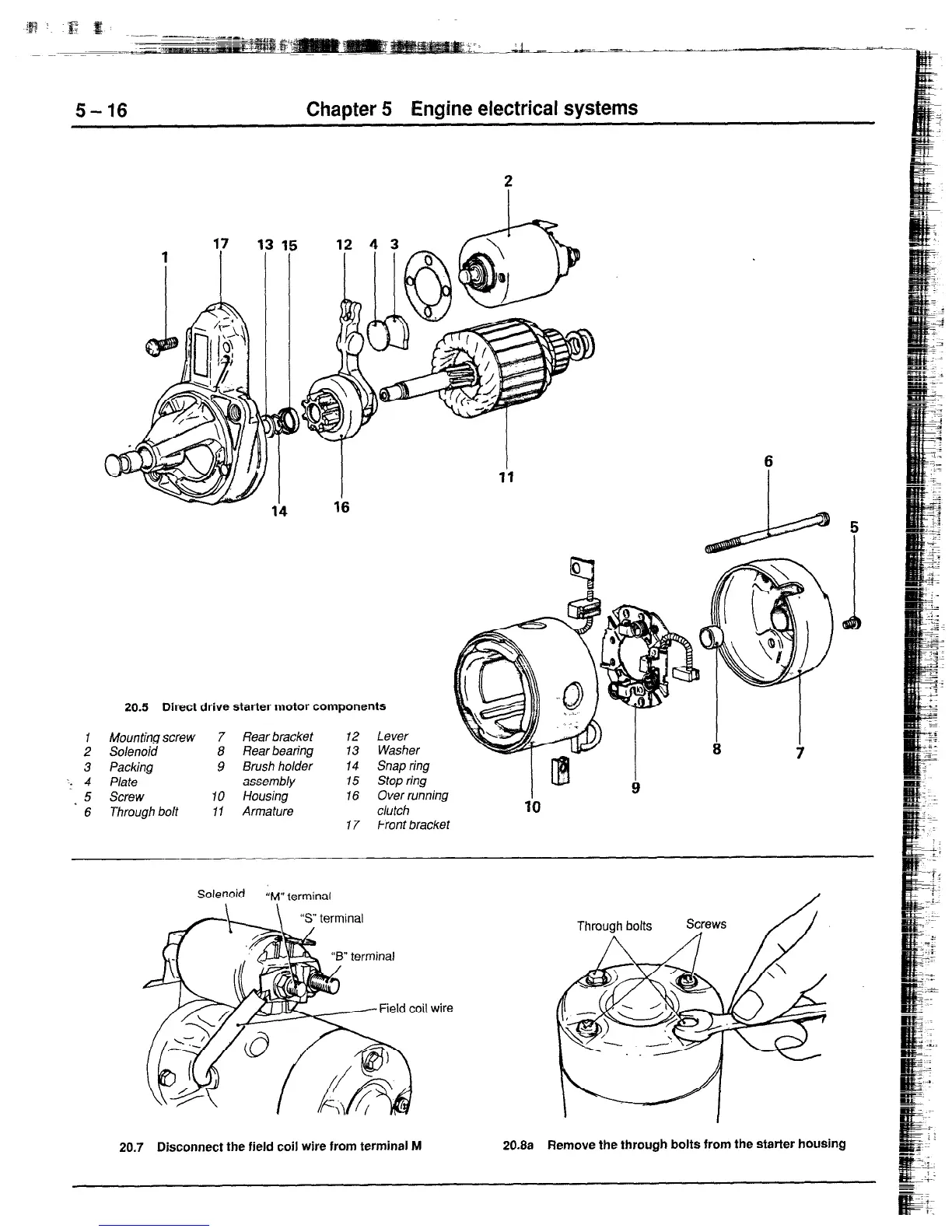

5-16 Char>ter 5 Enaine electrical systems
1 Mounting screw 7
2 Solenoid 8
3 Packing 9
iz 4 Plate
-5
Screw IO
6 Through bolt I I
20.5 Direct drive starter motor components
I ’
8
I
7
Rear bracket
12 Lever
Rear bearing 13 Washer
Brush holder
I4 Snap ring
assembly
15 Stop ring
Housing
16 Over running
Armature
clutch
I? Front bracket
Solenoid
“M” terminal
20.7 Disconnect the field coil wire from terminal M
20.8a Remove the through bolts from the starter housing
