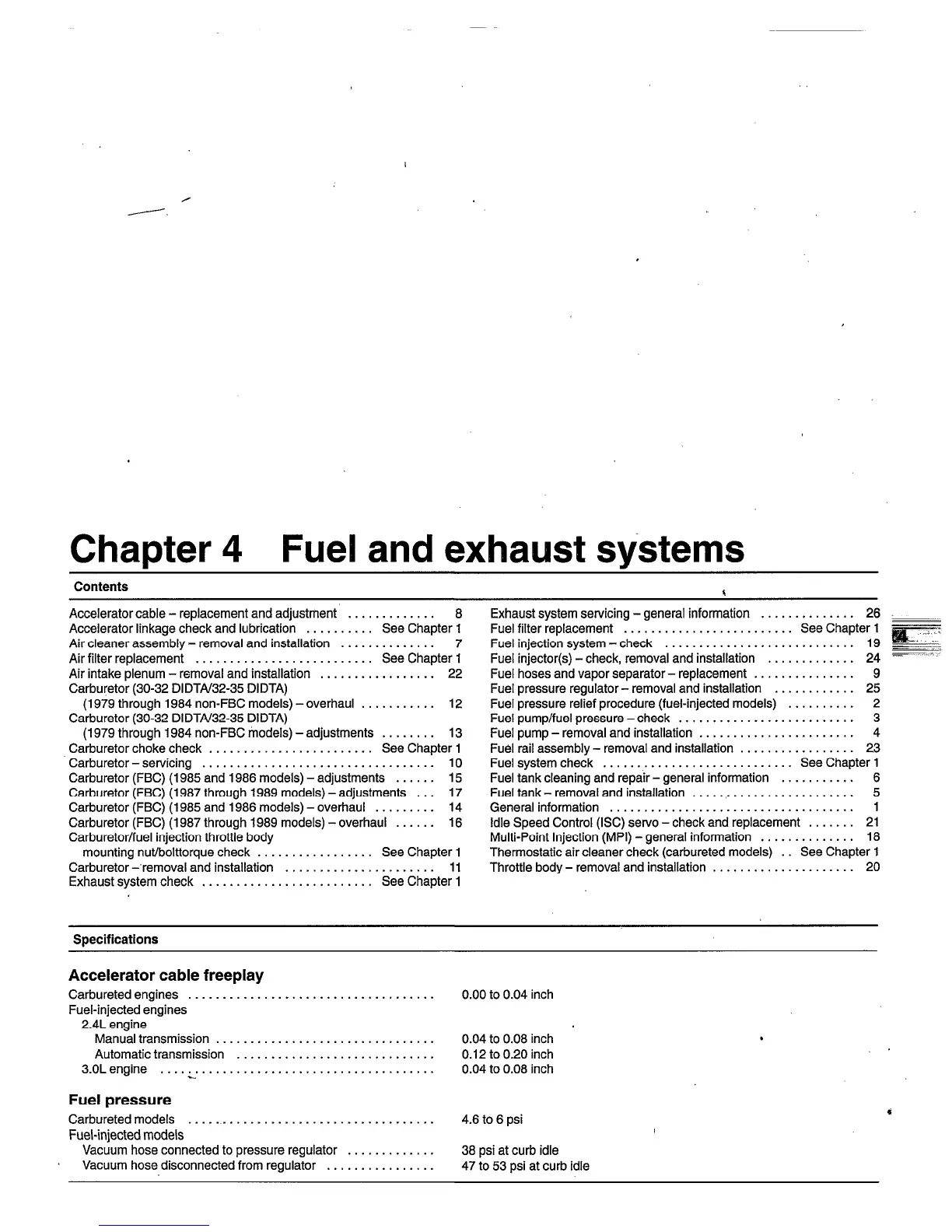

Chapter 4 Fuel and exhaust systems
Contents
Accelerator cable - replacement and adjustment’ ............. 8
Accelerator linkage check and lubrication .......... See Chapter 1
Air cleaner assembly - removal and installation .............. 7
Air filter replacement .......................... See Chapter 1
Air intake plenum - removal and installation ................. 22
Carburetor (30-32 DIDTA/32-35 DIDTA)
(1979 through 1984 non-FBC models) - overhaul ........... 12
Carburetor (30-32 DIDTA/32-35 DIDTA)
(1979 through 1984 non-FBC models) -adjustments ........ 13
Carburetor choke check ........................ See Chapter 1
Carburetor - servicing .................................. 10
Carburetor (FBC) (1985 and 1986 models) -adjustments ...... 15
Carburetor (FBC) (1987 through 1989 models) - adjustments ... 17
Carburetor (FBC) (1985 and 1988 models) - overhaul ......... 14
Carburetor (FBC) (1987 through 1989 models) - overhaul ...... 16
Carburetor/fuel injection throttle body
mounting nut/bolttorque check ................. See Chapter 1
Carburetor --removal and installation ...................... 11
Exhaust system check ......................... See Chapter 1
Exhaust system servicing - general information .............. 26
Fuel filter replacement ......................... See Chapter 1
Fuel injection system - check ............................ 19
Fuel injector(s) -check, removal and installation ............. 24
Fuel hoses and vapor separator - replacement ............... 9
Fuel pressure regulator - removal and installation ............ 25
Fuel pressure relief procedure (fuel-injected models) .......... 2
Fuel pump/fuel pressure -check .......................... 3
Fuel pump - removal and installation ....................... 4
Fuel rail assembly - removal and installation ................. 23
Fuel system check ............................ See Chapter 1
Fuel tank cleaning and repair - general information ........... 6
Fuel tank - removal and installation ........................ 5
General information .................................... 1
Idle Speed Control (ISC) servo-check and replacement ....... 21
Multi-Point Injection (MPI) - general information
.............. 18
Thermostatic air cleaner check (carbureted models) . . See Chapter 1
Throttle body - removal and installation ..................... 20
Specifications
Accelerator cable freeplay
Carbureted engines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel-injected engines
2.4L engine
0.00 to 0.04 inch
Manual transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.04 to 0.08 inch
Automatic transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.12 to 0.20 inch
3.OLengine . . . ..-................................... 0.04 to 0.08 inch
Fuel pressure
.
Carbureted models _ . . _ _ _ . . . . _ . _ . _ . _ . _ _ _ _ _ _ . _ . . . . _ . . . . . 4.6 to 6 psi
*
Fuel-injected models
/
Vacuum hose connected to pressure regulator . . . . . . . . . . . . .
38 psi at curb idle
Vacuum hose disconnected from regulator . . . . . . . . . . . . . . . .
47 to 53 psi at curb idle
