Chapter 4 Fuel and exhaust systems

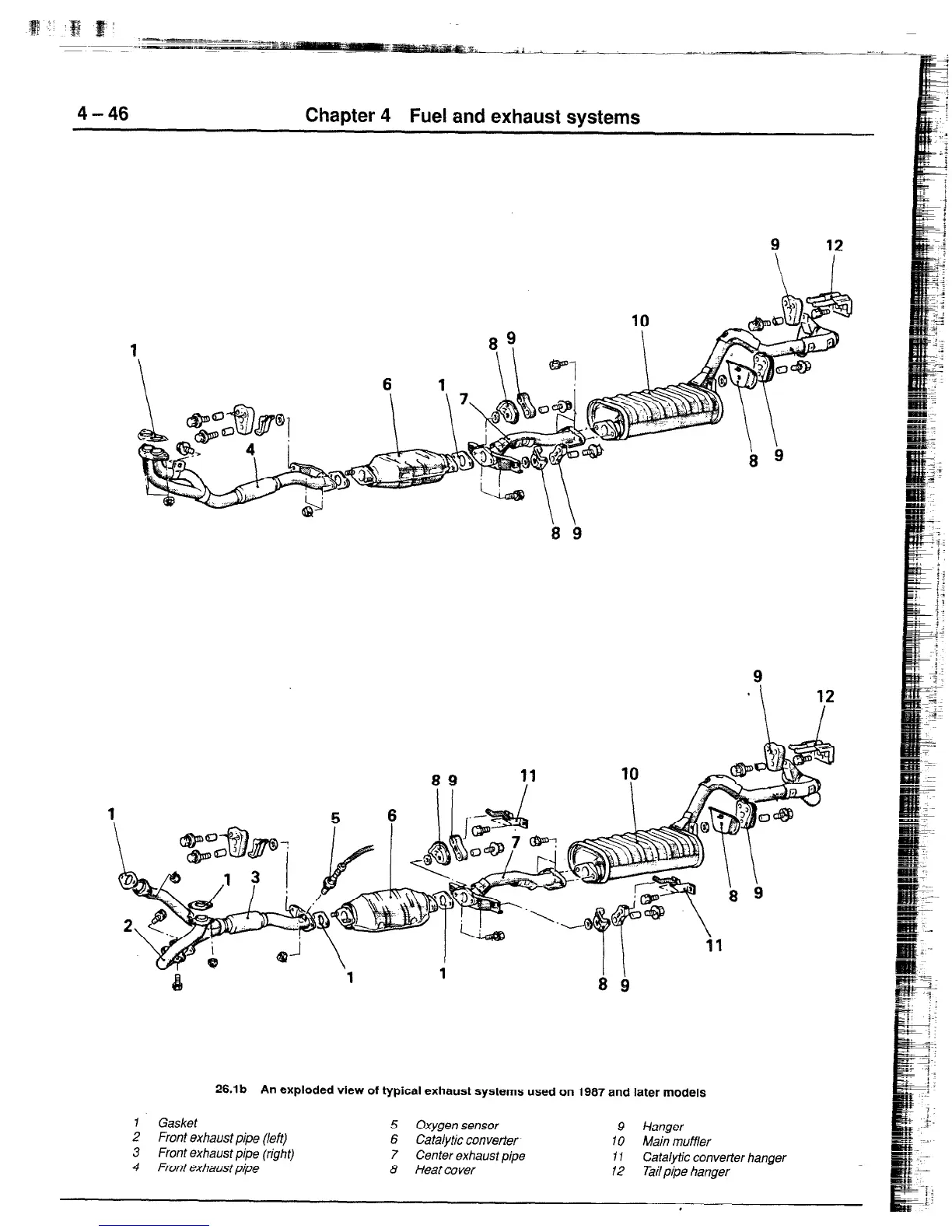

26.1 b An exploded view of typical exhaust systems used on 1987 and later models
1
Gasket
2 Front exhaust pipe (left)
5 Oxygen sensor
9 Hanger
10 Main muffler
3 Front exhaust pipe (right)
6 Catalytic converter
7
11
4 Front exhaust pipe
Center exhaust pipe
8 Heat cover
Catalytic converter hanger
12 Tail pipe hanger
