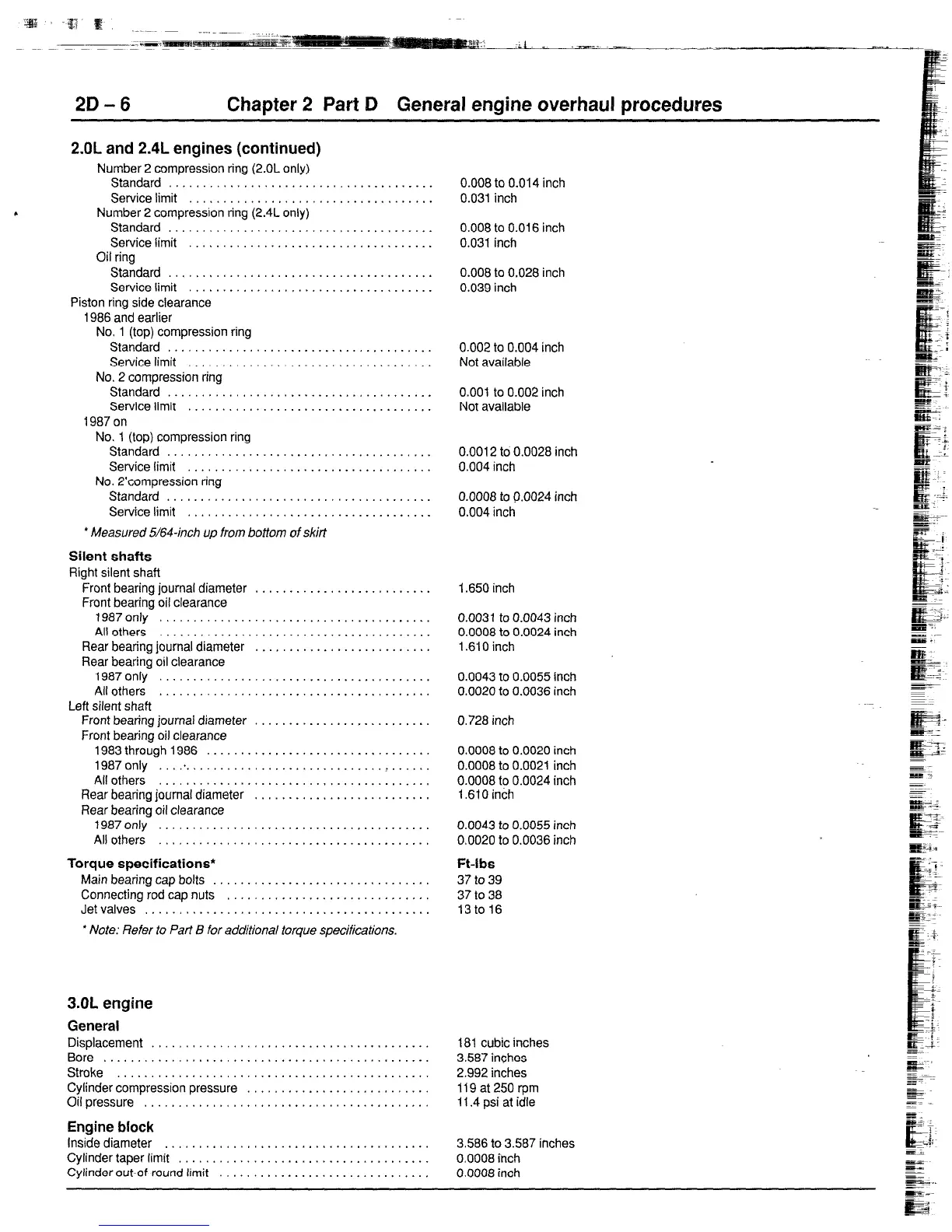

2D-6 Chapter 2 Part D General engine overhaul procedures
2.OL and 2.4L engines (continued)
Number 2 compression ring (2.OL only)
Standard .......................................
Servicelimit ....................................
Number 2 compression ring (2.4L only)
Standard .......................................
Servicelimit ....................................
Oil ring
Standard .......................................
Servicelimit ....................................
Piston ring side clearance
1986 and earlier
No. 1 (top) compression ring
Standard .......................................
Servicelimit ....................................
No. 2 compression ring
Standard .......................................
Servicelimit ....................................
1987 on
No. 1 (top) compression ring
Standard .......................................
Servicelimit ....................................
No. 2’compression ring
Standard .......................................
Servicelimit ....................................
l Measured 5164~inch up from bottom of skirt
Silent shafts
Right silent shaft
Fronf bearing journal diameter ..........................
Front bearing oil clearance
1987only ........................................
All others ........................................
Rear bearing journal diameter ..........................
Rear bearing oil clearance
19870nly ........................................
All others ........................................
Lefl silent shaft
Front bearing journal diameter ..........................
Front bearing oil clearance
1983fhrough1986 .................................
19870nly .........................................
All others ........................................
Rear bearing journal diameter ..........................
Rear bearing oil clearance
1987only ........................................
All others ........................................
Torque specifications*
Mainbeanngcapbolfs ................................
Connectingrodcapnuts ..............................
Jetvalves ..........................................
l Note: Refer to Part i3 for additional torque specifications.
3.OL engine
General
Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder compression pressure . . . . . . . . . . . . .
Oiipressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine block
Inside diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder taper limit . . . . . . . . . . . . . . . . . . . . . . . _
Cylinder out-of-round limit . . . . . . . . . . . . . . . . .
0.008 to 0.014 inch
0.031 inch
0.008 to 0.016 inch
0.031 inch
0.008 to 0,028 inch
0.039 inch
0.002 to 0.004 inch
Not available
0.001 to 0.002 inch
Not available
0.0012 to 0.0028 inch
0.004 inch
0.0008 to 0.0024 inch
0.004 inch
1.650 inch
0.0031 to 0.0043 inch
0.0008 to 0.0024 inch
1.610 inch
0.0043 to 0.0055 inch
0.0020 to 0.0036 inch
0.728 inch
0.0008 to 0.0020 inch
0.0008 to 0.0021 inch
0.0008 to 0.0024 inch
1.6lOinch
0.0043 to 0.0055 inch
0.0020 to 0.0036 inch
Ft-lbs
37 to 39
37 to 38
13to16
181 cubic inches
3.587 inches
2.992 inches
119at250rpm
11.4 psi at idle
3.586 to 3.587 inches
0,0008 inch
0.0008 inch
