Part II: Installation
Front Control Panel Functions
Front Control Panel
Many remote control buttons are duplicated on the front control panel. These buttons are
shaded in gure 1. Please see Remote Control Functions, pages 54-61, for an explanation
of their usage.

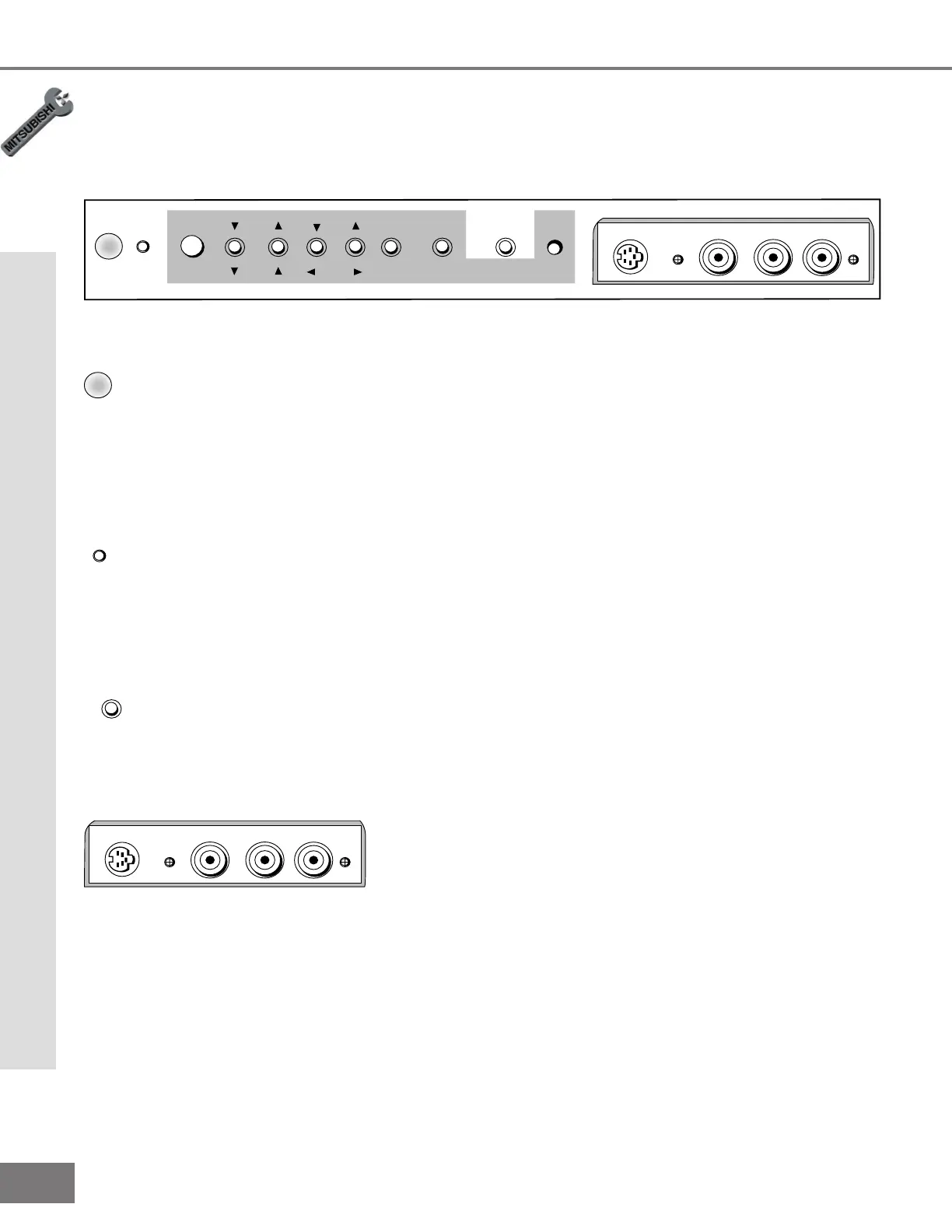

Figure 1. Buttons can also be used for ADJUST, ENTER, MENU, and CANCEL, while in the menus.
IRIS
Intelligent Room Illumination (light) Sensor. Turn this feature on or off using the VIDEO
button on your remote control. When the IRIS is on, your TV will automatically adjust
picture contrast and brightness for the best picture based on your room lighting. When on,
do not block the sensor to ensure an optimum picture.
Timer
During normal operation, the timer light will glow steady green when the TV is on, and
not glow when the TV is off. When the TV is set to turn on at a specic time, the green
timer light will blink when the TV is off. Please see Timer Menu, pages 45-46, for timer
setup instructions.
A/V RESET
CANCEL
A/V Reset
Press this button to reset all nine A/V memory categories to the factory default settings.
Please see Audio/Video Settings Menu, page 49, for instructions.
S-VIDEO
VIDEO
L-AUDIO-R
Input 4
This input can be used for convenient connection of a camcorder or other video device
to the TV. Please note that you may connect to the S-VIDEO or VIDEO terminal, but
not to both.
