Part II: Installation

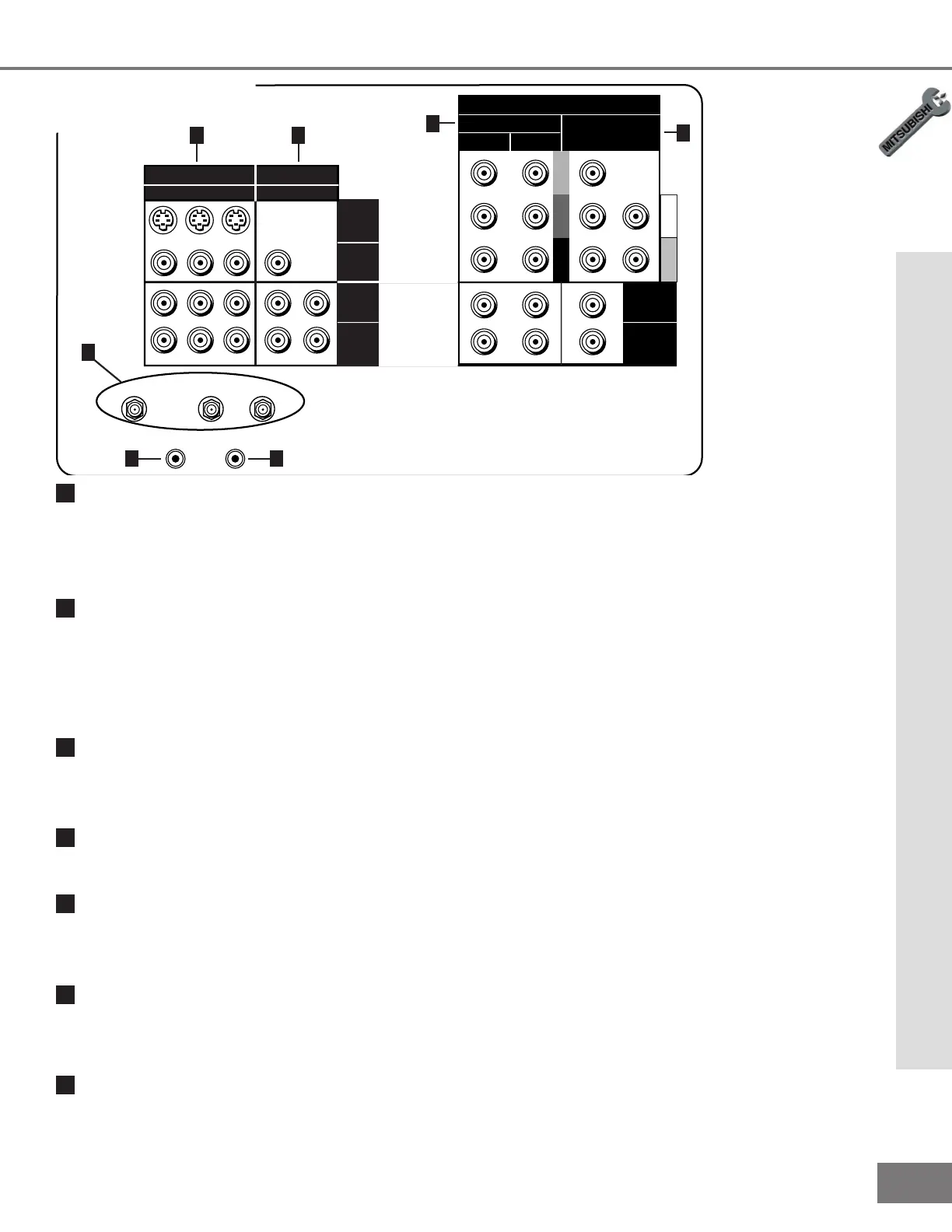

Back Panel Functions
Back Panel
1
Inputs 1-3
These inputs can be used for the connection of a VCR, Super VHS (S-VHS) VCR, laser disc
player, or other A/V device to the TV. Please note that with each input, you may connect to
the S-VIDEO or VIDEO terminal, but not both.
2
Output (Monitor and PIP)
The Monitor Output sends the TV audio and video signals, excluding component video or
DTV, to an A/V receiver or other equipment. The PIP output sends the PIP’s or POP’s
audio signal to an amplier or wireless headphones. If no PIP or POP is displayed, the PIP
output will send the main picture audio signal.
3
Antenna (ANT-A, LOOP OUT, and ANT-B)
ANT-A and ANT-B receive signals from VHF/UHF antennas or a cable system. LOOP OUT
sends the ANT-A signal out to another component, such as a cable box or VCR.
4
Active A/V Network
This interface connects Mitsubishi products that have an A/V network terminal.
5
IR Home Theater
Connecting an IR emitter here allows the TV to automatically change a Mitsubishi digital
A/V receiver’s input in a home theater setup.
6
Component Inputs 1-2
These inputs can be used for the connection of A/V equipment with component video
outputs, such as a DVD player. Please see Appendix B, page 65, for signal compatibility.
7
DTV Input
This input is used to connect a DTV receiver, and can be congured for HDTV component,
RGB, and RGB pluss H&V. Please see Appendix B, page 65, for signal compatibility.

Mitsubishi Platinum Series Specifications

General

Aspect Ratio	16:9
Contrast Ratio	10, 000:1
Resolution	1920 x 1080
Inputs	HDMI, Component, Composite, S-Video
Speakers	2 x 10W
