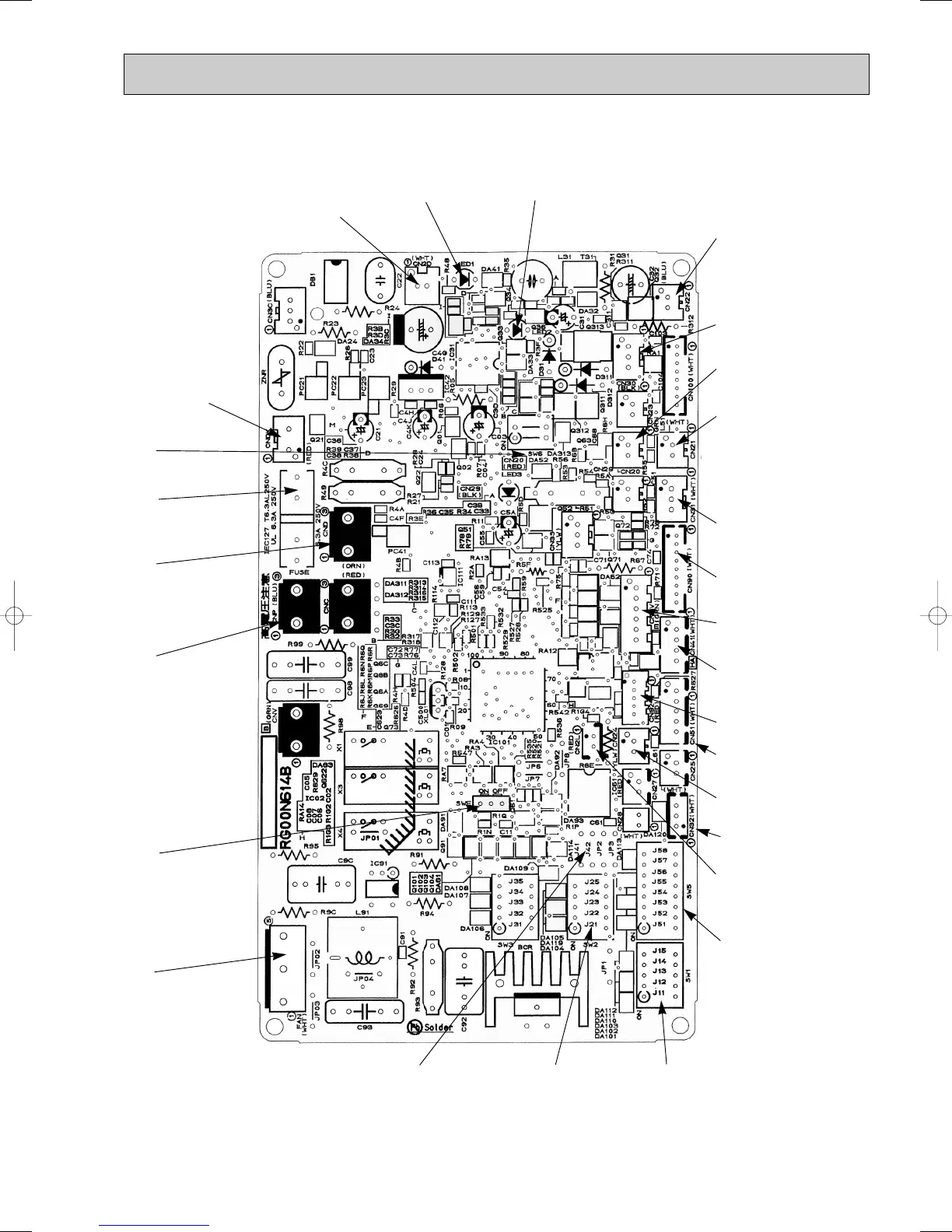

8-7-2. Indoor controller board
PLH-3AAK(H) PLH-4AAK(H) PLH-5AAK(H) PLH-6AAK(H)
CN2D
Connect to the indoor
power board (CN2S)
(12.5~13.7V DC)
CNDK
Connect to the indoor
power board (CNSK)
(220~240V AC)
FUSE
(6.3 A 250 V)
CN22
Connect to the terminal
block(TB5)
(Remote controller connecting
wire)
(10.4~14.6V DC)
CN21
Pipe temperature
thermistor/Liquid (TH2)
CN20
Room temperature
thermistor (TH1)
CN41
Connector (HA terminal-A)
CN6V
Vane motor output
(MV)
CN90
Connect to the wireless
remote controller board
(CNB)
CN31
Drain sensor (DS)
CN51
Centrally control
CN24
Heater output
(12V DC)
SW1
Model setting
SW2
Capacity setting
SWE
Emergency operation
LED1
Power supply (I.B)
LED2
Power supply (R.B)
FAN
Fan motor output
Jumper wire J41, J42
Pair number setting with
wireless remote controller
CND
Power supply input
(220~240V AC)
CNP
Drain-pump output
(DP)
(220~240V AC)
CN2L
Connector
(LOSSNAY)
CN30
Transmission
(indoor/outdoor)
CN105/CN92
(RED)
SW5
System setting
SW6
Emergency operation
CN32
Remote switch
