DISASSEMBLY INSTRUCTIONS12

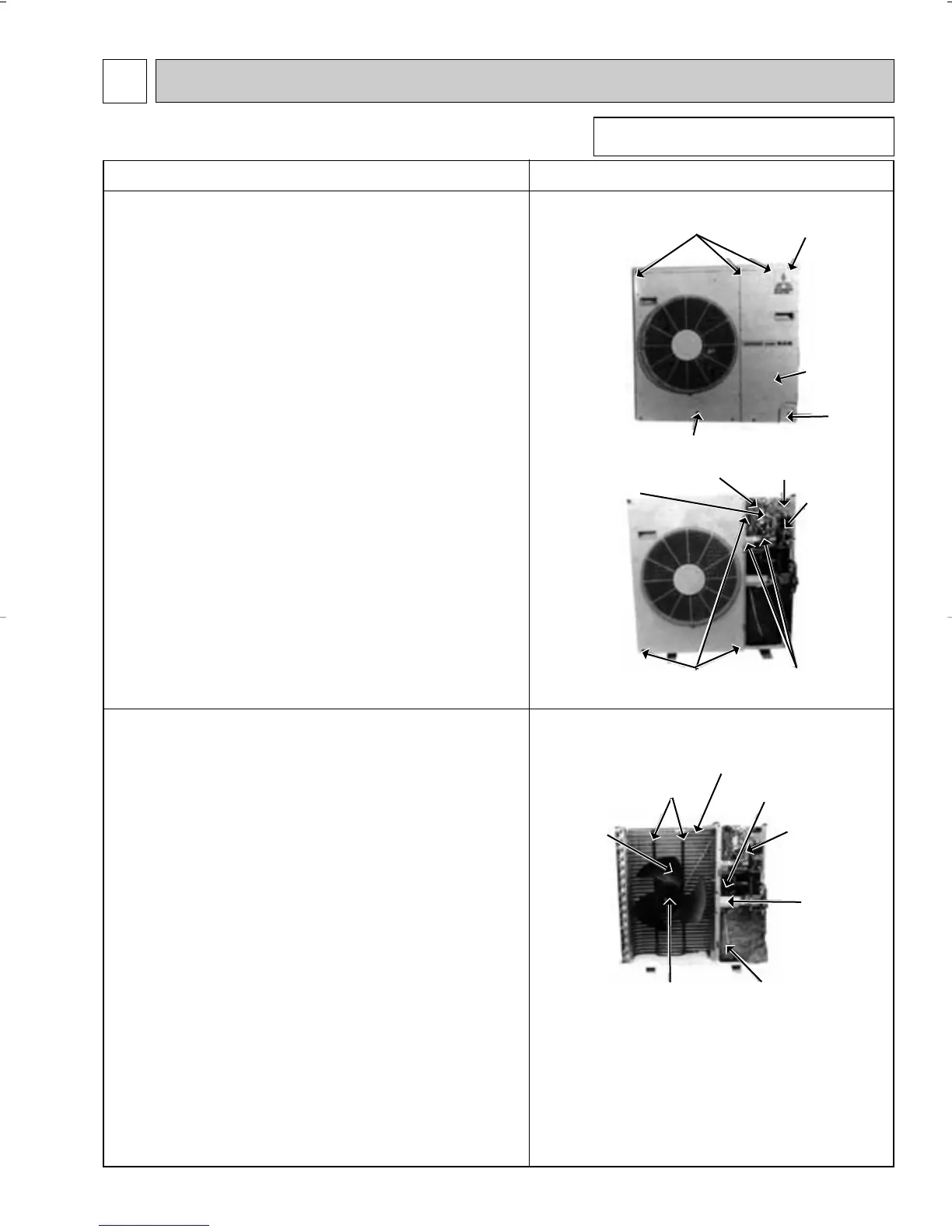

OPERATING PROCEDURE PHOTOS
1. Electrical parts
(1) Remove top panel (3 screws in front, 2 screws in rear)
(2) Remove cover panel (1 screw).
The panel is anchored by clicks to the side panel.
Remove by pulling towards you.
(3) Remove cover panel (1 screw).
The panel is anchored by clicks on the right and left sides.
After removing the screw, pull the panel down and remove it
by pulling towards you.
2. Fan motor
(1) Remove front panel (3 screws).
Open the panel to a 45 degree angle and lift to remove. The
panel is clasped at three points on the left side.
(2) Remove propeller (1 set nut).
(3) Remove fan motor (3 screws).
Remove lead connector.
Outdoor unit (PU18EK)
Photo 1
Outdoor
controller
board
Transformer
Capacitor
Contactor
Terminal block
Screws
Photo 2
Propeller
Motor support
Separator support plate
High-pressure switch
Lead
connectors
Valve bed
Crankcase heater
Propeller nut
Photo 3
Screws
Top panel
Service
panel
Cover
panel
Front panel
NOTE : All panels are clasped, and should be
removed by shifting up and down.
